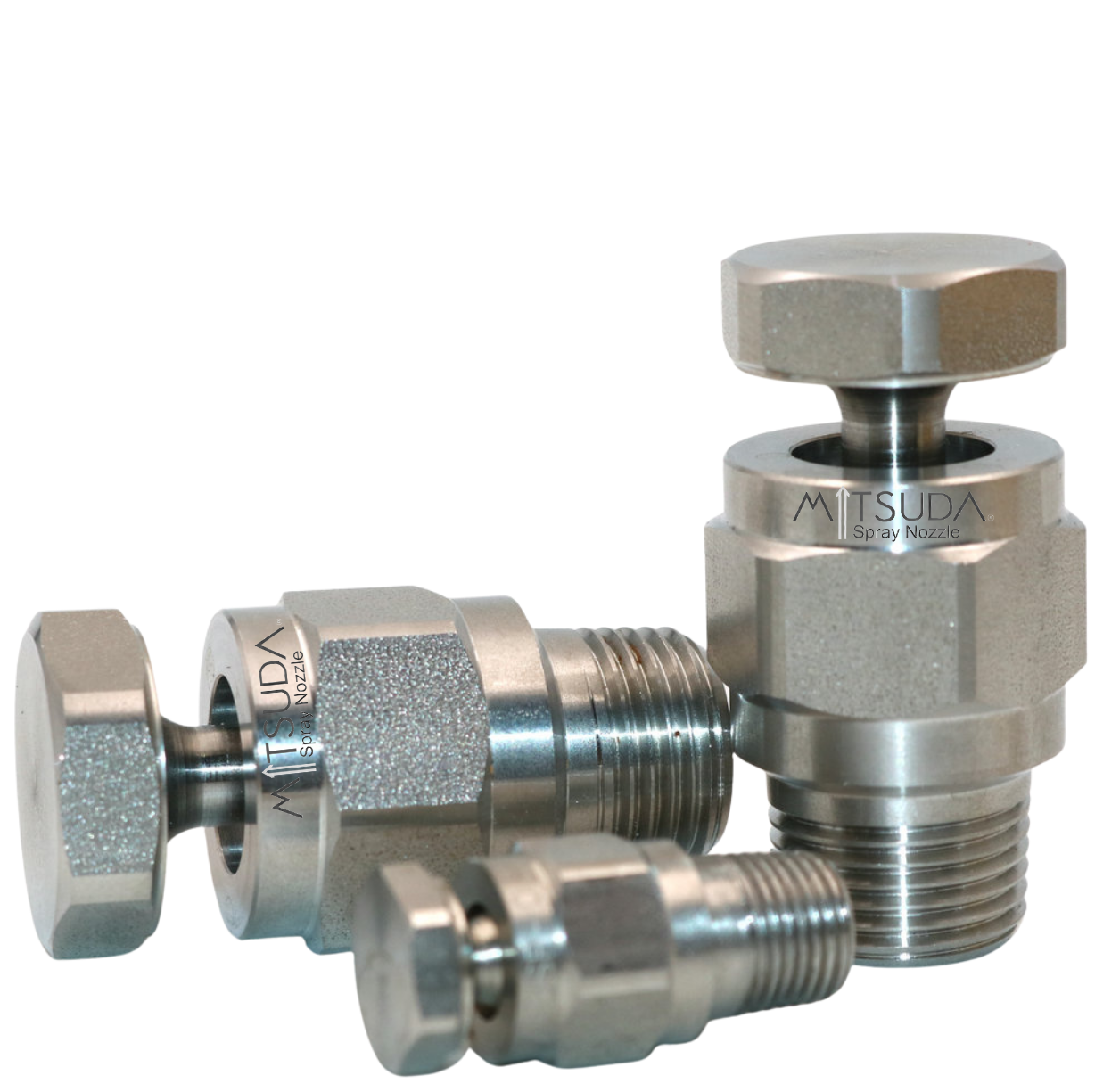

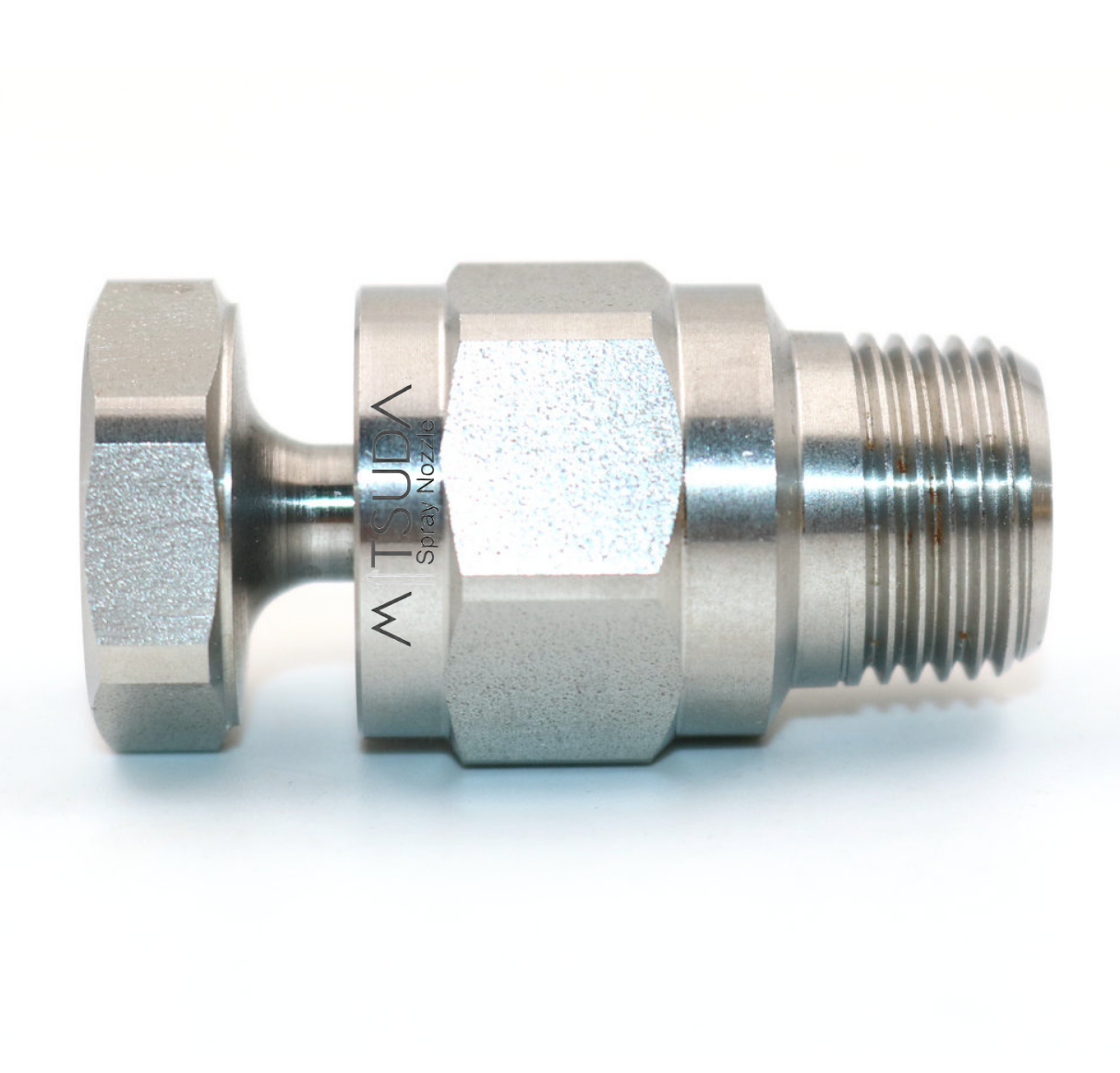

A hollow cone deflection spray nozzle is a specialized type of spray nozzle designed to produce a hollow cone-shaped spray pattern. However, unlike traditional hollow cone nozzles, these nozzles incorporate a deflection mechanism that allows for precise control over the spray angle. This deflection mechanism can be a simple baffle or a more complex internal geometry.
How They Work
Hollow Cone Formation: The initial stage of the spray formation is similar to traditional hollow cone nozzles. The fluid enters the nozzle and is imparted with a swirling motion, creating a centrifugal force that forms a hollow cone.
Deflection: Once the hollow cone is formed, a deflection element, such as a baffle or vane, alters the direction of the spray. This deflection can be adjusted to produce a wide range of spray angles.
Advantages of Hollow Cone Deflection Spray Nozzles
Adjustable Spray Angle: The primary advantage is the ability to adjust the spray angle without changing the nozzle. This provides flexibility in various applications.
Precise Control: The deflection mechanism allows for precise control over the spray pattern, ensuring optimal coverage and distribution.
Versatility: These nozzles can be used with a wide range of fluids and pressures.
Customization: Various materials and designs can be customized to meet specific application requirements.
Applications
Cooling: Electronic components, molds, and other heat-generating equipment.
Cleaning: Industrial cleaning, including removing contaminants from surfaces.
Chemical Processing: Mixing, reacting, and cooling chemicals.
Agriculture: Crop spraying and irrigation.
Fire Suppression: Delivering water or foam to the fire source.
Printing: Inkjet printing and coating applications.
Key Features and Considerations
Deflection Mechanism: The type and design of the deflection mechanism significantly impact the spray pattern and performance.
Material: Stainless steel, brass, and plastics are common materials, chosen based on the application and fluid compatibility.
Spray Angle: The spray angle can be adjusted within a specific range, depending on the nozzle design.
Flow Rate: The flow rate can be controlled by adjusting the nozzle size and operating pressure.
Droplet Size: The droplet size can be influenced by the nozzle design and operating conditions.
Wear Resistance: For abrasive applications, wear-resistant coatings or materials may be necessary.
Comparison to Traditional Hollow Cone Nozzles
The main difference between hollow cone deflection nozzles and traditional hollow cone nozzles is the ability to adjust the spray angle. Traditional nozzles have a fixed spray angle, while deflection nozzles offer more flexibility.
Conclusion
Hollow cone deflection spray nozzles offer a high degree of control and versatility, making them suitable for a wide range of applications. By understanding the principles behind their operation and the factors influencing their performance, engineers and technicians can select the optimal nozzle for their specific requirements.
