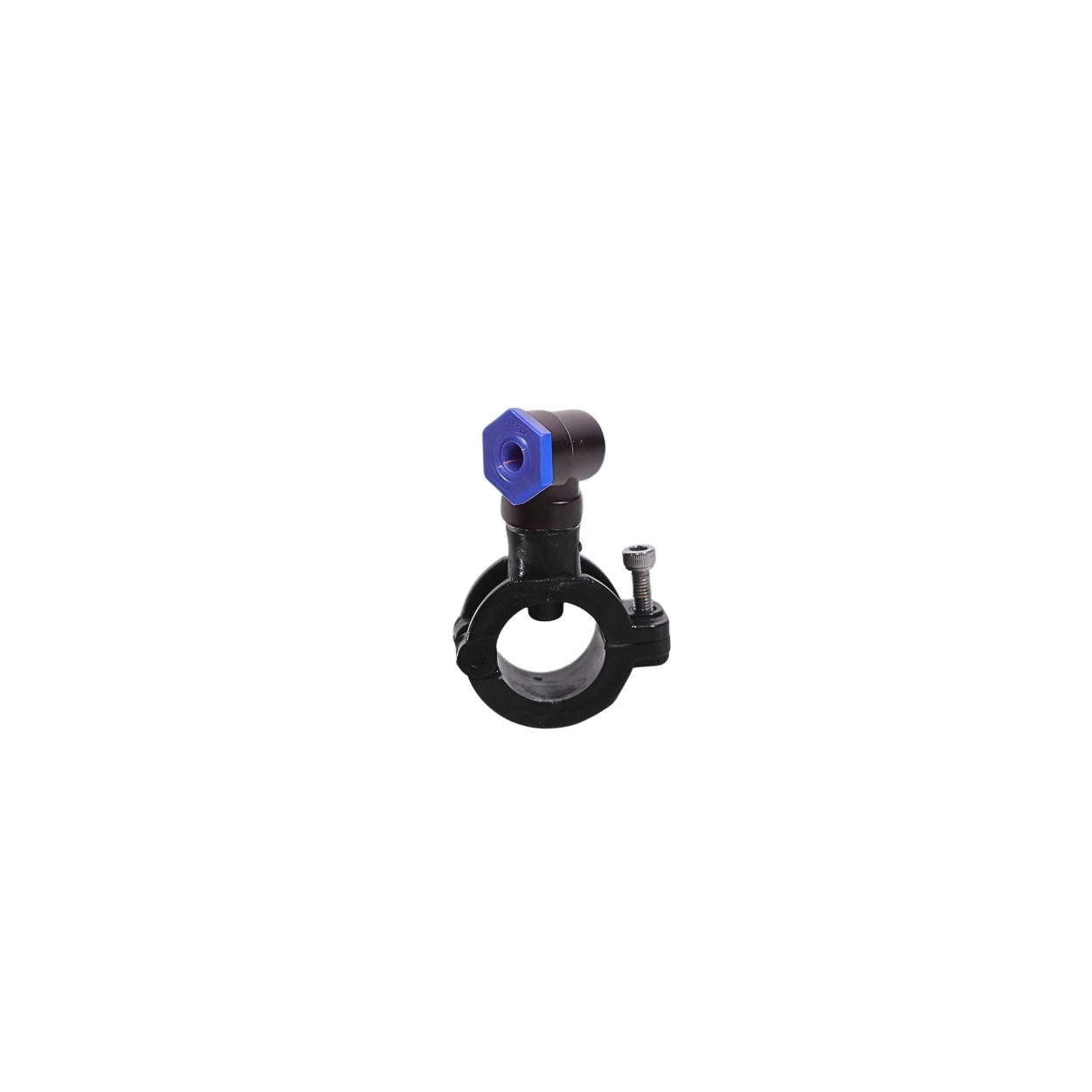

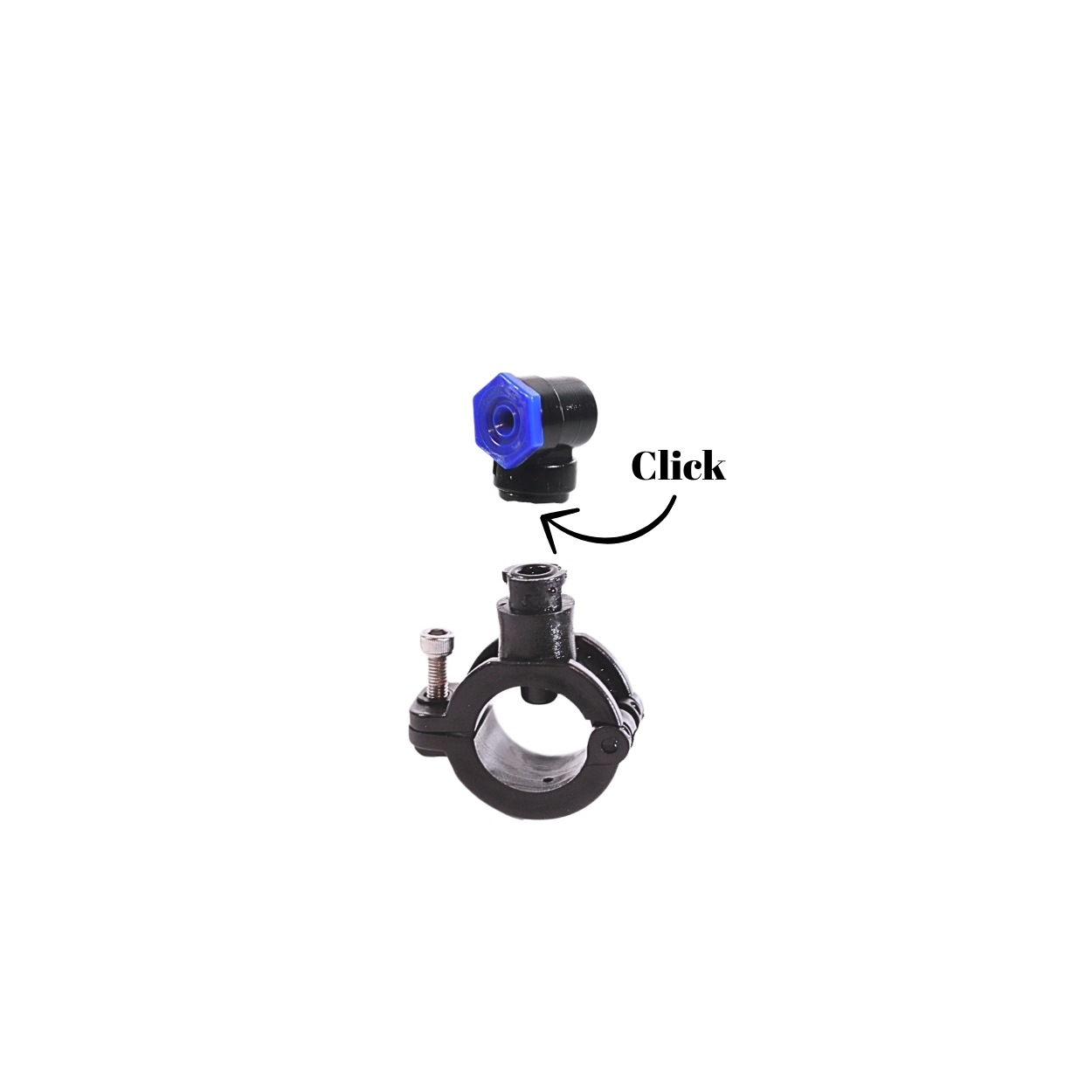

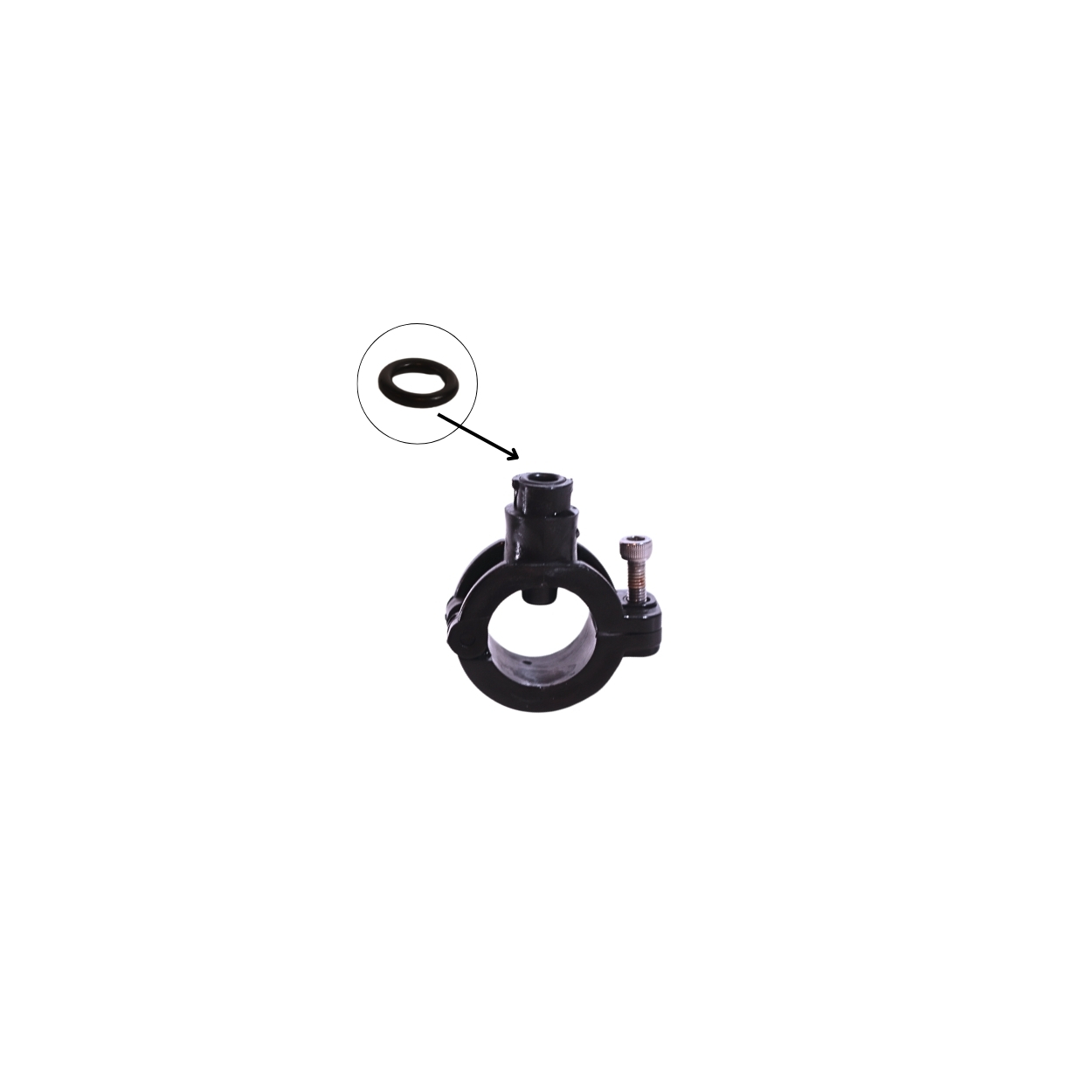

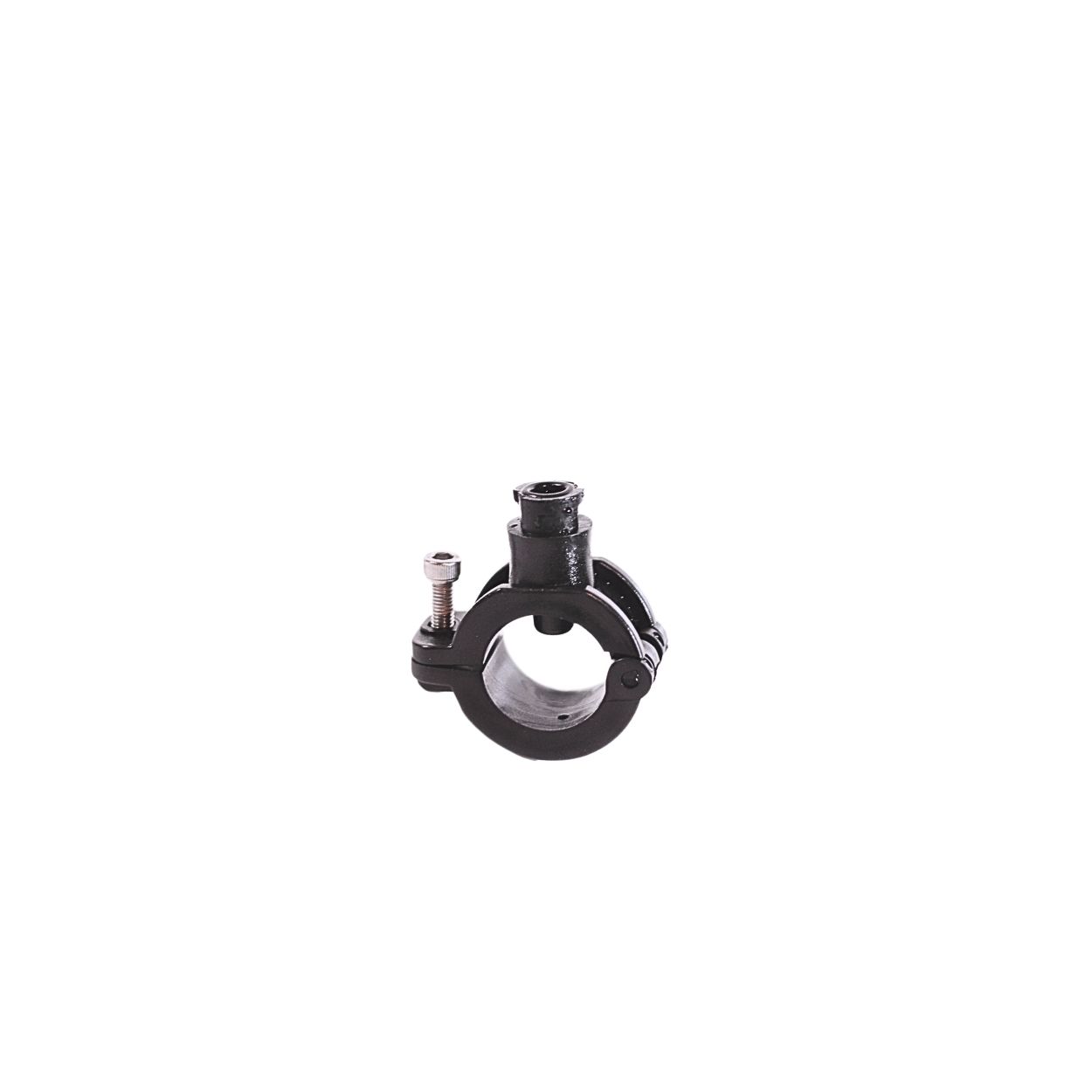

Vacuum Tank Hollowcone Nozzle

Extrusion vacuum tank spray nozzles are specialized components crucial for the cooling process within an extrusion vacuum tank. In plastic extrusion, molten plastic is forced through a die and then enters a vacuum tank where it is cooled and shaped. These nozzles play a vital role by effectively and evenly cooling the extruded material.

Key Characteristics:

Precise Spray Pattern: Designed to deliver a specific spray pattern, often a fine mist or a sheet spray, for even and efficient cooling across the entire surface of the extruded product.
High-Pressure Operation: Typically operate at higher pressures to achieve the necessary cooling rates within the vacuum environment.
Corrosion Resistance: Constructed from corrosion-resistant materials like stainless steel to withstand the potentially harsh environment within the vacuum tank and exposure to cooling fluids.
Durability: Built to withstand the high pressures, temperatures, and potential wear and tear associated with the extrusion process.
Customization: Can be customized to meet specific requirements, such as flow rate, spray angle, droplet size, and coverage area, based on the type of plastic being extruded, the desired product dimensions, and the specific needs of the extrusion process.
Benefits:

Improved Cooling Efficiency: Rapid and even cooling of the extruded product, leading to faster production cycles.
Enhanced Product Quality: Consistent cooling contributes to improved dimensional accuracy, reduced stress levels within the extruded part, and improved surface finish.
Increased Production Speed: Faster cooling allows for quicker processing times and increased production output.
Reduced Energy Consumption: Efficient cooling can minimize energy consumption in the overall extrusion process.
Applications:

Pipe Extrusion: Cooling of PVC pipes, PE pipes, and other plastic pipes.
Profile Extrusion: Cooling of window frames, door frames, and various other extruded profiles.
Sheet Extrusion: Cooling of plastic sheets and films.
Selection Considerations:

Material of the Extruded Product: The type of plastic being extruded significantly influences cooling requirements and nozzle selection.
Extrusion Process Parameters: Extrusion speed, die design, and desired product dimensions will impact the cooling demands.
Vacuum Tank Size and Configuration: The size and shape of the vacuum tank will determine the number and placement of nozzles required for optimal cooling coverage.
Cooling Medium: The type of cooling fluid used (typically water) will influence nozzle design and operating parameters.
Conclusion

Extrusion vacuum tank spray nozzles are critical components within the extrusion process. Their effective operation directly impacts product quality, production speed, and overall process efficiency. Careful consideration of factors like spray pattern, flow rate, and material compatibility during nozzle selection is essential for optimizing the cooling process and achieving desired product outcomes.

Note: This information provides a general overview. Specific nozzle designs and operating parameters will vary significantly depending on the specific extrusion process and the desired product characteristics. Consulting with experienced engineers and nozzle manufacturers is recommended for optimal nozzle selection and system design.
