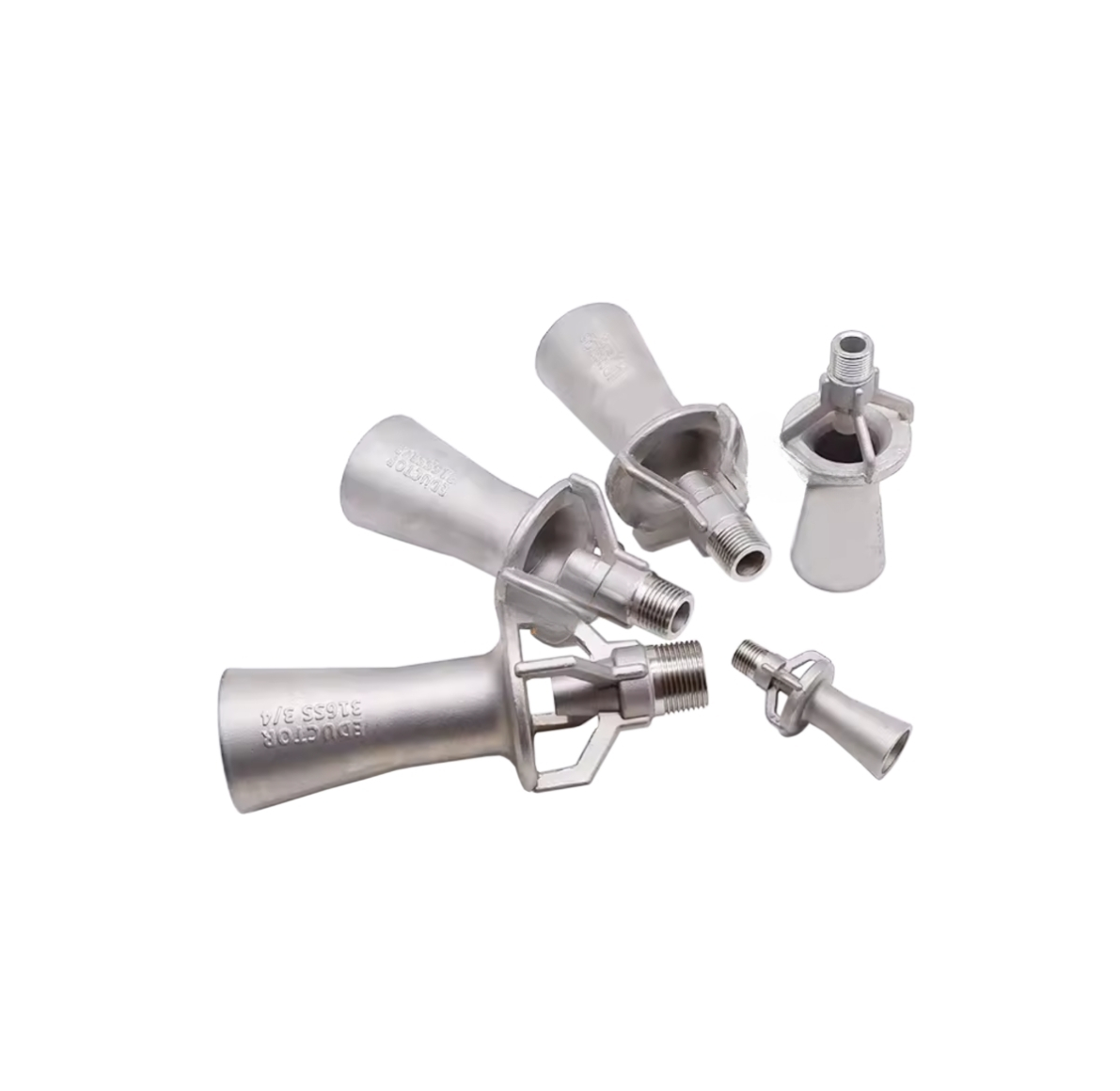

Tank Mixing Eductor Nozzle (SS)

A tank mixing eductor nozzle is a specialized device employed in fluid dynamics to facilitate the mixing of liquids within a tank or vessel. It operates on the principle of fluid dynamics, utilizing the kinetic energy of a fluid stream to create a vacuum that draws in and mixes another fluid.

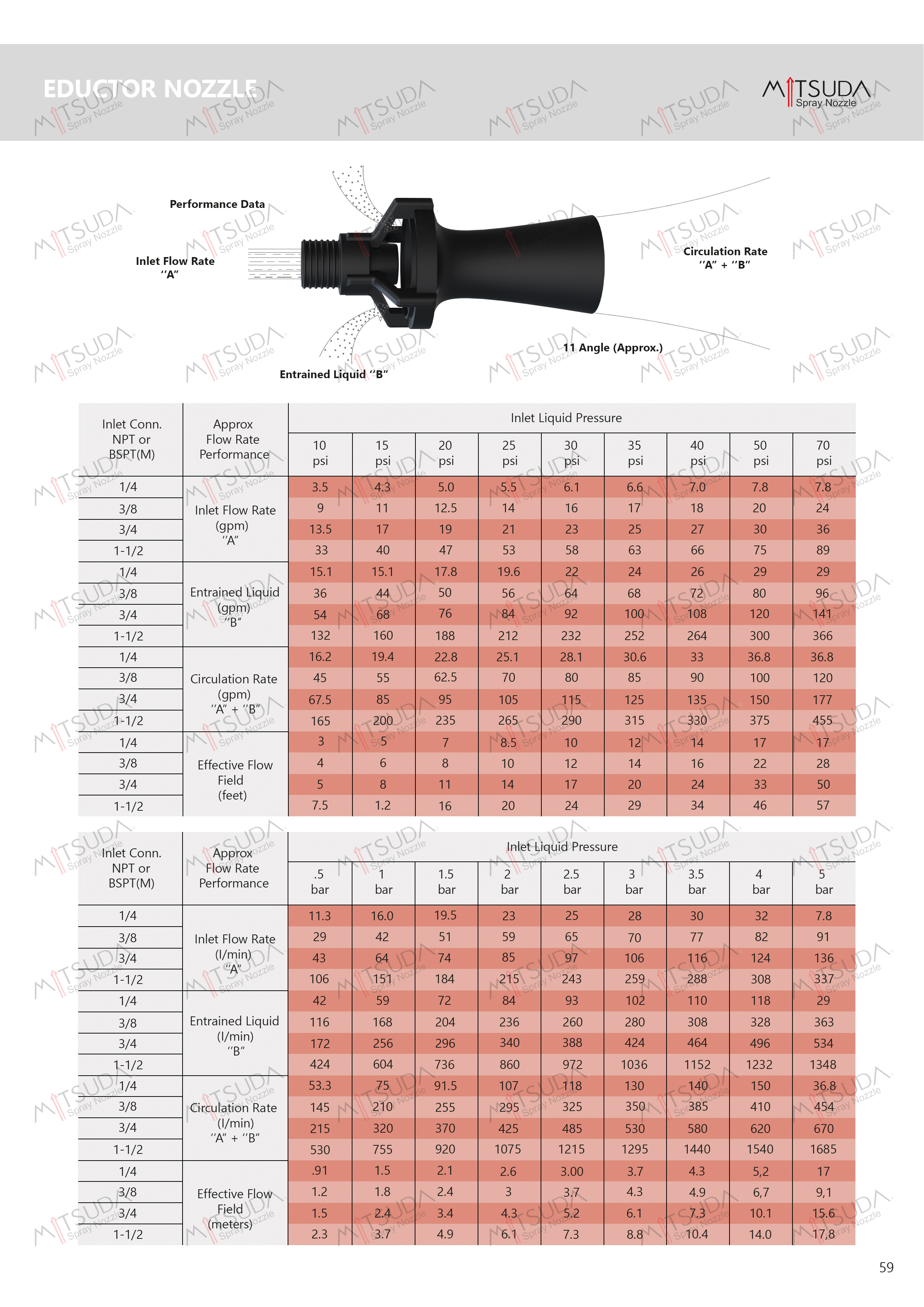

How Tank Mixing Eductor Nozzles Work
Fluid Flow: A high-velocity fluid stream (often from a pump) is directed through the eductor's nozzle.
Venturi Effect: As the fluid passes through the nozzle, it accelerates and creates a low-pressure zone or vacuum in the surrounding area, known as the Venturi effect.
Induction: The low-pressure zone created by the Venturi effect draws in a secondary fluid (liquid or gas) from another source, such as a tank or reservoir.
Mixing: The secondary fluid is entrained into the primary fluid stream, and thorough mixing occurs as the combined fluids exit the eductor.
[Image: A diagram illustrating the working principle of a tank mixing eductor nozzle]

Benefits of Tank Mixing Eductor Nozzles
Efficiency: Offers an efficient and cost-effective way to achieve homogeneous mixing.
Simplicity: No moving parts, reducing maintenance requirements.
Versatility: Can handle a wide range of fluids and flow rates.
Scalability: Suitable for both small-scale and large-scale mixing operations.
No contamination risk: Since there are no moving parts, there is minimal risk of contamination.
Applications of Tank Mixing Eductor Nozzles
Chemical Processing: Mixing chemicals, creating solutions, and diluting concentrates.
Wastewater Treatment: Mixing chemicals for treatment processes and suspending solids.
Food and Beverage Industry: Blending ingredients, homogenizing liquids, and cleaning tanks.
Pharmaceutical Industry: Mixing pharmaceutical products and creating solutions.
Pulp and Paper Industry: Mixing chemicals for pulp and paper production.
Key Considerations for Selection
Fluid Properties: Viscosity, density, and corrosiveness of the fluids.
Tank Size and Geometry: Dimensions of the tank and the location of the nozzle.
Required Mixing Intensity: The desired level of mixing and turbulence.
Flow Rate: The required flow rate of the primary and secondary fluids.
Material Compatibility: Compatibility of the nozzle material with the fluids being handled.

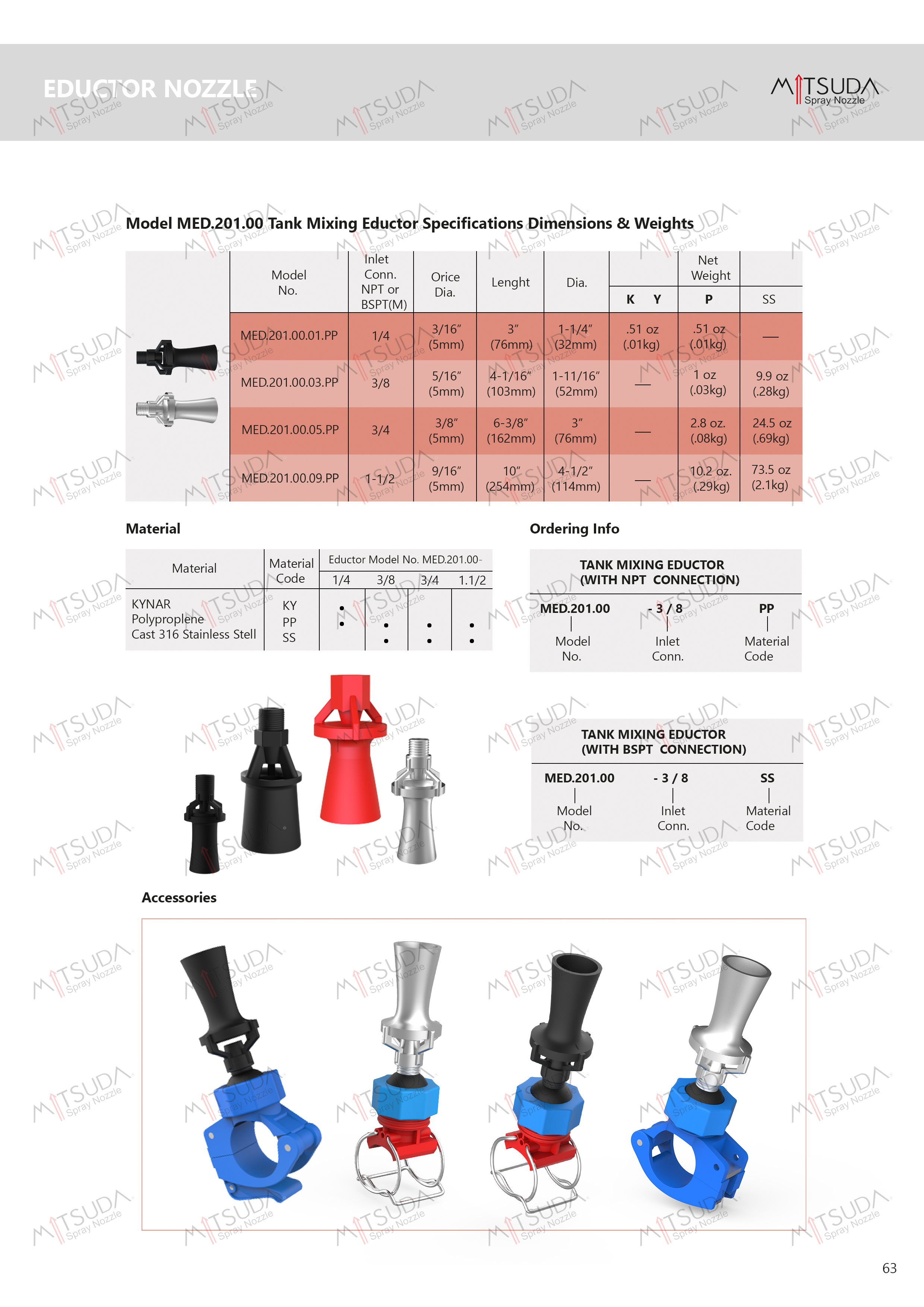

Design Parameters of Eductor Nozzles
Nozzle Throat Diameter: Determines the flow rate and suction capability.
Convergence Angle: Affects the pressure drop and mixing intensity.
Divergence Angle: Influences the flow pattern and mixing efficiency.
Material of Construction: Chosen based on fluid compatibility and corrosion resistance.
Advantages over Mechanical Agitators
Lower Maintenance: No moving parts to wear out or replace.
Easier Installation: Typically requires fewer modifications to the tank.
Less Noise: Generally quieter than mechanical agitators.
No Seal Issues: Eliminates the need for mechanical seals, which can leak.
Limitations
Limited Mixing Intensity: May not be suitable for highly viscous fluids or applications requiring very high shear rates.
Sensitivity to Flow Rate: Performance can be affected by changes in the flow rate of the primary fluid.
Potential for Cavitation: If the pressure drop is too high, cavitation can occur, reducing efficiency and causing damage.
Conclusion
Tank mixing eductor nozzles offer a simple, efficient, and reliable solution for a wide range of mixing applications. By understanding the principles of operation and carefully selecting the appropriate nozzle design, engineers can effectively utilize this technology to improve process efficiency and product quality.
