Hollow Cone Nozzle: Applications, Working Principle, and Industrial Advantages

Introduction

The Hollow Cone Nozzle is one of the most widely used spray nozzles in industrial applications due to its ability to produce a fine, ring-shaped spray pattern. Thanks to its unique design, this nozzle ensures efficient liquid distribution with minimal fluid consumption, making it ideal for cooling, gas scrubbing, dust suppression, and chemical spraying processes.

In this article, we will explore the working principle, design features, advantages, and main application areas of hollow cone nozzles.

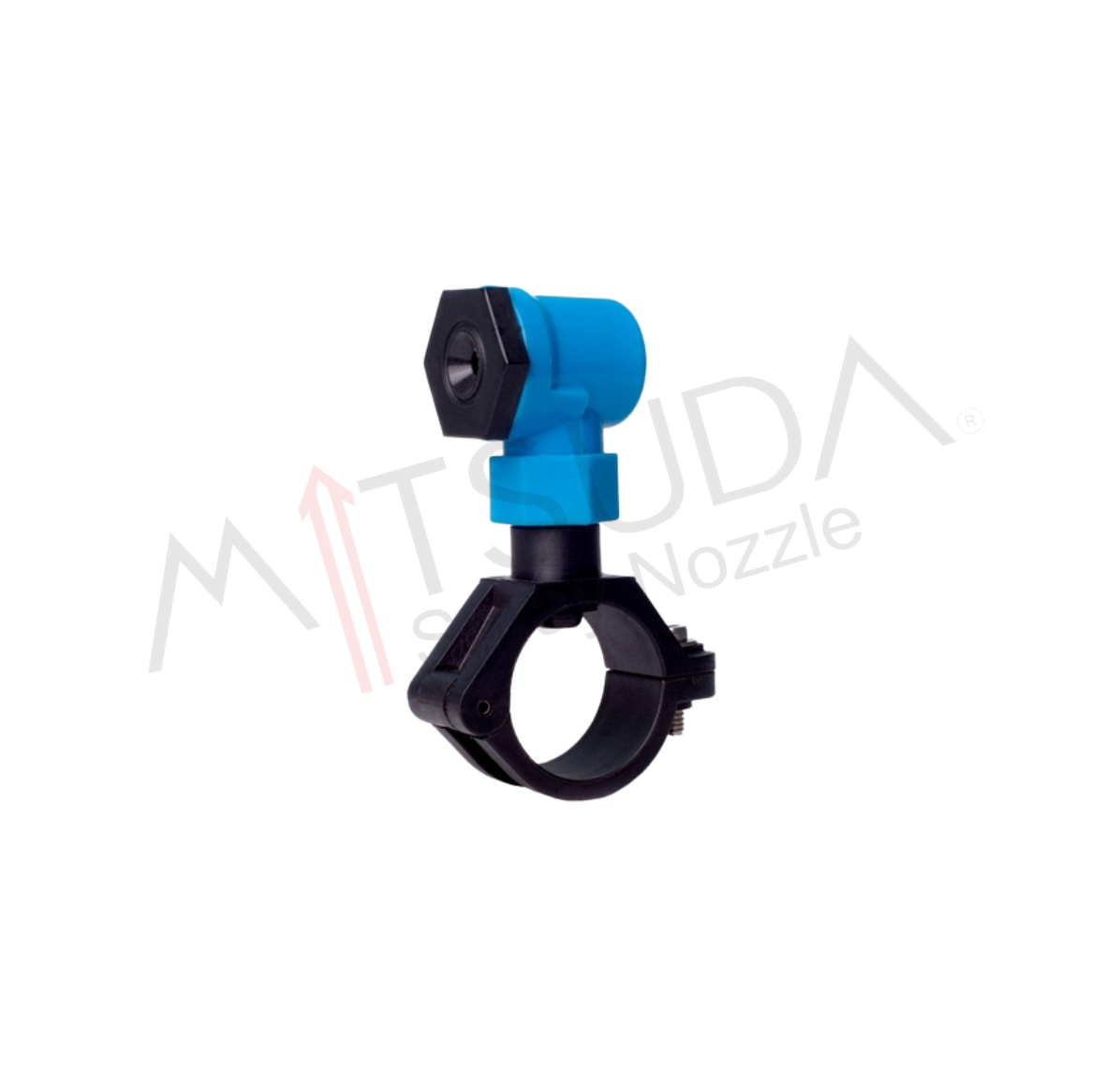

Working Principle of Hollow Cone Nozzles

The hollow cone nozzle generates a ring-shaped spray pattern by directing liquid through a specially designed swirl chamber or spiral insert.

• Swirl chamber design: The liquid enters the nozzle tangentially, creating a swirling motion. This motion forces the liquid outward, resulting in a hollow circular spray pattern.

• Spray angle: Typically ranges from 30° to 120°, depending on the nozzle design.

• Droplet size: Produces fine to medium droplets, which are crucial in applications requiring large surface coverage with low liquid usage.

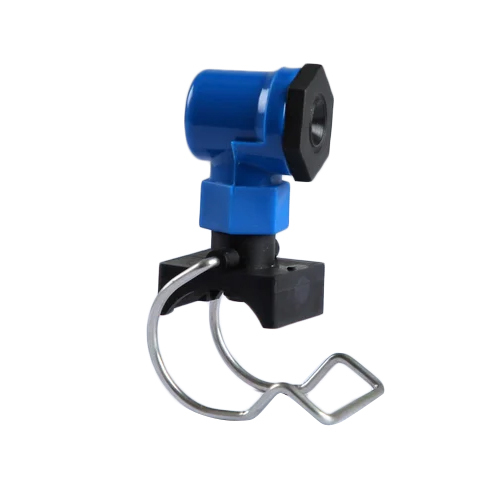

Key Features

1. Spray Pattern: Hollow ring with even distribution.

2. Flow Rates: Available in low to high flow capacities.

3. Spray Angles: Wide range from 30° up to 120°.

4. Materials: Stainless steel, brass, ceramic, and plastic (PP, PVDF) for chemical resistance.

5. Connection Sizes: Standard thread types like 1/8”, 1/4”, 1/2”, and more.

Advantages of Hollow Cone Nozzles

• Efficient Coverage: Perfect for applications that require coverage of large surface areas with minimum liquid.

• Fine Atomization: Produces fine droplets that increase evaporation and cooling efficiency.

• Reduced Consumption: Saves liquid in spraying processes.

• Versatility: Suitable for both low-pressure and high-pressure systems.

• Clog-Resistant Options: Certain models include wide free passages to prevent clogging.

Industrial Applications

1. Cooling and Gas Scrubbing

Hollow cone nozzles are widely used in cooling towers and gas scrubbing systems. Fine mist helps absorb heat and neutralize harmful gases.

2. Dust Suppression

In industries like mining, cement, and bulk material handling, hollow cone nozzles effectively control dust particles by binding them with fine droplets.

3. Chemical Processing

Used in chemical reactors and spraying systems where accurate chemical dosing and distribution are required.

4. Agriculture

Hollow cone spray nozzles are popular in crop protection, ensuring uniform pesticide or fungicide coverage with less water.

5. Fire Protection

They can also be used in fire suppression systems, especially where mist cooling is required.

Choosing the Right Hollow Cone Nozzle

When selecting a hollow cone nozzle, consider:

• Required spray angle and flow rate

• Operating pressure (low, medium, high pressure)

• Material compatibility with the liquid

• Resistance to wear and clogging

Conclusion

The Hollow Cone Nozzle is a versatile and reliable component in many industrial processes. With its ability to produce a uniform hollow spray pattern, fine droplets, and efficient liquid distribution, it is indispensable for cooling, dust suppression, gas scrubbing, agriculture, and fire protection applications.

By choosing the correct spray angle, flow rate, and material, industries can achieve maximum efficiency and long service life from their nozzle systems.
