Split Eyelet: A split eyelet is a hollow, cylindrical fitting with a slot running lengthwise. It's designed to be inserted into a pre-drilled hole in the pipe.
Nozzle Connection: The spray nozzle is attached to the split eyelet, either by threading or by other means depending on the specific nozzle design.

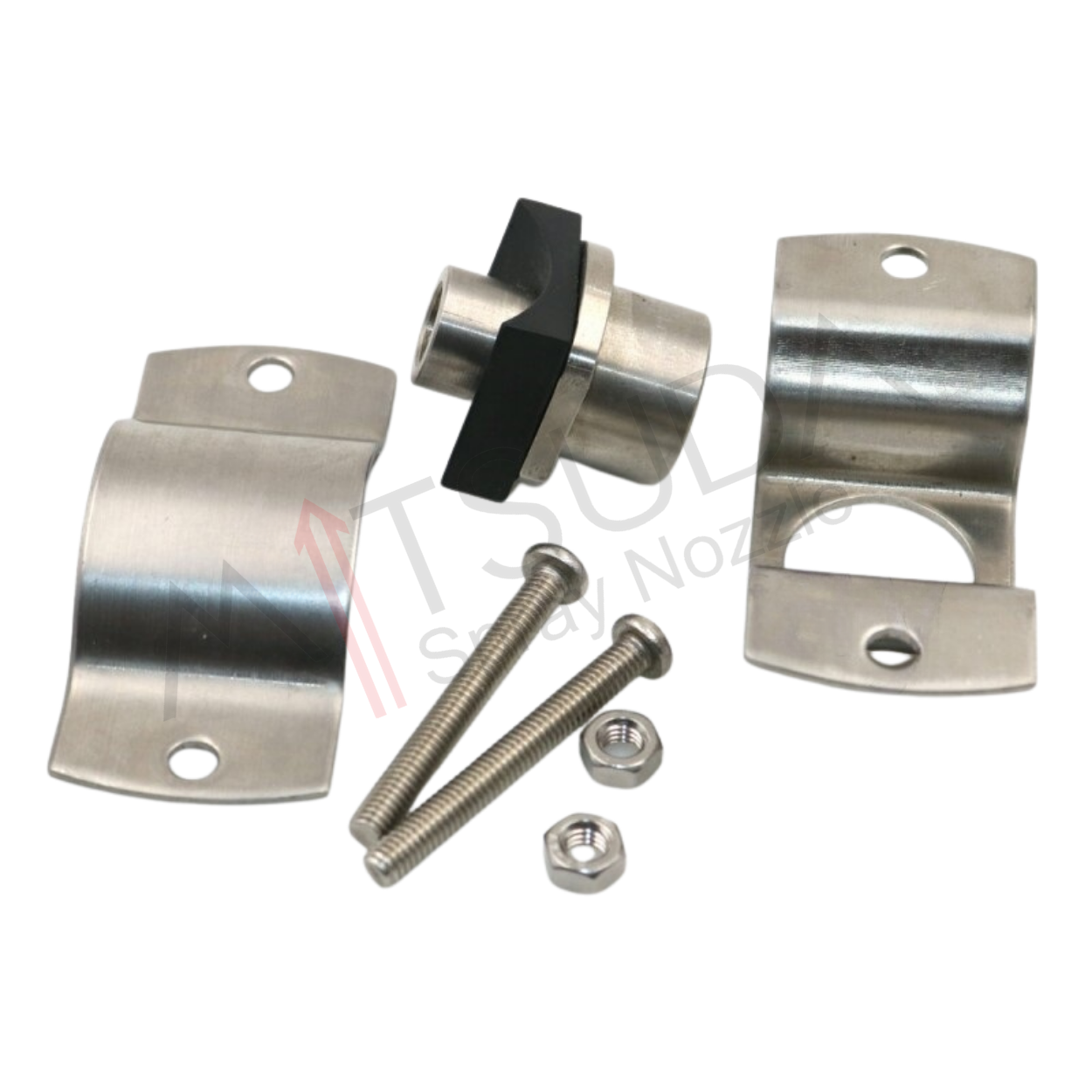

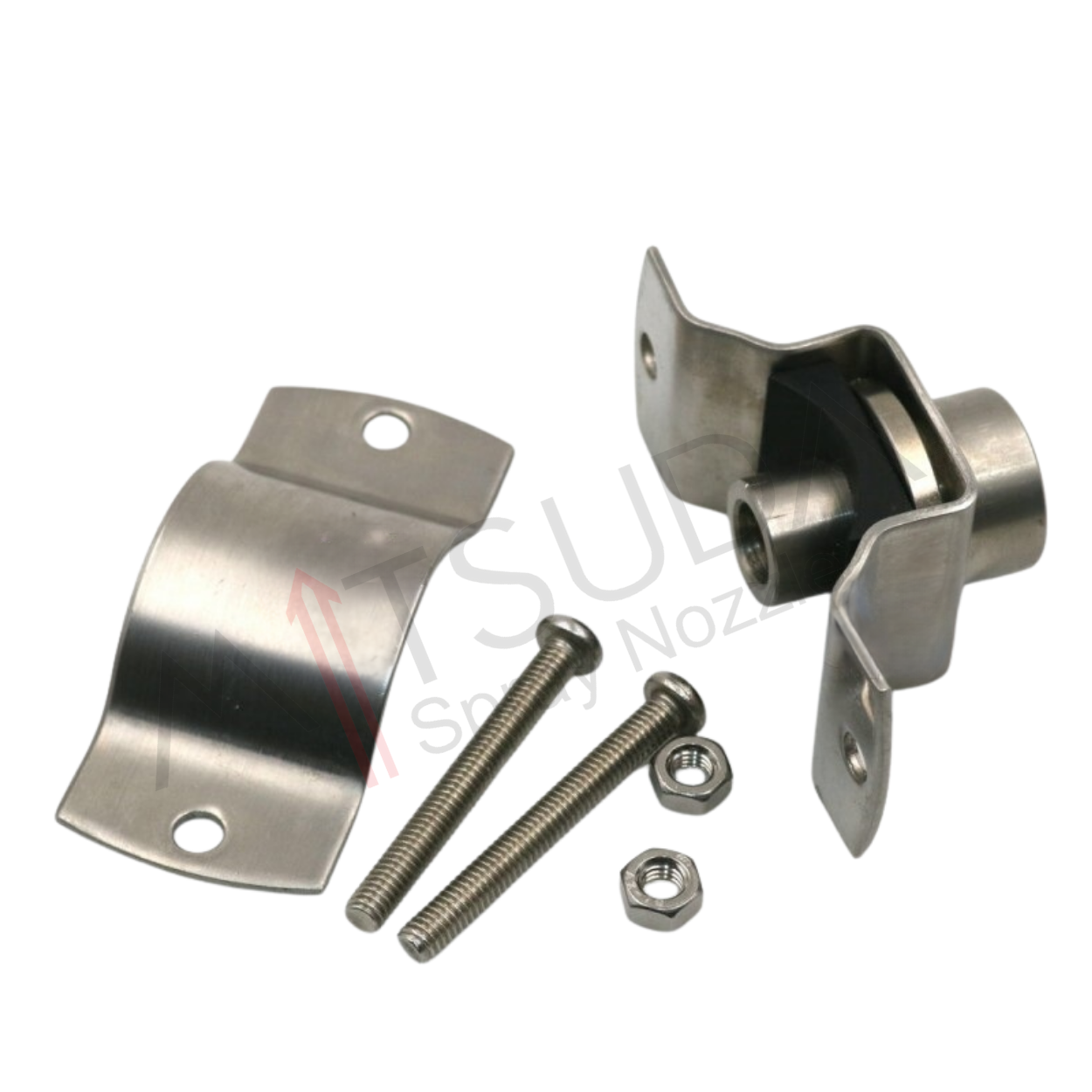

Clamp Assembly: A clamp assembly, typically consisting of a band and a tightening mechanism (screw, bolt, or lever), is placed around the pipe and the split eyelet.

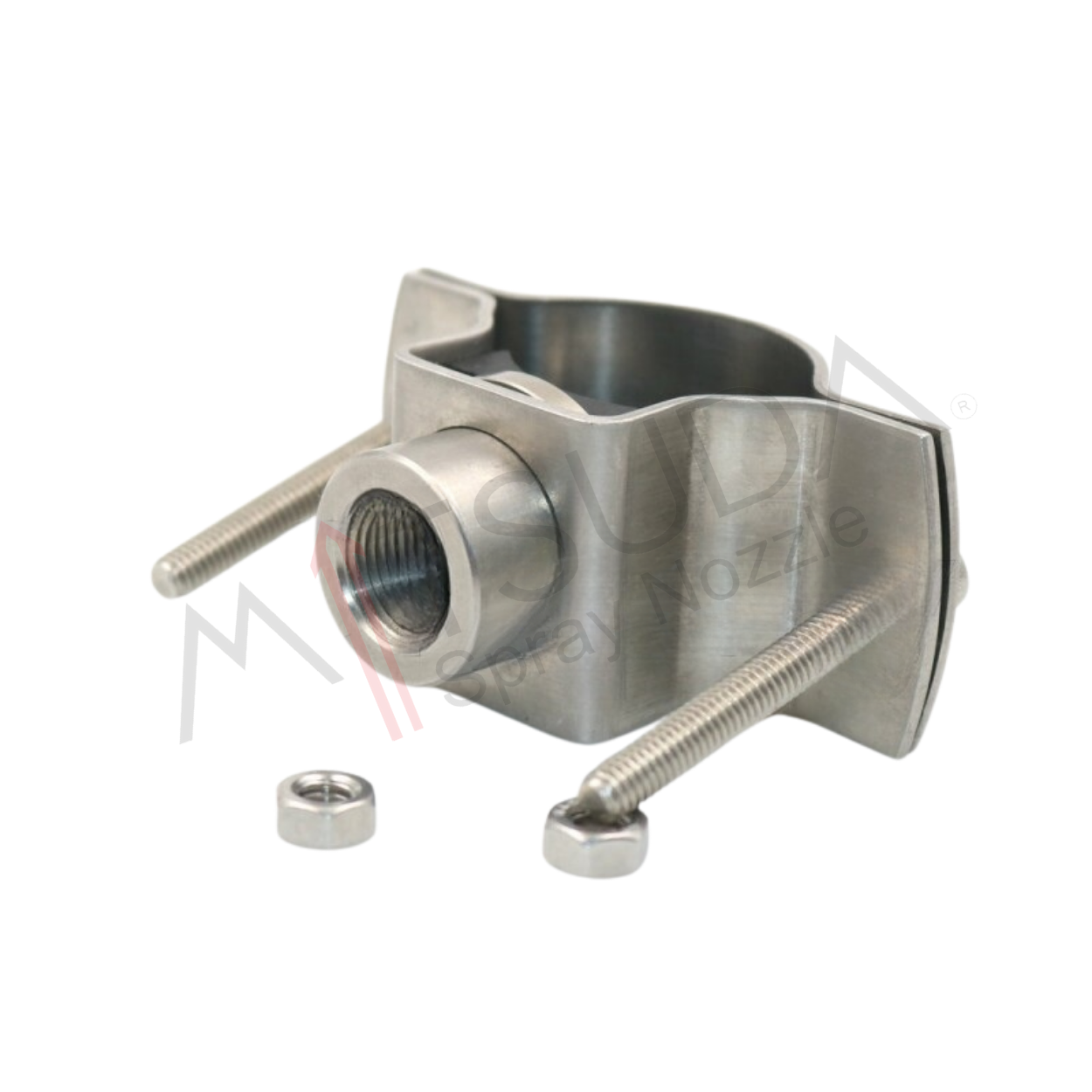

Securing: The clamp is tightened, compressing the split eyelet against the inside of the pipe. This creates a secure and leak-proof connection for the nozzle.
Key Advantages:
Secure Mounting: Provides a strong and reliable hold on the nozzle, preventing dislodgement during operation.
Versatility: Can be used with a wide range of pipe sizes and nozzle types.
Ease of Installation: Relatively easy to install and remove compared to some other mounting methods.
Durability: Typically made from durable materials like stainless steel to withstand harsh conditions.
Applications:
Agriculture: Widely used in agricultural spraying systems, including boom sprayers, ground sprayers, and airblast sprayers.
Industrial Spraying: Employed in various industrial applications, such as paint spraying, coating application, and chemical spraying.
Choosing the Right Split Eyelet Connector Clamp:
Compatibility: Select a clamp that is compatible with the specific pipe size and nozzle type you are using.
Material: Choose a clamp made from materials that are resistant to corrosion and compatible with the chemicals being sprayed.
Strength: Ensure the clamp is strong enough to withstand the pressures and vibrations encountered during operation.
