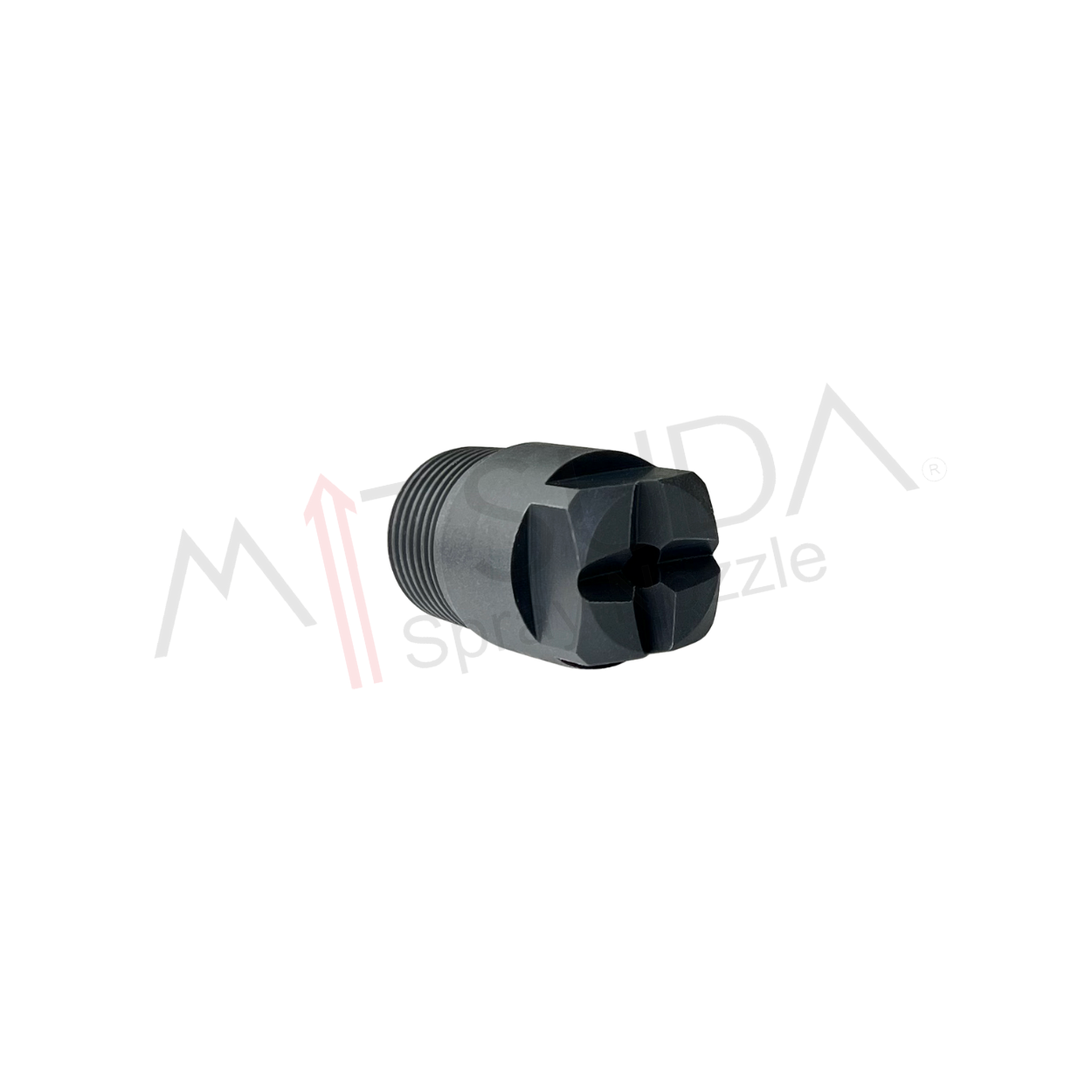

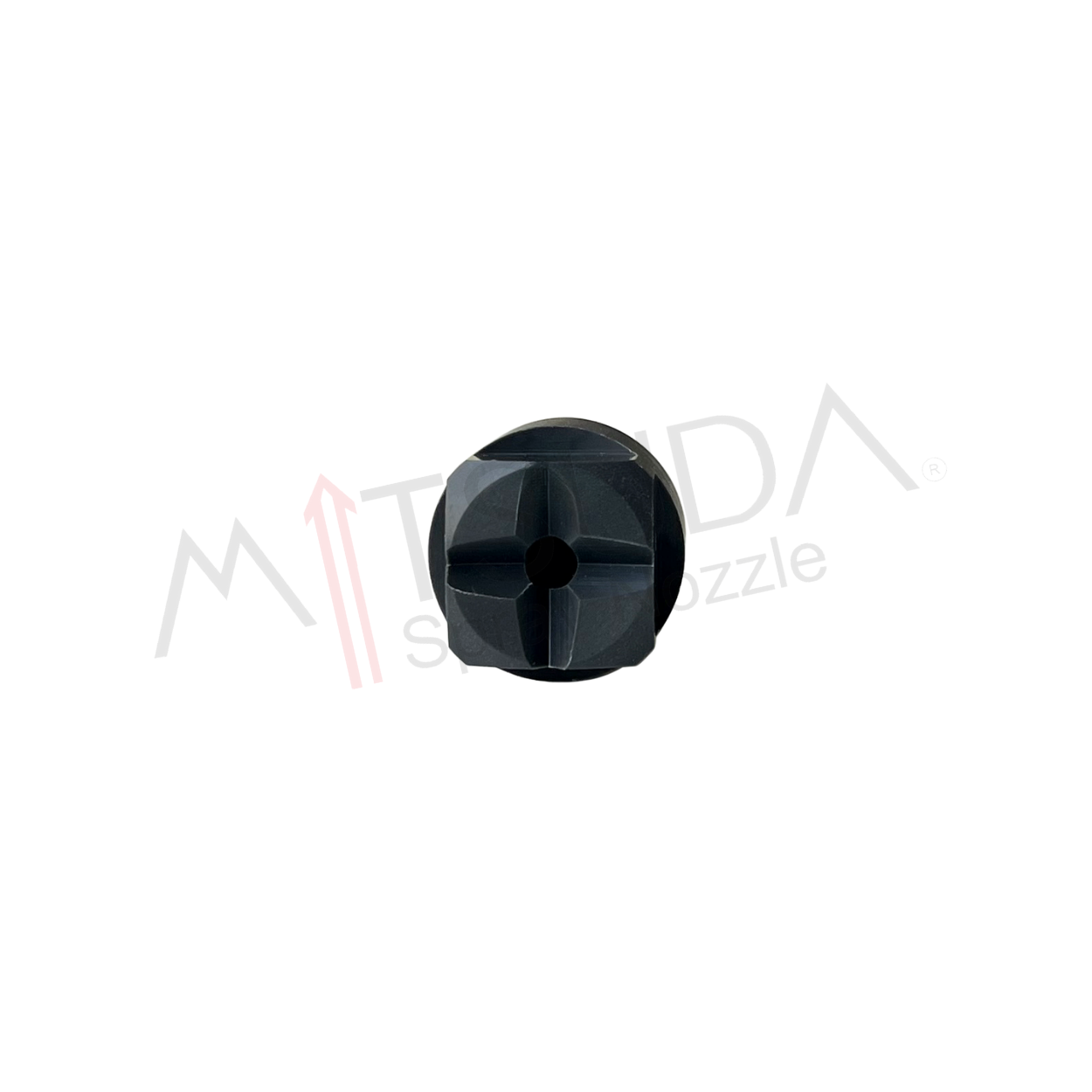

Square Type Full Cone Nozzle

Square Type PVC/PP Plastic Solid Full Cone Jet Nozzle is commonly used in vegetable/fruit washing and cleaning processes. These nozzles ensure that food is washed properly by spraying liquids with high efficiency and precision. Here is detailed information about the technical specifications and usage areas of these nozzles:

Square Type PVC/PP Plastic Solid Full Cone Jet Nozzle Features

Material:

Made of PVC (Polyvinyl Chloride) or PP (Polypropylene) material. These materials offer high chemical resistance and durability. PVC and PP are frequently used in food contact products because they are non-toxic and hygienic materials.
Atomization Type:

Full Cone Jet: These nozzles atomize the liquid into a full conical shape and perform an effective washing process by evenly distributing the water over a wide area. This atomization thoroughly cleans the surfaces of vegetables and fruits.
Outlet Mouth Angle:

Outlet Angle: It usually varies between 60° and 90°. This angle ensures that the nozzles create a smooth spray pattern, so dirt on the food is effectively removed.
Flow Rate:

Varies between 1 L/min – 15 L/min. The flow rate determines how the nozzles are used and how effective the washing process is. High flow rates allow larger surfaces and more material to be cleaned quickly.
Pressure:

Has a working pressure between 2 bar – 6 bar. This pressure allows the nozzles to atomize the liquid properly and spread it over a wide surface. These pressure levels are sufficient for effective washing of vegetables and fruits with water.
Spray Type:

Solid Full Cone Jet: This type provides the washing and cleaning process by intensively bringing the liquid together and spraying it steadily. The liquid spreads effectively over a wide area after exiting the nozzles.
Operating Temperature:

Can operate at temperatures ranging from -10°C to 60°C. These nozzles provide efficient results especially in cold water washing processes. Vegetable and fruit washing processes are usually done with cold water, so it is important for the nozzles to work efficiently at low temperatures.
Liquid Application:

Can be used with various liquids such as water, soapy water or acidic/alkaline solvents. These nozzles are suitable for more challenging cleaning processes as they can also be used with chemical cleaning agents.
Dimensions:

Usually has standard connection sizes such as 1/4 inch, 1/8 inch. This allows the nozzles to be easily installed in various machines.
Efficiency and Effectiveness:

Spray Area: Square type nozzles usually provide an even water distribution in an area of 10 cm x 10 cm. This feature ensures that each vegetable or fruit is cleaned equally.
Even Spraying: These nozzles provide high efficiency cleaning by evenly spreading the liquid over a wide area.
Advantages of Square Type Plastic Nozzle:

Fast and Effective Cleaning: Full cone jet nozzles ensure fast and effective washing of vegetables and fruits with high pressure and uniform liquid distribution.

Chemical Resistance: PVC and PP materials are resistant to various acidic and alkaline solvents, which ensures that the nozzles are durable even in long-term use.

Hygienic and Healthy Use: As they are materials used in the food industry, these nozzles comply with food safety standards and provide a cleaning free from contaminants.

Low Cost Maintenance: PVC/PP materials are more economical than other materials such as stainless steel, are long-lasting and require low maintenance.

Various Applications: It can be used not only for vegetable and fruit washing, but also for general cleaning and hygiene processes.

Usage Areas:

Vegetable and Fruit Washing: It is used to clean dirt, pesticide residues and other foreign substances from the surface of agricultural products. These nozzles provide high efficiency for food safety.

Food Production Facilities: It is ideal for cleaning machines, conveyor belts and other surfaces in production lines in food processing facilities.

Washing Facilities: It is also used in industrial washing systems for cleaning large quantities of vegetables and fruits.

Agriculture Sector: It is widely used in farms, especially in places where products are washed under hygienic conditions.

Conclusion:

Square Type PVC/PP Plastic Solid Full Cone Jet Nozzle is an extremely effective and efficient solution in vegetable and fruit washing processes. With high-quality materials and appropriate technical specifications, these nozzles are an ideal tool to meet food safety and cleaning requirements. Thanks to its high flow rate, suitable pressure range and wide spray area, it provides perfect cleaning for all types of agricultural products. These nozzles, which are both economical and durable, are widely preferred in the food processing and agriculture sectors.
