Short Flat Fan Nozzle

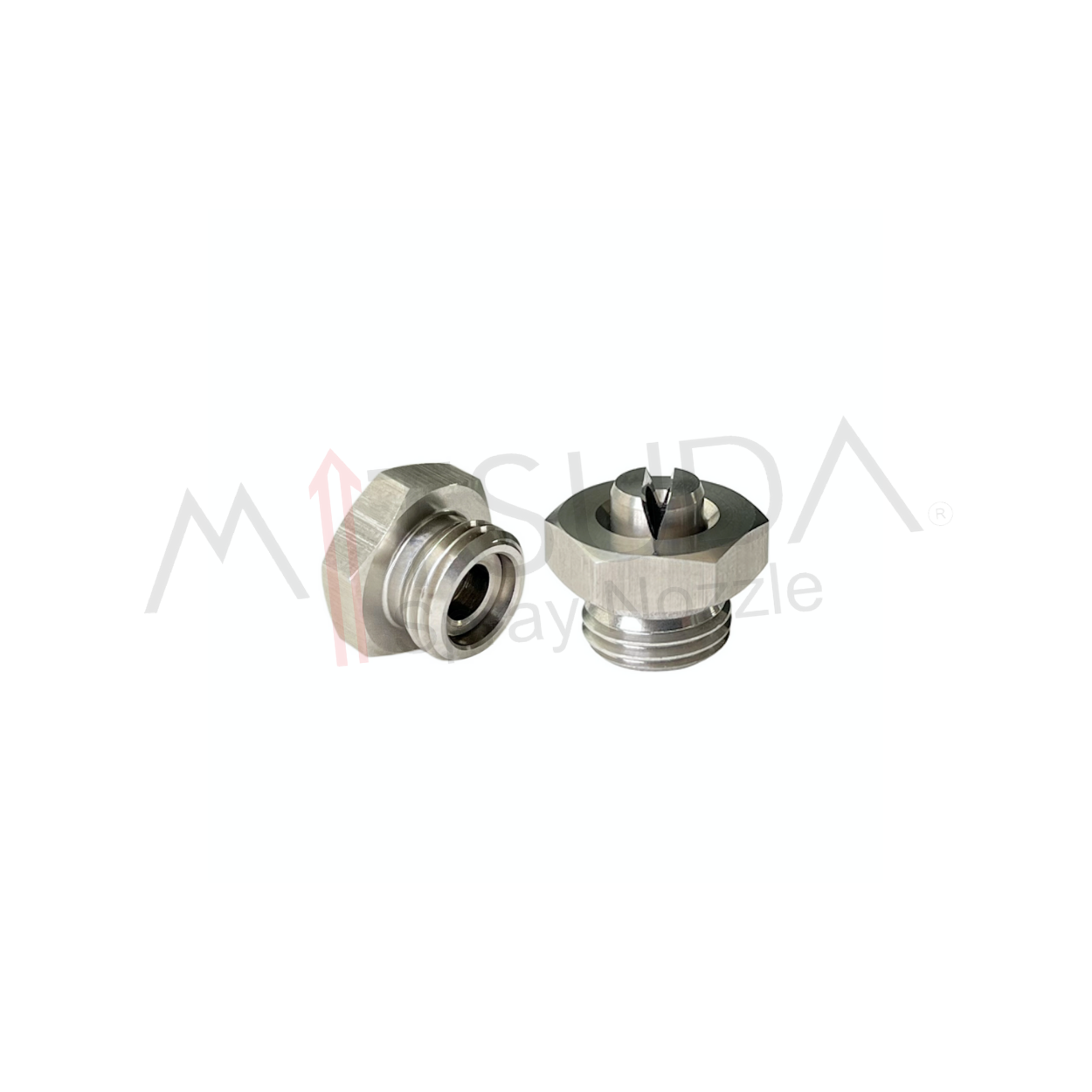

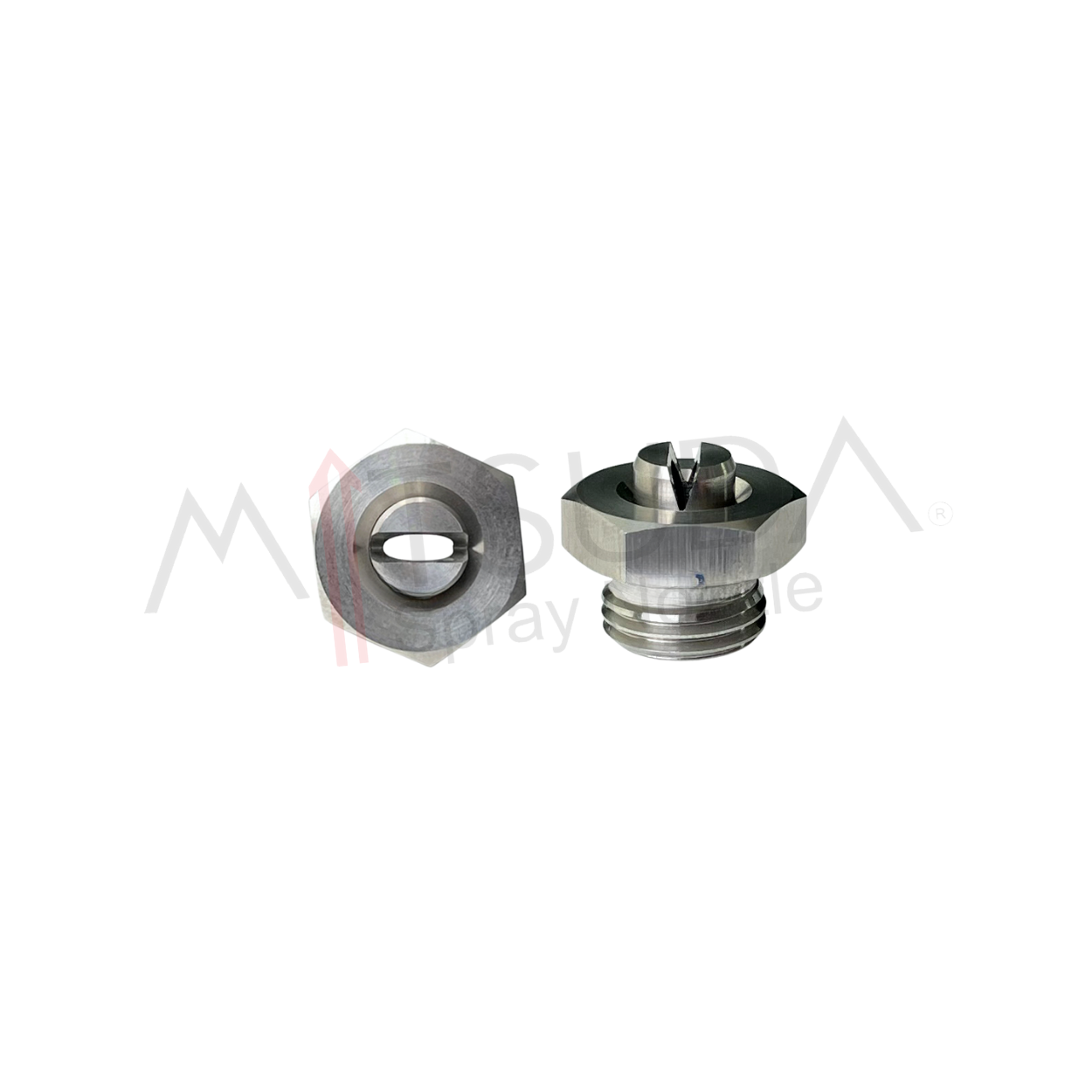

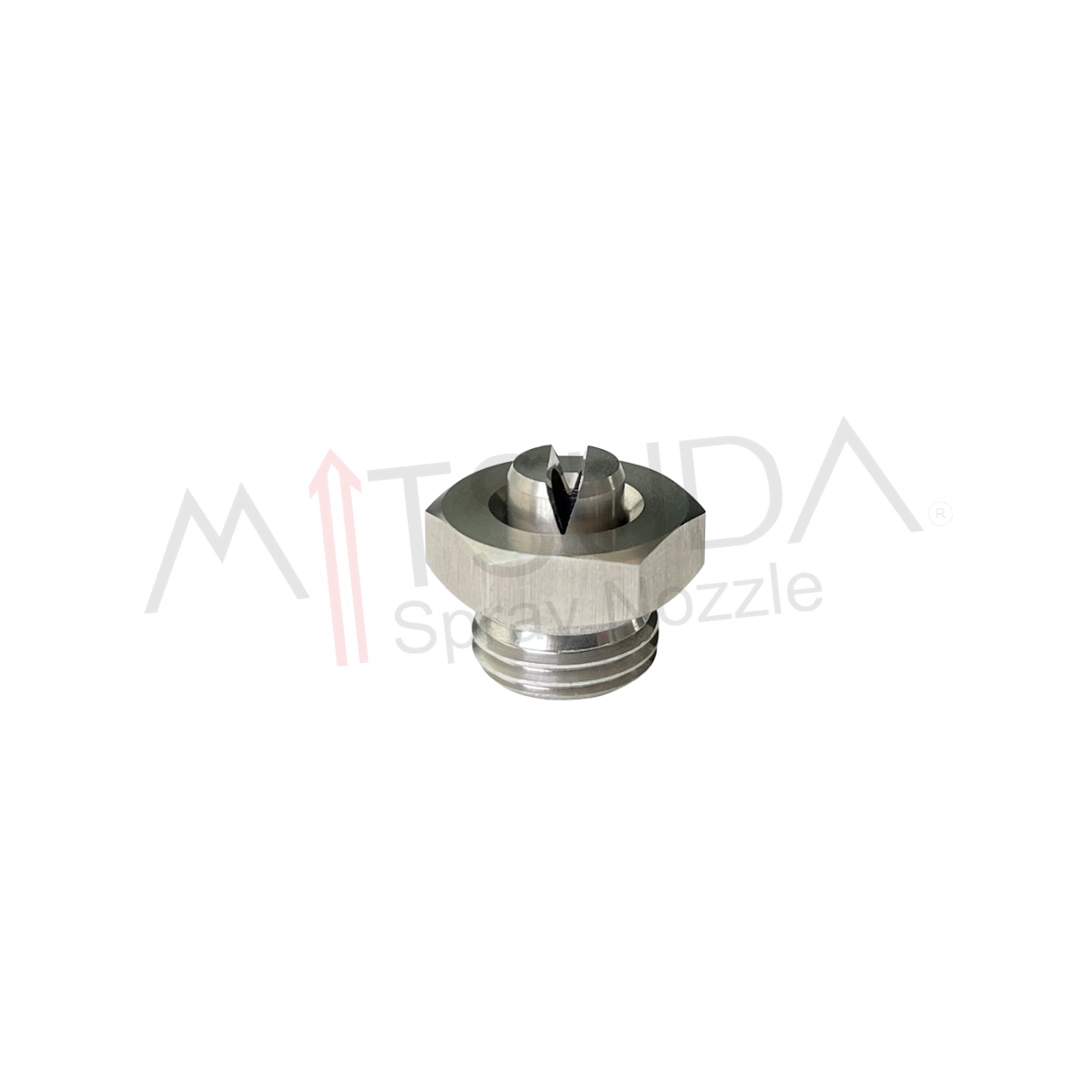

Customized 120-Degree Flat Fan Jet Spray Nozzle

A customized 120-degree flat fan jet spray nozzle is a high-efficiency nozzle designed for evenly distributing liquids or gases over wide areas. Commonly used in industrial cleaning, cooling, humidification, and spraying applications, these nozzles offer superior performance. Stainless steel embedded/threaded short flat fan nozzles provide durability and longevity. Leading spray flat jet applications ensure efficient and homogeneous fluid distribution.

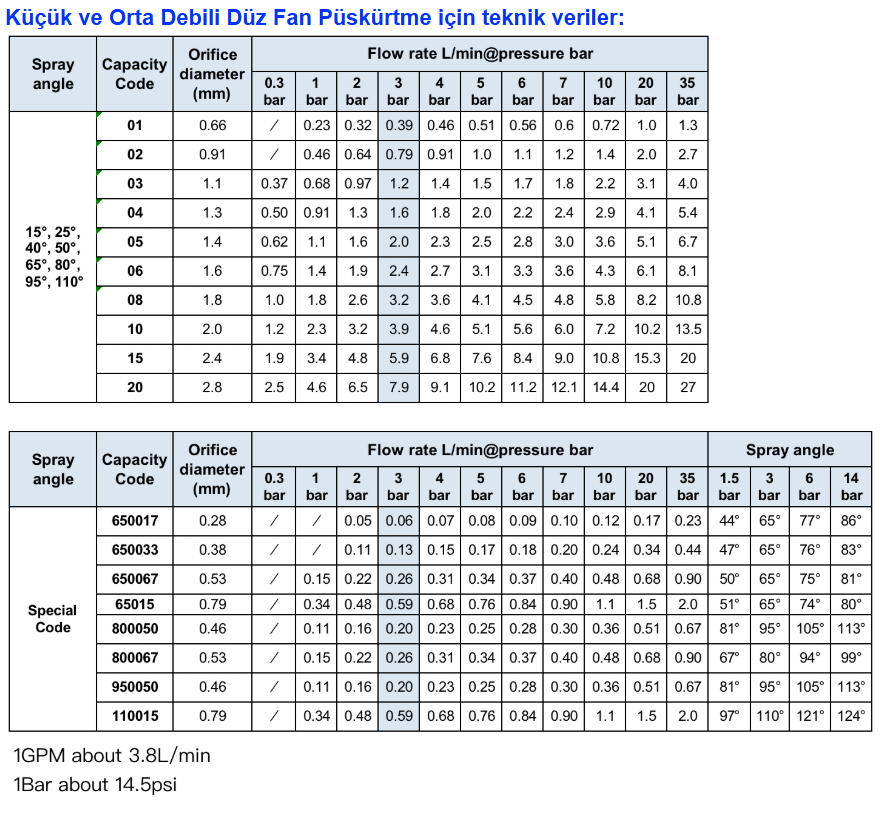

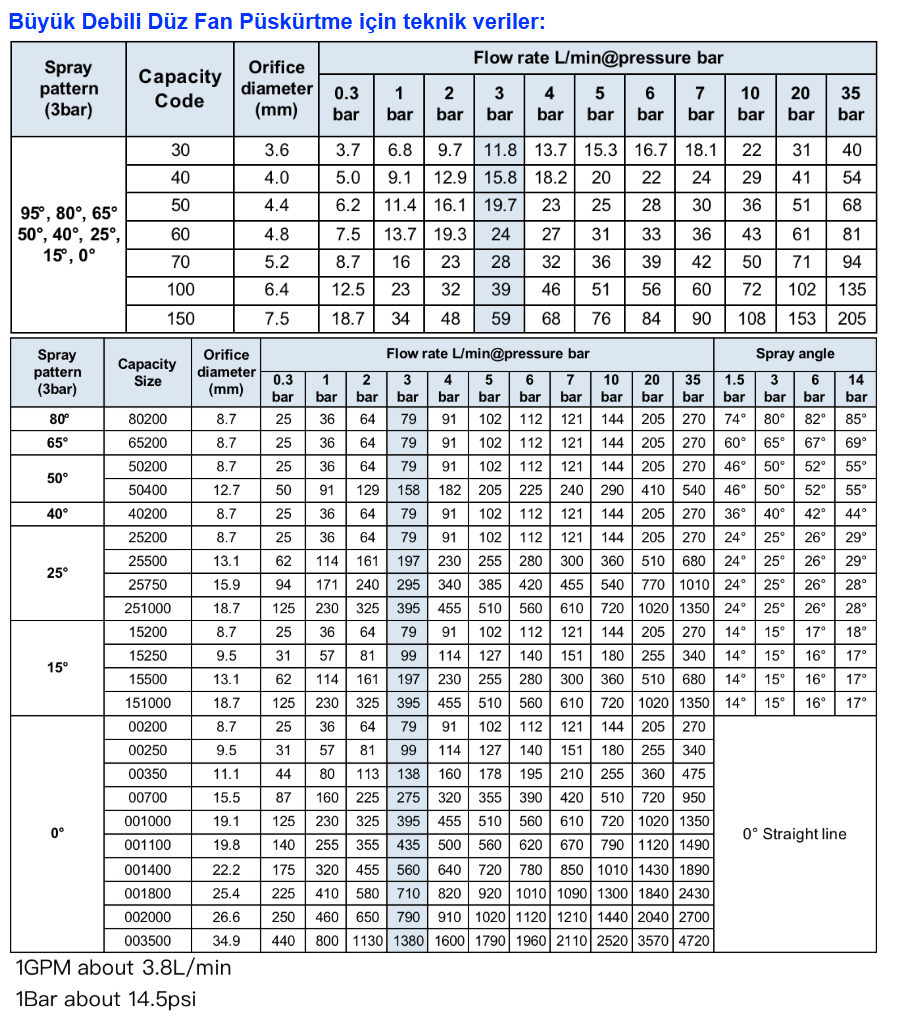

Technical Specifications of 120-Degree Flat Fan Jet Spray Nozzle

Operating Principle of 120-Degree Flat Fan Jet Nozzle

120-degree flat fan jet nozzles distribute liquids or gases at a specific angle, creating a wide, even coverage. The flat fan pattern enhances application efficiency, especially when covering large surfaces uniformly.

Liquid/Gas Inlet: The liquid or gas enters the nozzle under pressure.
Acceleration: The fluid is accelerated within the nozzle's internal structure and directed into a flat fan shape.
Spray Distribution: The 120-degree outlet angle spreads the fluid over a wide area, making it ideal for cooling and humidification applications.
Droplet Size: As the outlet pressure increases, the droplet size of the fluid decreases, resulting in a finer and more homogeneous spray.
Advantages of Customized 120-Degree Flat Fan Jet Spray Nozzles

Wide Coverage Area: The 120-degree outlet angle ensures even distribution of the fluid over a large surface.
High Efficiency: High flow rates and low energy consumption allow for efficient coverage of larger areas in less time.
Stainless Steel Durability: Stainless steel material resists corrosion and high temperatures, providing long-lasting performance.
Homogeneous Distribution: The flat fan spray pattern creates a uniform fluid distribution, improving application efficiency.
Quick Installation and Maintenance: Embedded/threaded mounting simplifies nozzle installation and maintenance.
Diverse Application Areas: Ideal for industrial cooling, humidification, cleaning, drying, and painting applications.
Application Areas

Industrial Cooling: Provides even fluid distribution over large areas for cooling machines, motors, or cooling towers.
Humidification Systems: Used in greenhouses, warehouses, and production areas as air humidifiers.
Washing and Cleaning: Used in industrial cleaning, food processing, and automotive washing for even fluid distribution.
Spray Drying: Effective for evaporating and drying liquids homogeneously in the chemical, food, and pharmaceutical industries.
Paint Applications: Creates even and smooth coatings in spray painting processes.
Vapor and Air Distribution: Can be used in vaporization and air distribution systems.

Factors to Consider When Selecting a Customized 120-Degree Flat Fan Jet Nozzle

Flow Rate and Pressure Requirements: The nozzle's flow rate and operating pressure should be selected based on the application's needs. Higher pressure provides finer droplets and wider coverage.
Outlet Angle: A wide outlet angle like 120 degrees allows for even liquid coverage over large areas.
Connection Type: Consider whether an embedded or threaded mounting is required. Embedded nozzles are used in fixed installations, while threaded nozzles offer easier installation and maintenance.
Material Selection: Materials like stainless steel (SS304, SS316) are resistant to corrosive fluids, high temperatures, and harsh conditions. This choice ensures long-term use and low maintenance. Alternatives like PTFE or PVC offer lighter weight and chemical resistance.
Droplet Size and Coverage Area: The nozzle's droplet size significantly impacts application efficiency. High-pressure nozzles produce finer droplets for more homogeneous sprays, especially beneficial for humidification and cooling. The coverage area should be selected based on the required surface area. A wide spray angle (120 degrees) covers large surfaces simultaneously.
Operating Conditions and Environment: The nozzle's operating temperature range and the type of fluid are crucial. Stainless steel nozzles withstand high temperatures and chemicals. Material selection should consider temperature and chemical composition. Additionally, the nozzle's design should protect against dust, dirt, and other contaminants.
Ease of Maintenance and Cleaning: Consider the ease of maintenance and cleaning when selecting a nozzle. Embedded or threaded mounting options simplify maintenance and installation. Easily removable nozzles speed up the maintenance process.
Flow Rate Control and Pressure Adjustment: The flow rate directly affects application efficiency and fluid consumption. Outlet pressure and flow rate can be customized to meet user needs. High flow rates cover larger areas quickly, while low flow rates provide precise and controlled fluid distribution.
Mounting Configuration: The nozzle's mounting type (embedded/threaded) and connection dimensions are crucial for system installation and integration. Customized nozzles can be designed for specific mounting requirements, especially in industrial machinery or fluid distribution systems.
Conclusion

Customized 120-degree flat fan jet spray nozzles offer an excellent solution for effective and homogeneous fluid distribution over wide areas. Made of stainless steel, these nozzles provide long-lasting performance. Their wide spray angles and high flow rate options make them suitable for various applications such as industrial cooling, humidification, cleaning, and spray drying.

Careful consideration of factors like flow rate, pressure, material, and operating conditions is essential for selecting the right nozzle. Choosing the most suitable solution for the application enhances efficiency and reduces maintenance and operating costs.
