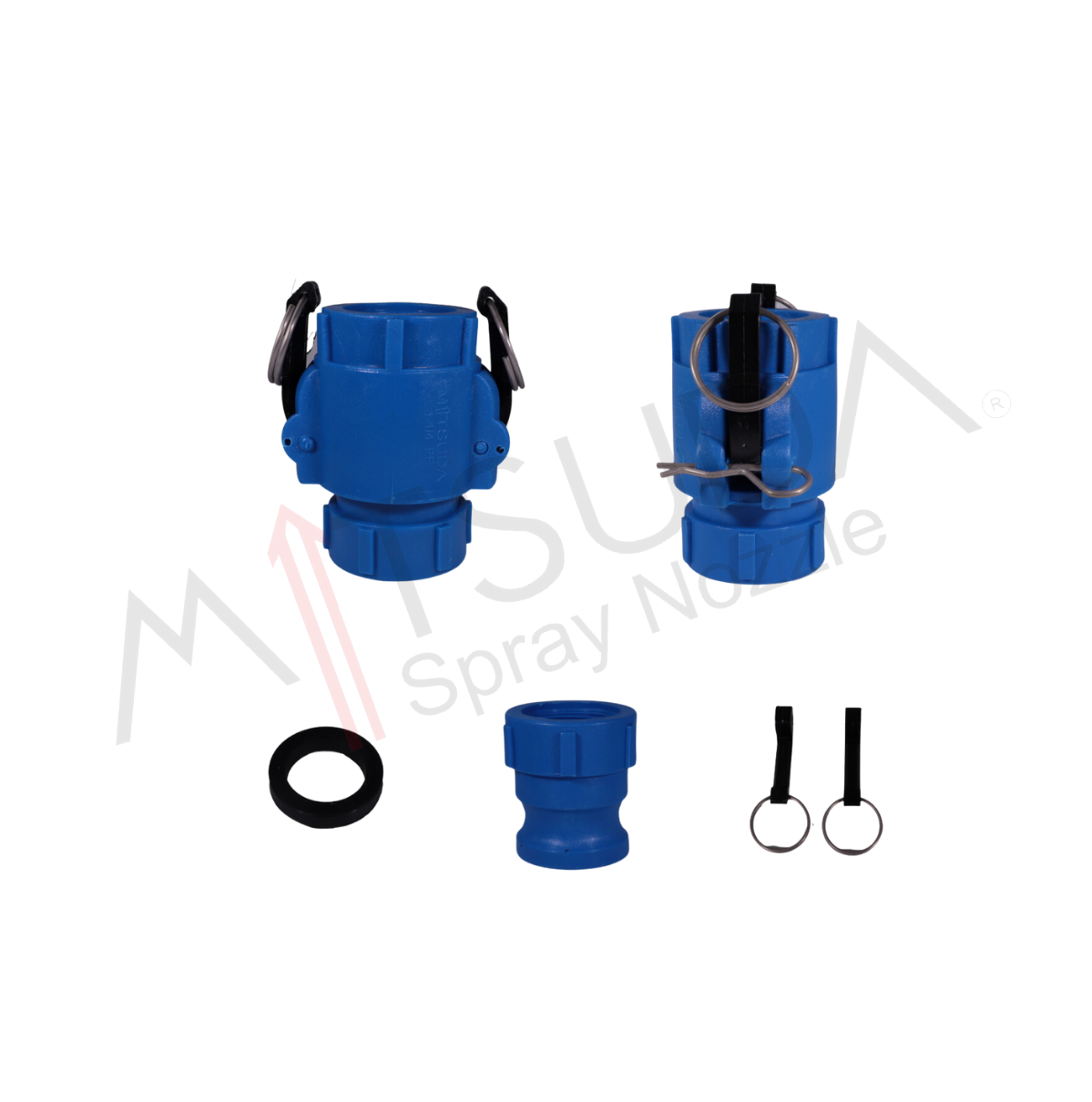

Quick Coupling 1-1/4

Quick Couplings: A Comprehensive Guide
Introduction

Quick couplings, also known as quick connect or disconnect couplings, are mechanical devices designed to quickly and easily connect and disconnect fluid or air lines. These devices are widely used in a variety of industries, including automotive, industrial, and medical, where efficient fluid transfer is essential.

How Quick Couplings Work

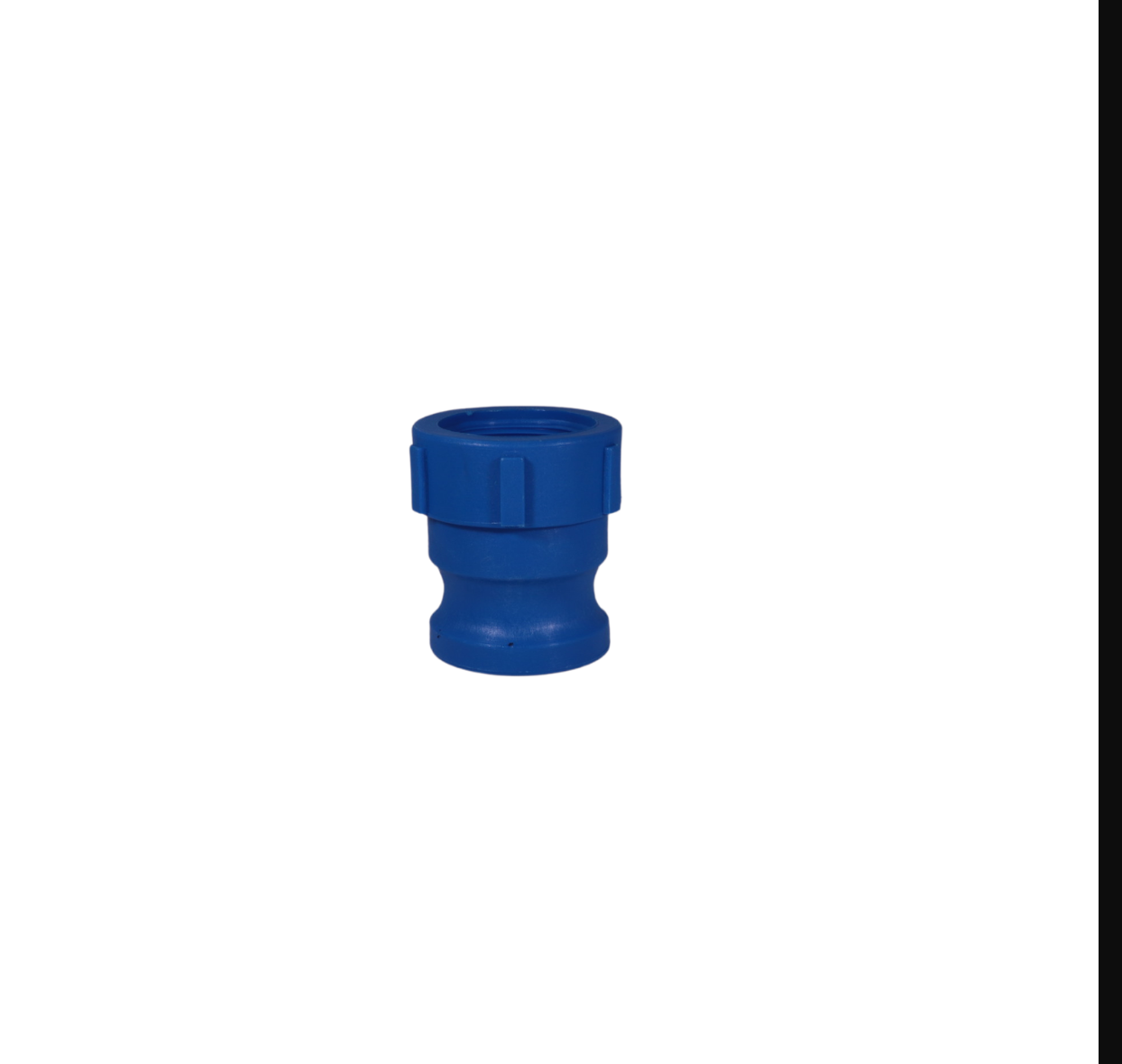

Quick couplings typically consist of two halves: a male half and a female half. The male half has a poppet or sleeve that seals against an orifice in the female half when connected. To connect the two halves, the user simply aligns the coupling and pushes them together. To disconnect, a release mechanism is activated, typically a sleeve or lever, which retracts the poppet or sleeve, allowing the connection to be broken.

Types of Quick Couplings

There are several types of quick couplings, each designed for specific applications and fluids. Some common types include:

Hydraulic quick couplings: Used in hydraulic systems to connect and disconnect hydraulic hoses quickly and easily.
Pneumatic quick couplings: Used in pneumatic systems to connect and disconnect air hoses.
Industrial quick couplings: Designed for general industrial applications, often with a wide range of flow rates and pressure ratings.
Medical quick couplings: Used in medical equipment to connect and disconnect fluid lines, often with specialized features for safety and cleanliness.
Advantages of Quick Couplings

Speed and efficiency: Quick couplings significantly reduce connection and disconnection time, improving productivity.
Safety: Many quick couplings have safety features such as automatic shutoff valves to prevent fluid leakage.
Versatility: Available in a wide range of sizes, materials, and configurations to suit various applications.
Ease of use: Quick couplings are easy to operate, even by untrained personnel.
Applications of Quick Couplings

Quick couplings find application in a wide range of industries, including:

Automotive: Fuel filling, air conditioning, and hydraulic systems.
Industrial: Manufacturing, construction, and process industries.
Medical: Blood transfusion, dialysis, and other medical equipment.
Agriculture: Irrigation and spraying systems.
Materials

Quick couplings are typically made from materials such as:

Brass: Offers good corrosion resistance and machinability.
Stainless steel: Provides excellent corrosion resistance and durability.
Plastic: Lightweight and cost-effective, suitable for less demanding applications.
Selection Criteria

When selecting a quick coupling, consider the following factors:

Fluid compatibility: Ensure the coupling material is compatible with the fluid being handled.
Pressure rating: The coupling must be rated for the maximum operating pressure of the system.
Flow rate: The coupling must have a sufficient flow rate to meet the application requirements.
Connection type: The coupling must have the correct thread size and type to match the connected components.
Environmental conditions: Consider factors such as temperature, vibration, and corrosion when selecting a coupling.
Conclusion

Quick couplings are essential components in many industrial applications, providing efficient and reliable fluid connections. By understanding the different types of quick couplings and their applications, you can select the most suitable coupling for your specific needs.
