PTFE Te-flon Spiral Nozzle

PTFE (Teflon) Customized Spiral Jet Cone Nozzle: Comprehensive Article for Acid and Alkali Corrosion Resistant, Cooling Tower Washing, Seawater, Ship/Boat Sulfur Control Applications

Introduction

PTFE (Polytetrafluoroethylene), commonly known as Teflon, is a material recognized for its chemical and thermal resistance. These properties make PTFE an ideal material, especially for industrial applications that encounter acidic and alkaline environments. Nozzle technology with such properties is of great importance, particularly in cooling towers, the ship/boat industry, and sulfur control systems. In this article, detailed information will be provided about the features, advantages, and usage areas of PTFE spiral jet cone nozzles.

Basic Features of PTFE Spiral Jet Cone Nozzle

1. Material Properties (PTFE Teflon)
PTFE can withstand high temperatures (up to 250°C) and exhibits excellent resistance against most acids and alkalis. Additionally, PTFE's low coefficient of friction and excellent electrical insulation properties allow it to be used safely and effectively in various industrial applications. This is the main reason why it is preferred in challenging environments such as cooling towers, seawater treatment systems, and sulfur control systems.

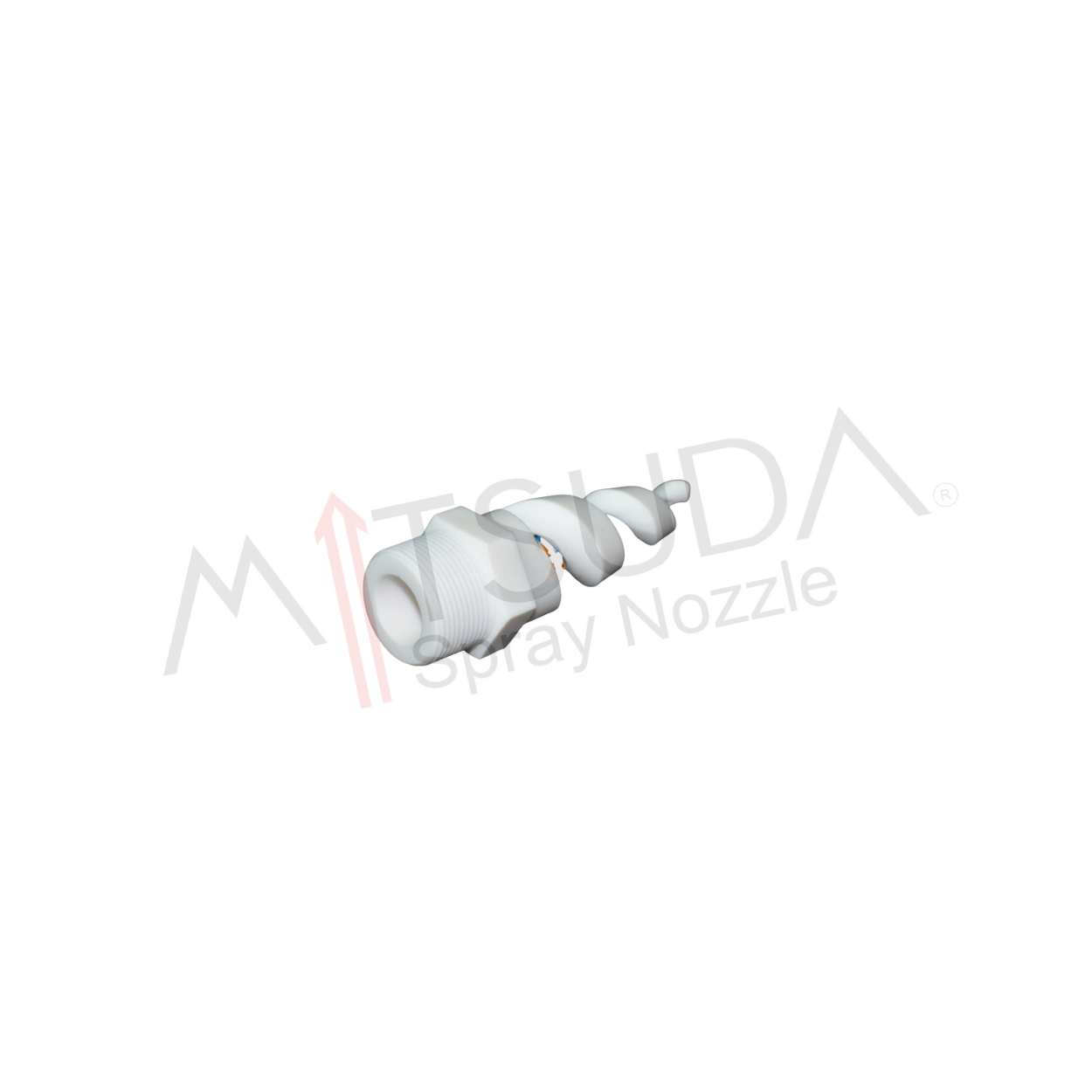

2. Spiral Jet Cone Nozzle Design
Spiral jet cone nozzles are nozzles that spread liquid at a specific angle and homogeneously, distributing it over a wide area. These nozzles are used especially in systems where liquids need to be distributed quickly and evenly. PTFE spiral jet cone nozzles have a high flow capacity and allow liquids to be sprayed in the desired directions and levels.

3. Working Principle
Spiral jet cone nozzles direct the liquid through the spiral channel in the nozzle, allowing the liquid to be atomized and spread over a wide area in the desired way. These nozzles ensure the correct direction of the fluid, allowing it to spread evenly over the surrounding surfaces. PTFE spiral jet nozzles are often preferred for cleaning, washing, and desulfurization processes due to these features.

Application Areas

1. Cooling Tower Washing Systems

Cooling towers are commonly used in industrial plants for liquid cooling processes. In cooling towers, PTFE spiral jet cone nozzles play a critical role for the efficient operation of the system. These nozzles ensure even distribution of water, minimizing temperature differences within the tower and helping the water to cool more efficiently. In addition, during the cleaning of cooling towers, PTFE material offers long-lasting and reliable use thanks to its resistance to acidic and alkaline cleaners.

2. Seawater Filtration and Ship/Boat Applications

The treatment of seawater is a very important process, especially in ships and the maritime industry. PTFE spiral jet nozzles are used in seawater treatment systems to ensure the effective filtration and cleaning of water. The durability of PTFE nozzles provides a great advantage for cleaning lime, salt, and other minerals found in seawater.

3. Sulfur Control Systems

Controlling sulfur emissions in ship engines and industrial plants is important for compliance with environmental regulations. PTFE spiral jet nozzles are an important component of systems used for cleaning or neutralizing sulfur gases in liquid form. During the desulfurization process, the PTFE material guarantees long-term and efficient operation as it is resistant to chemical interactions and high temperatures.

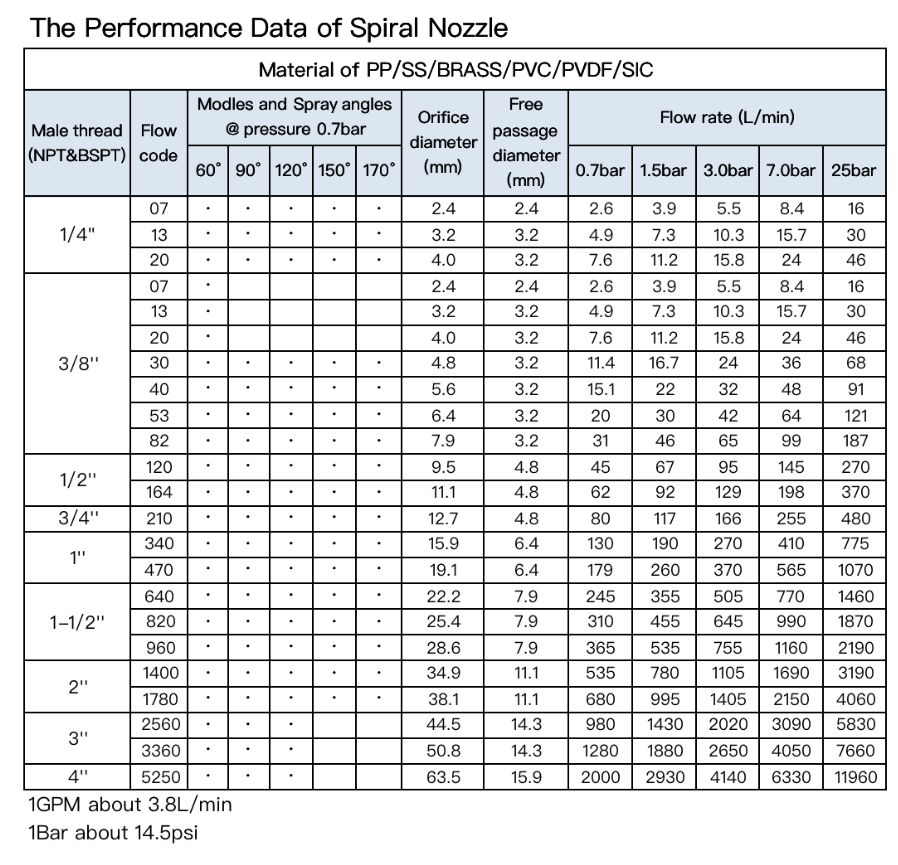

Technical Data of Customized Spiral Jet Cone Nozzles

Advantages

Chemical Resistance: The high resistance of PTFE to acid and alkali ensures that spiral jet nozzles last for a long time in harsh working conditions with aggressive chemicals.
High Temperature Resistance: PTFE spiral jet nozzles remain stable at high temperatures (up to 250°C), making them ideal for use in heat-sensitive processes.
Homogeneous Distribution: Thanks to its spiral design, it spreads the liquid homogeneously, providing more efficient washing and cleaning processes.
Low Maintenance Requirement: The high abrasion resistance and chemical resistance of PTFE ensure that the nozzles are long-lasting, thus reducing the frequency of maintenance and replacement.
Environmentally Friendly: Effective removal of sulfur and other pollutants provides environmentally friendly solutions.
Conclusion

PTFE spiral jet cone nozzles are industrial application equipment that is resistant to acidic and alkaline corrosion, operates at high temperatures, and is resistant to chemicals. These nozzles, which are effectively used in cooling towers, seawater filtration systems, and sulfur control systems, provide efficient operations by distributing liquids homogeneously. The durability provided by PTFE offers long-lasting and efficient solutions, reducing the maintenance costs of industrial plants and increasing operational efficiency.
