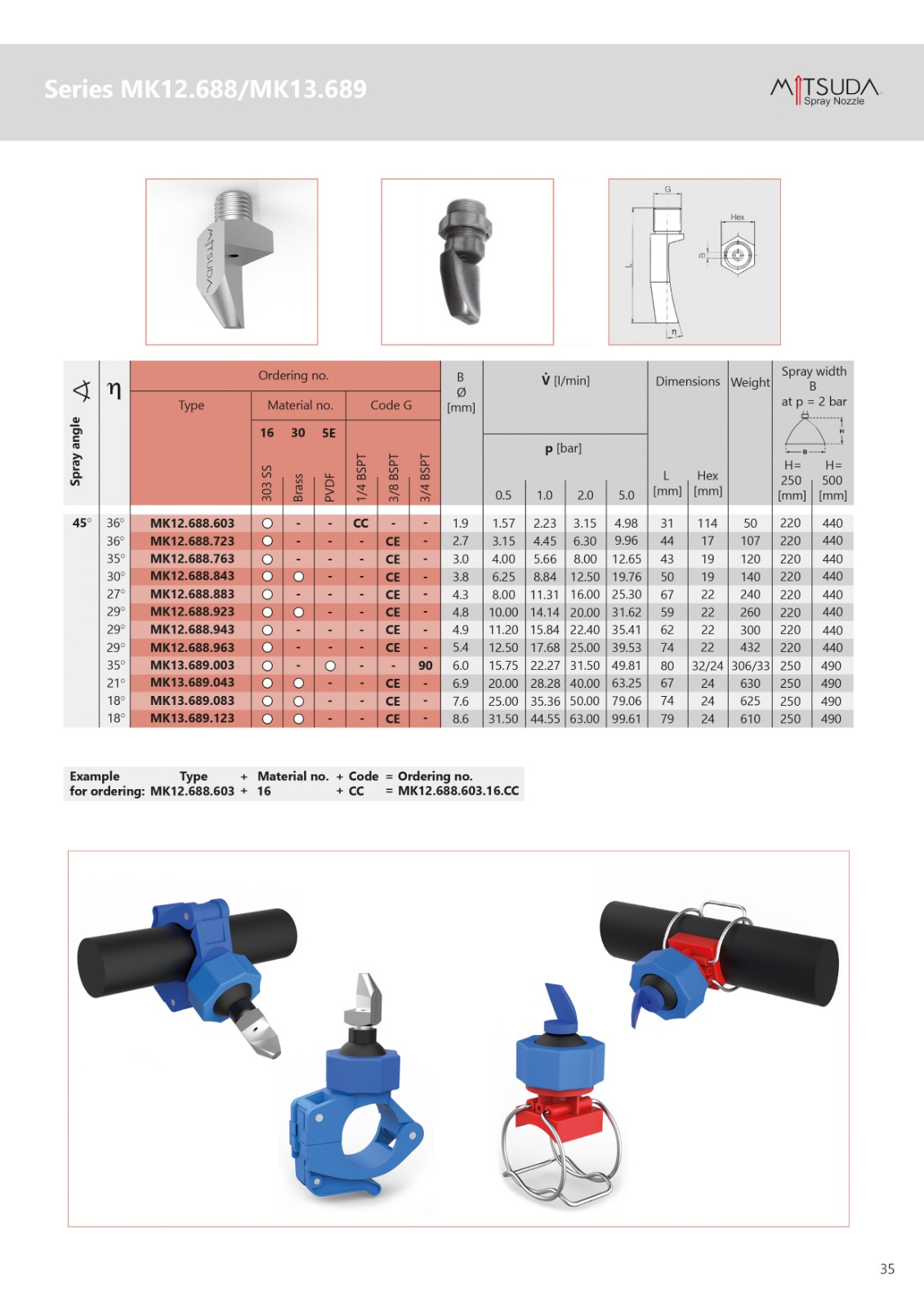

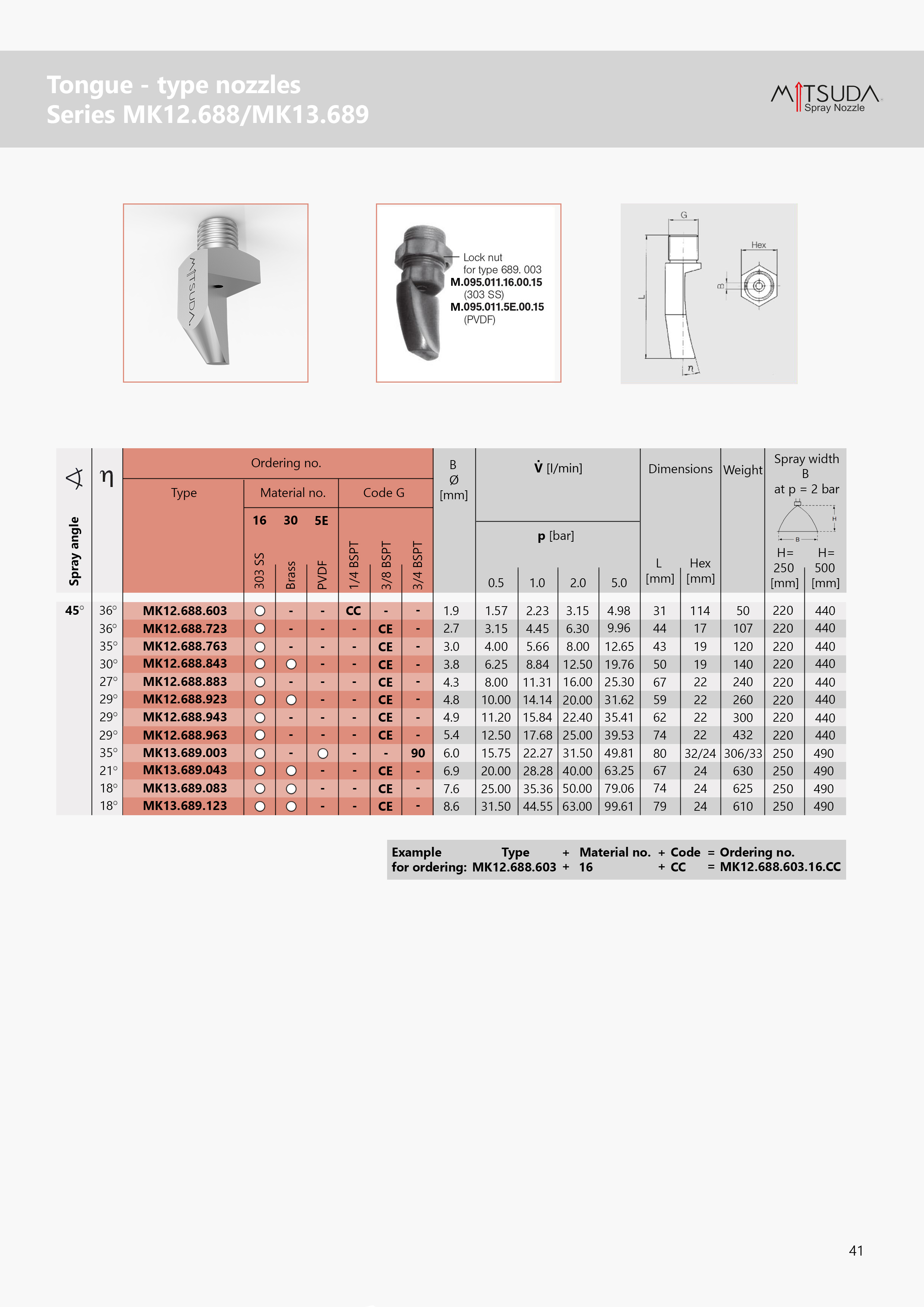

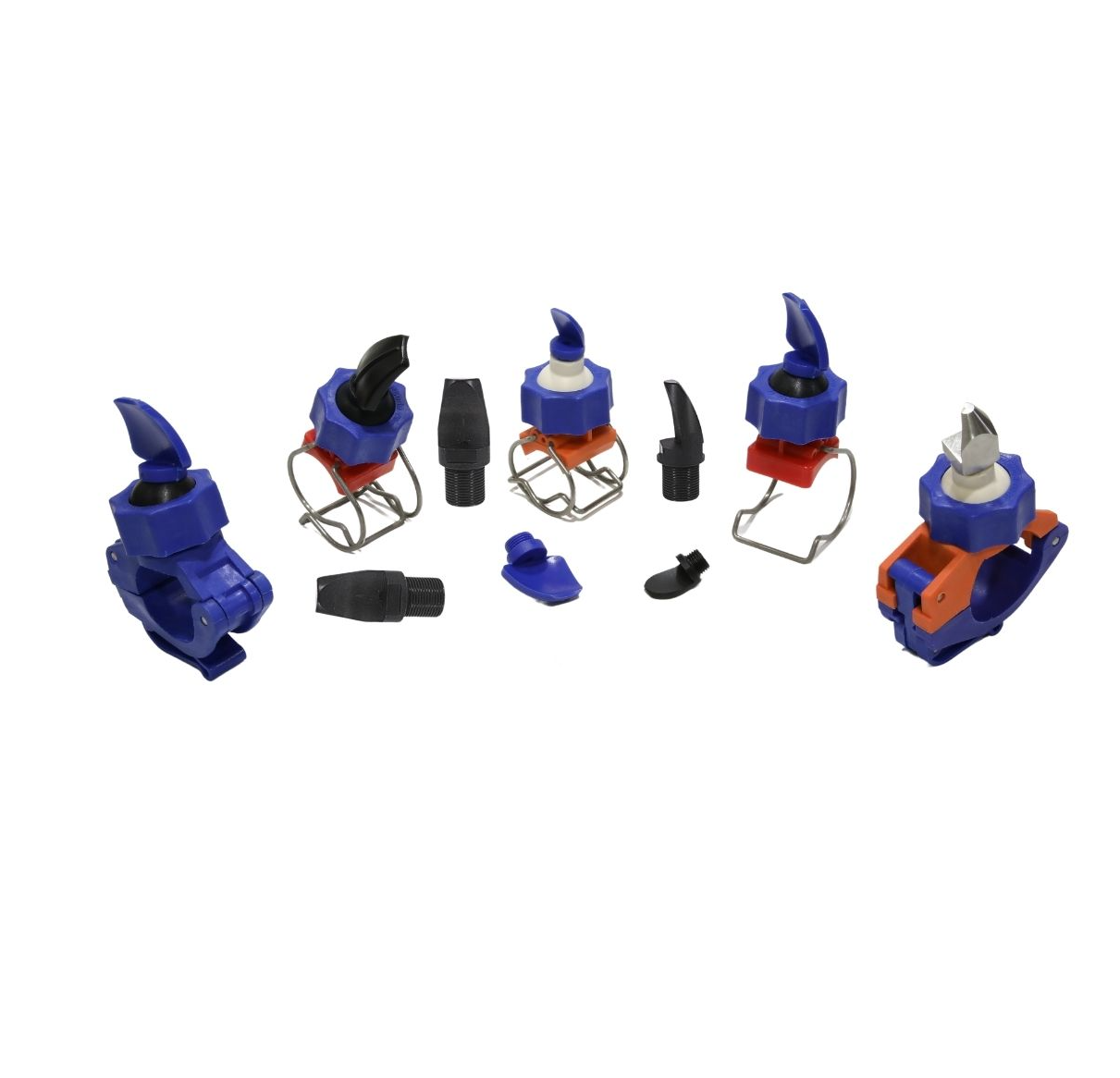

V-Type Deflector Flat Spray Nozzle
A V-type deflector flat spray nozzle is a specialized type of nozzle designed to deliver a narrow, high-impact, flat spray pattern, making it ideal for applications that require powerful jets.
Key Features:
Spoon-Shaped Deflector Design: The nozzle's design incorporates a spoon-shaped deflector to concentrate the fluid flow, resulting in a narrow, high-impact spray.
Variety of Thread Sizes and Spray Angles: Available in thread sizes ranging from 1/8" to 3/4" and spray angles from 15° to 50°, catering to diverse needs.
Material Options: Offered in various materials such as AISI 303, AISI 316 stainless steel, brass, and PP to suit different applications.
High Clogging Resistance: Compared to standard flat spray nozzles, the V-type deflector nozzle has a wider and more resistant internal flow path, minimizing clogging.
High Impact at Low Pressure: Delivers a sharp and high-impact spray even at low pressures, promoting energy efficiency.
Wide Range of Flow Rates and Spray Angles: Offers flexibility with various flow rates and spray angles, along with standard materials and connections.
Horizontal Flat Spray: Produces a sharp, horizontal flat spray pattern, making it highly effective for cleaning and washing applications.
Long Service Life: Provides high-performance cleaning efficiency and a long service life.
Homogeneous Spray Distribution: The nozzle maintains a consistent spray angle, ensuring a homogeneous fluid distribution. When installed in spray bars, V-type deflector nozzles provide a highly uniform overall fluid distribution.
Applications:
V-type deflector flat spray nozzles are widely used in various industrial applications requiring a high-impact, narrow-angle spray. Some common applications include:

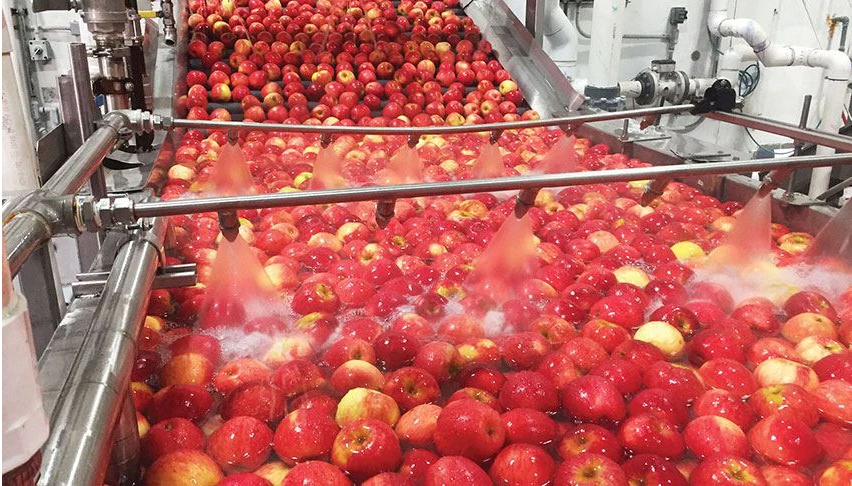

Cleaning and washing processes
Surface preparation
Chemical spraying
Cooling and lubrication
Dust removal
Pre-coating processes
Selection Criteria:
When selecting a V-type deflector flat spray nozzle, consider the specific requirements of your application. Important factors include:
Required thread size and spray angle
Properties of the fluid to be sprayed (chemical compatibility, viscosity, etc.)
Operating pressure
Flow rate requirements
Material compatibility
Choosing the right V-type deflector nozzle is essential to achieve the desired spray performance. If you need technical assistance, please contact our expert team.
