Even Liquid Distribution: Flat fan nozzles ensure that the sprayed liquid is evenly distributed over a wide area. This feature is particularly important in applications such as cooling, cleaning, and humidification.
Wide Spray Angle: Flat fan nozzles can have various spray angles, allowing for selection based on specific application requirements.
Durable Material: Flat fan nozzles are typically made of durable materials like stainless steel, making them resistant to wear and corrosion.
Easy Installation: Flat fan nozzles generally have a simple design that allows for easy installation.
Energy Efficiency: Flat fan nozzles spray liquid more efficiently, resulting in energy savings.
Operating Principle of Flat Fan Nozzles
Flat fan nozzles have specially designed internal channels that propel the liquid at a specific velocity and angle. As the liquid exits the nozzle, it expands into a flat, wide fan pattern.
Types of Flat Fan Nozzles
Flat fan nozzles are available in various materials, spray angles, and flow rates. The choice of nozzle depends on the specific requirements of the application.
Applications of Flat Fan Nozzles
Flat fan nozzles are used in a wide range of industries, including:
Agriculture: Crop protection, irrigation, cooling
Industry: Cleaning, cooling, paint application, bonding
HVAC: Cooling, humidification
Firefighting: Water spraying
Key Features:
Parameter | Value |
Spray Angle | 65 degrees-110 degress |
Flow Rate |
1.5 GPM at 40 PSI
|
Connection | 1/4" NPT |
Material |
Stainless Steel 316
|
Pressure Rating |
100 PSI maximum
|

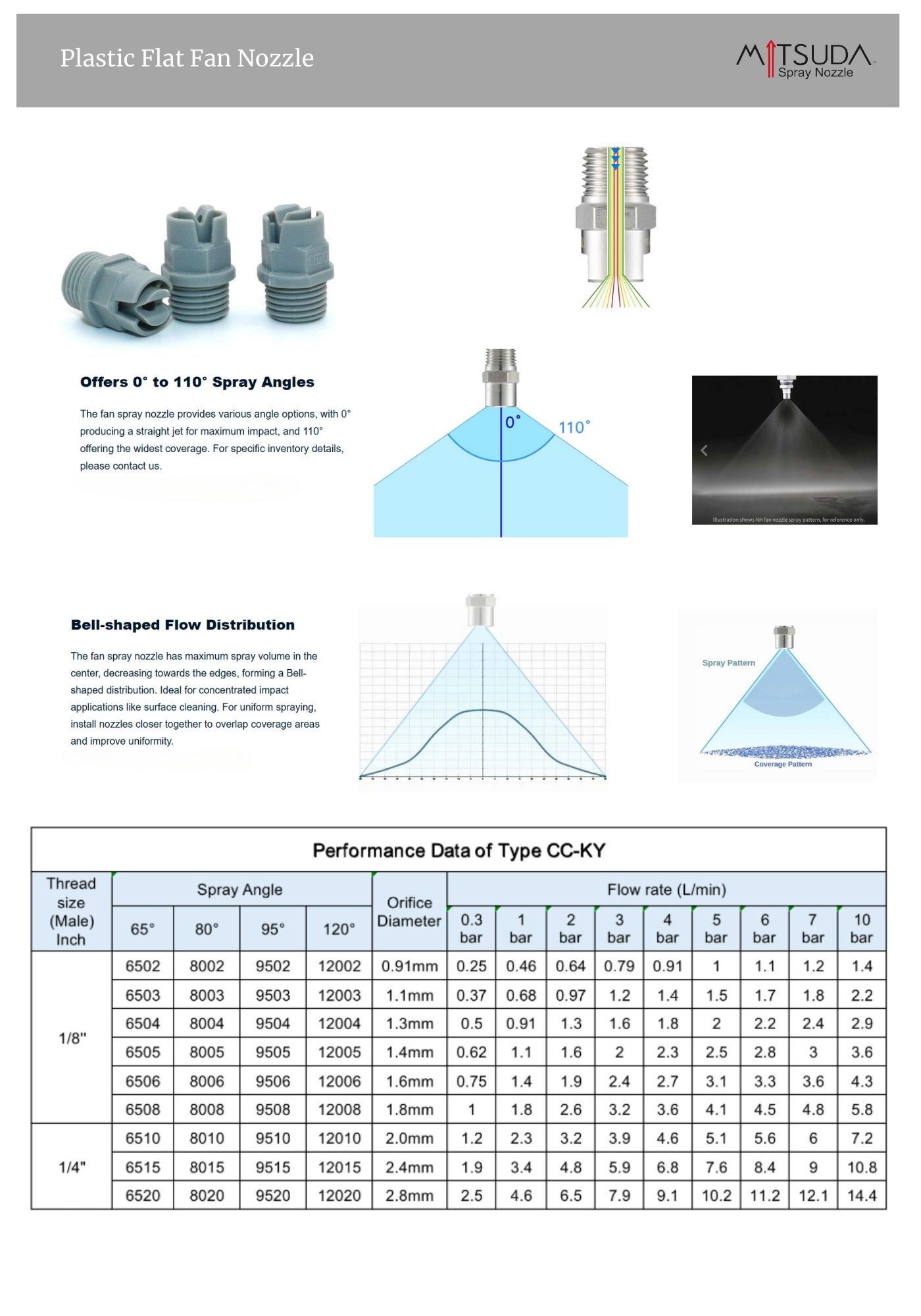

Technical Document | Download |
