Multi-Head Full Cone Mist Jet Nozzle

Comprehensive information with numerical data about Multi-Head/7 Spray Head Large Capacity/Wide Angle Small Droplet Size/Multi-Hole/Full Cone Mist Jet Nozzle:

These types of nozzles are specifically designed to produce highly efficient, homogeneous, and finely atomized sprays in large areas. The wide-angle, small droplet size allows the liquid to spread more effectively and evenly. They are commonly used in cooling, cleaning, misting, and industrial spraying applications. Here are some technical specifications of these nozzles:

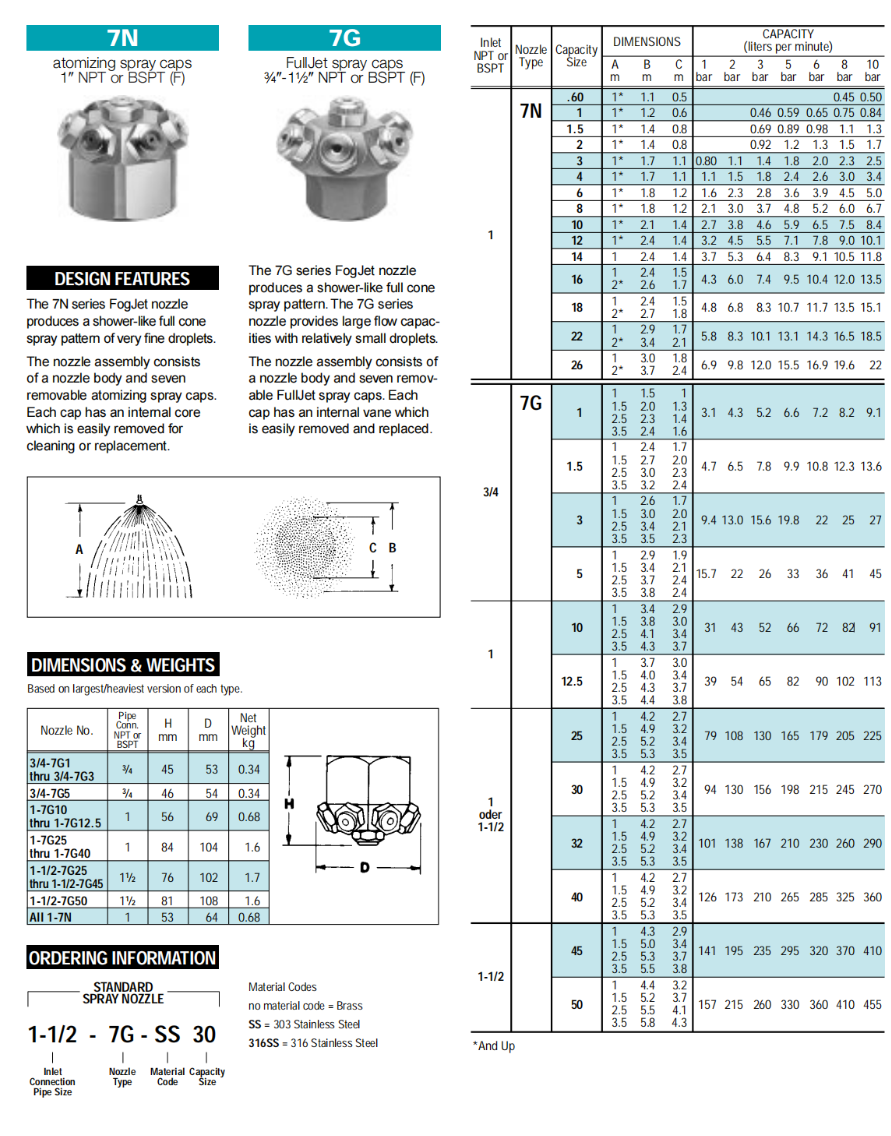

Technical Specifications and Numerical Data

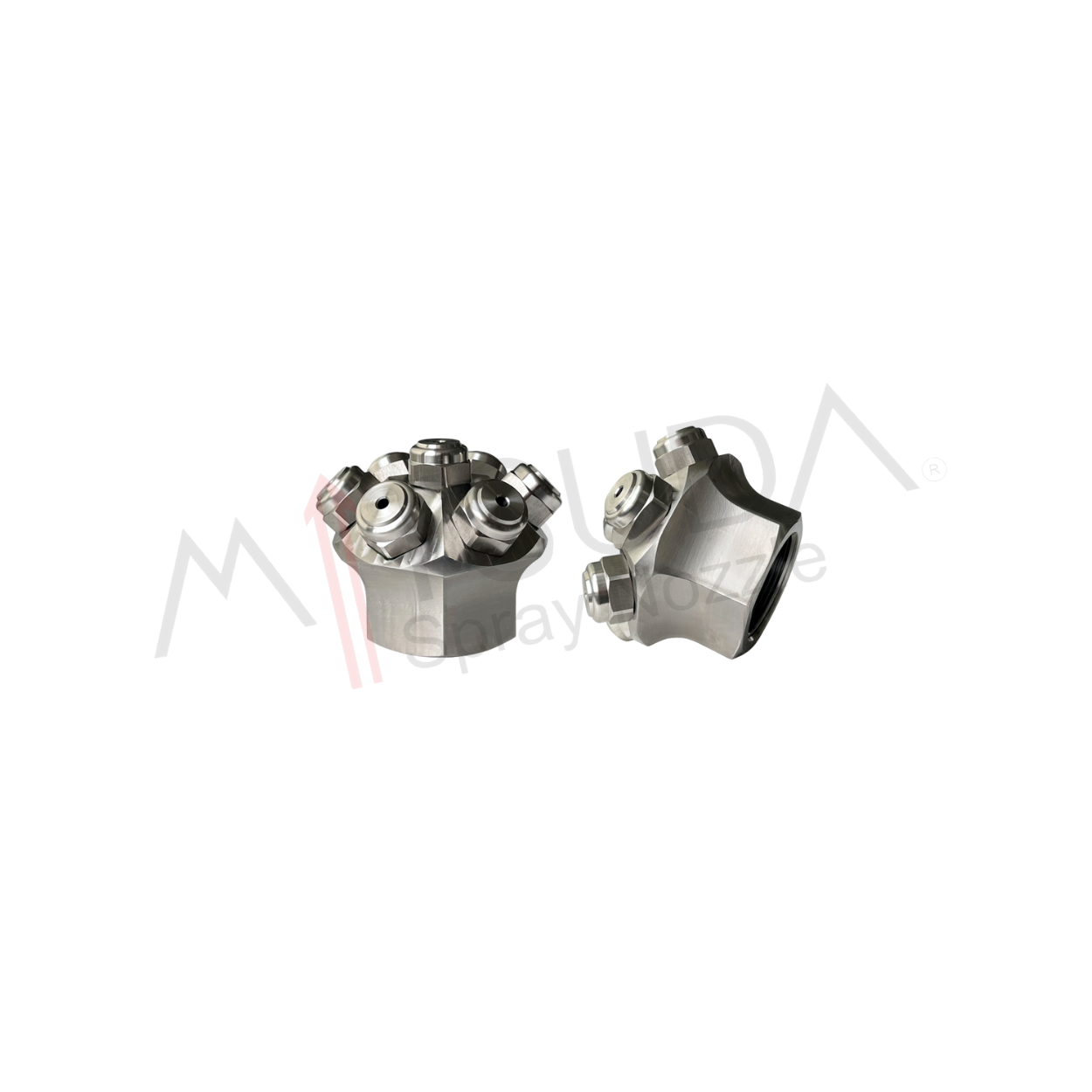

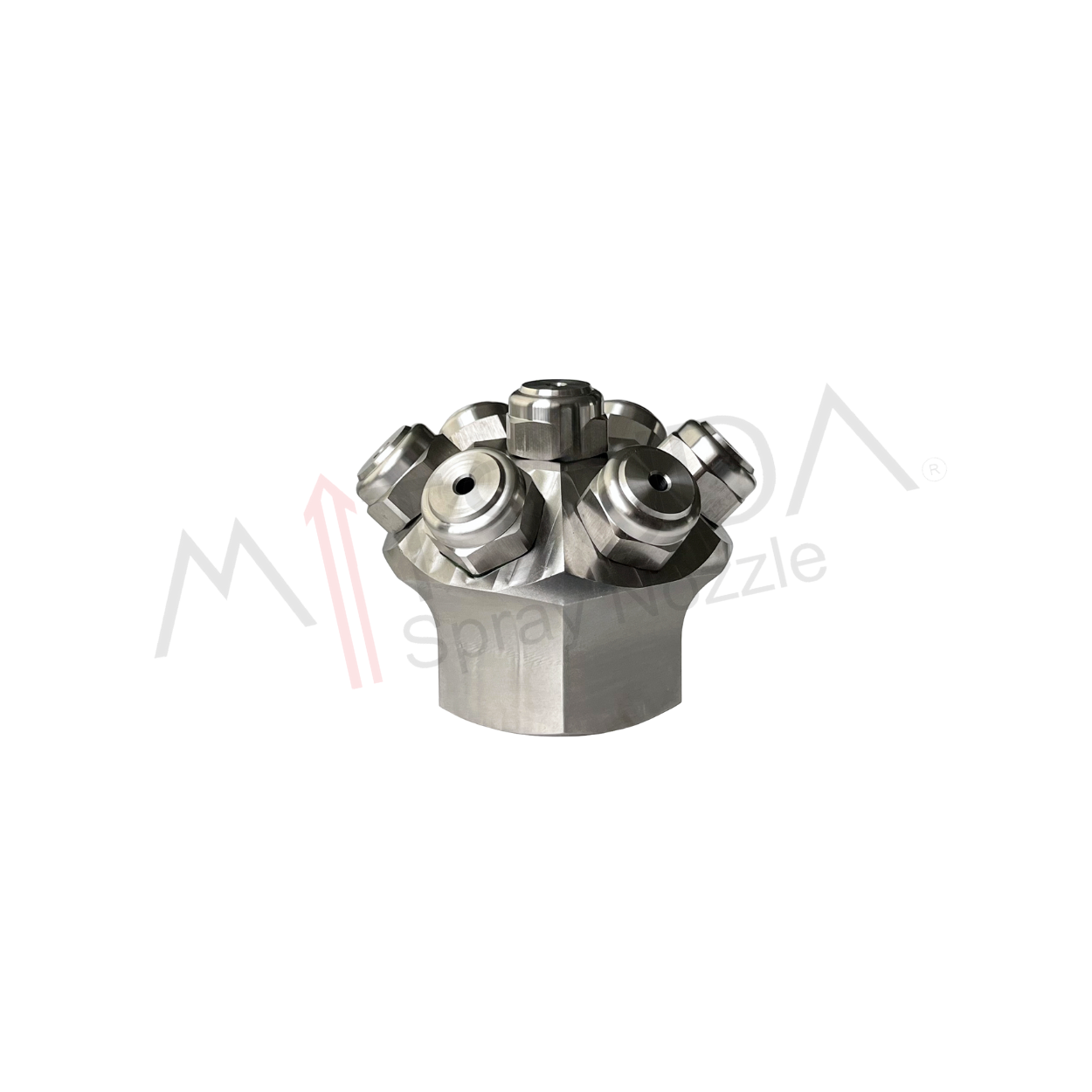

Multi-Head Structure:

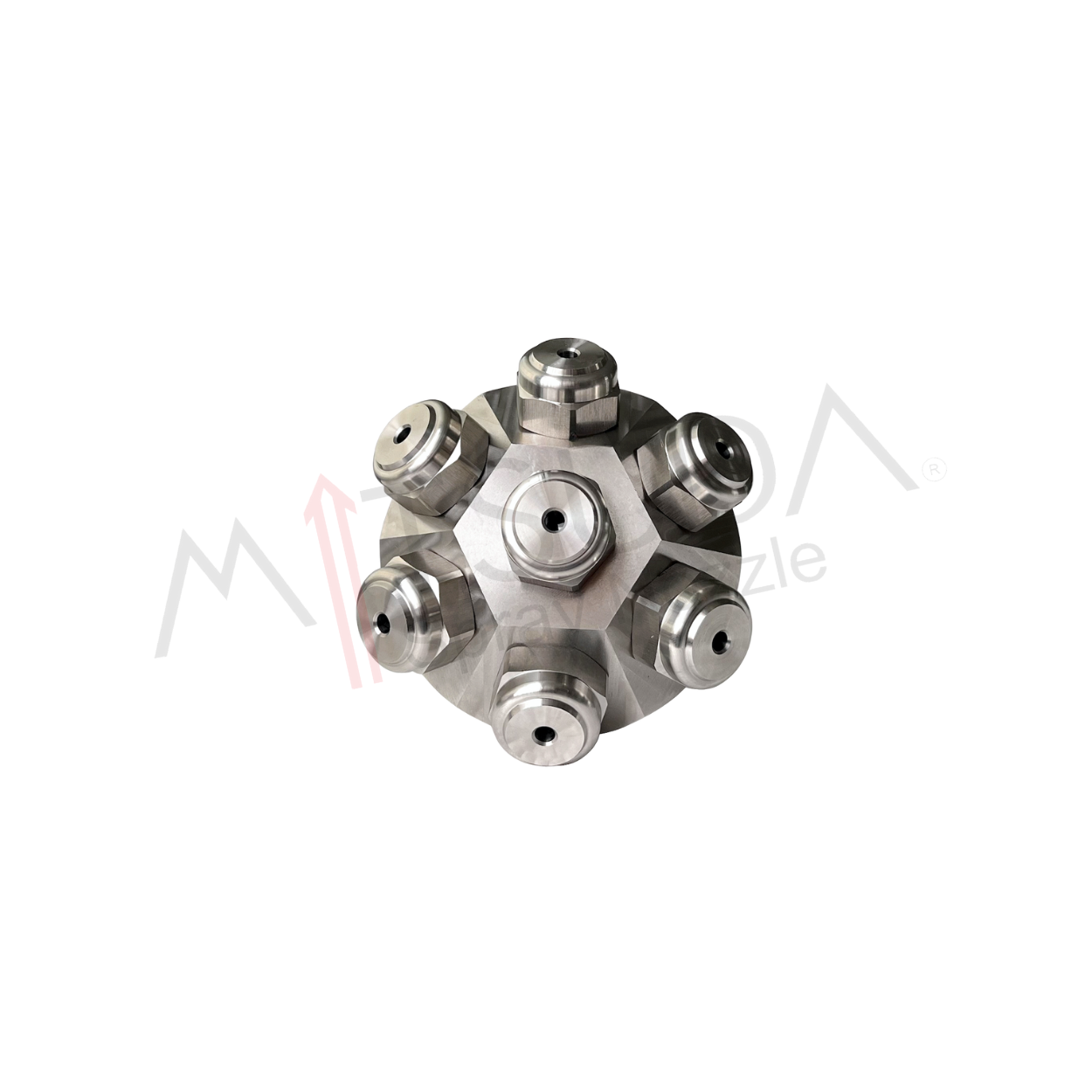

Number of Heads: 7 heads (Each head provides multiple outlet points that are combined with different spray nozzles.)
Head Arrangement: Can be in flat or conical arrangements; a full conical arrangement is usually preferred.

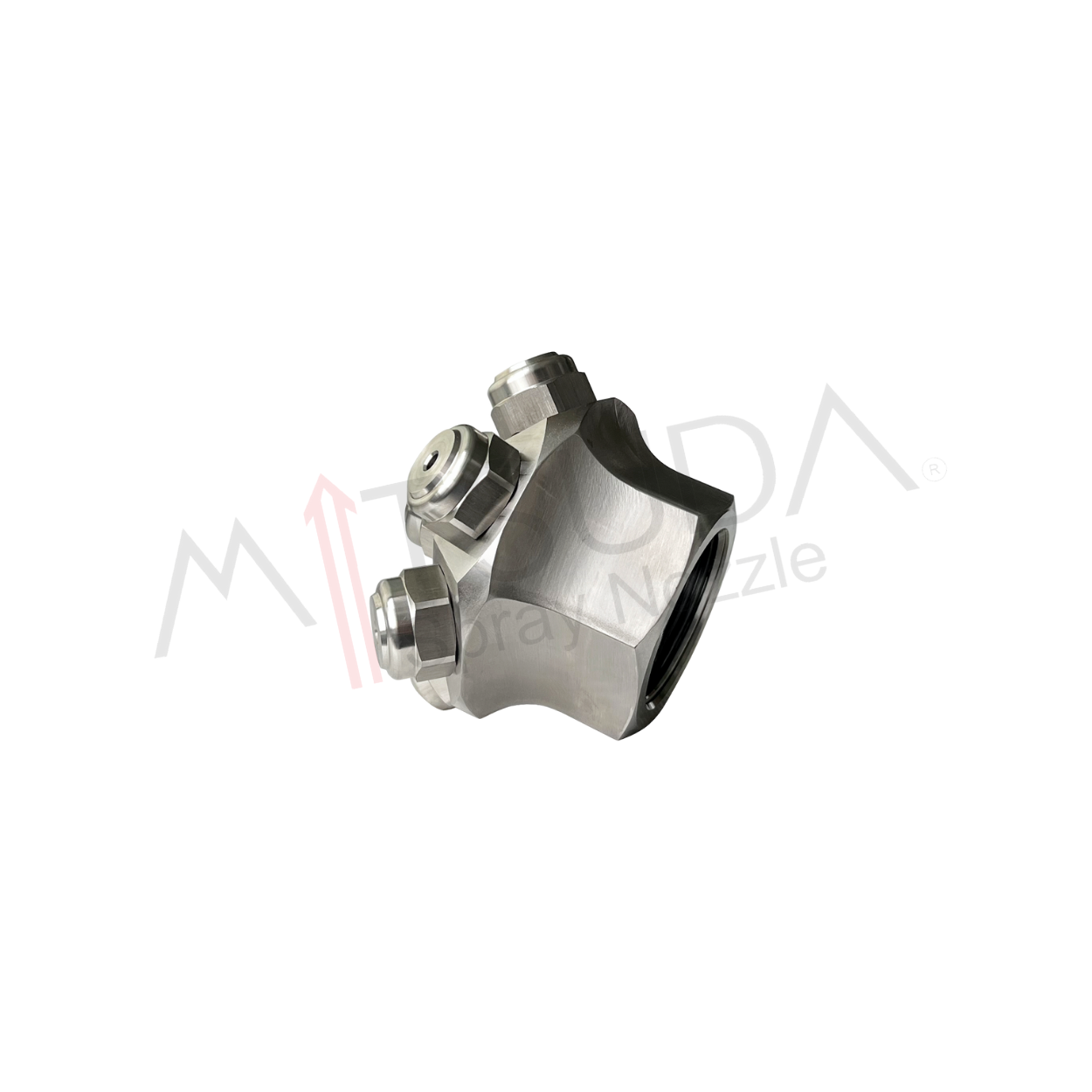

Connection Type: Standard female threaded connections such as 1/4 inch, 1/2 inch are generally used.
Spray Output:

Jet Type: Full cone mist jet. In other words, it sprays the liquid in fine particles, which allows the liquid to spread over a wider area with the surface.
Spray Angles: It usually sprays at an angle between 80° - 120°. This wide angle is ideal for cleaning or cooling larger areas.
Liquid Flow Rate: Varies between 10 L/min – 100 L/min. 50 L/min and above are generally preferred for applications requiring high capacity.
Droplet Size: Between 50 microns – 100 microns. This allows the liquid to be finely atomized, meaning the droplets are quite small.
Pressure and Performance:

Working Pressure: Between 2 bar – 10 bar. The working pressure affects the atomization efficiency and directly determines the droplet size.
Liquid Type: These nozzles can usually work with water, chemical solvents, soapy water, and sometimes acidic/alkaline substances.
Pressure Range: Low pressure (2 bar – 5 bar) usually creates larger droplet sizes, while high pressure provides finer atomization.
Material:

Material Type: Nozzle structures are usually made of stainless steel, aluminum, bronze, or plastic (such as PP, PVC) materials. This increases the durability of the nozzles and provides resistance against acidic/alkaline solvents.
Corrosion Resistance: Especially models made of stainless steel are extremely resistant to chemicals and prevent corrosion formation in long-term use.
Application Areas:

Liquid Distribution: Wide-angle spray heads are particularly effective in situations where large areas need to be cleaned or cooled quickly. These nozzles provide optimum cooling and cleaning by evenly distributing the liquid over large surfaces.
Cooling Systems: Used in cooling large machines, molds, or industrial equipment. A low-flow, high-pressure water splashing system is provided to accelerate heat transfer.
Cleaning: Used in industrial cleaning to remove residues and dirt on machines or equipment.
Misting and Evaporation: Used for misting purposes in the agricultural sector, in greenhouses or large areas.
Special Features:

Adjustable Flow: Some models have adjustable flow rates and can be customized according to different applications. This feature helps to optimize process efficiency.
Spray Range: Can spray up to a wide distance between 1 meter and 6 meters.
Environmentally Friendly: Provides high-efficiency atomization with low energy. In this way, water and energy are saved.
Various Application Areas and Usage Area:

Agricultural Sector: Used for the proper spreading of agricultural pesticides and fertilizers.
Industrial Cleaning: It is ideal for cleaning machines and systems in production lines.
Greenhouses: Humidity control and microclimate can be provided in greenhouses by spraying liquid or vapor.
Cooling: Used in cooling machines operating at high temperatures in metal processing, automotive manufacturing, and plastics processing industries.
Conclusion:

Full cone mist jet nozzles with multiple heads and wide-angle small droplet size provide high efficiency and precision in the industrial field. These nozzles offer ideal solutions in situations where large areas need to be cleaned, cooled, or misted quickly. High-capacity and finely atomized sprays increase the efficiency of operations by homogeneously performing liquid distribution. These nozzles are widely used especially in agriculture, industrial cleaning, cooling systems, and misting applications.
