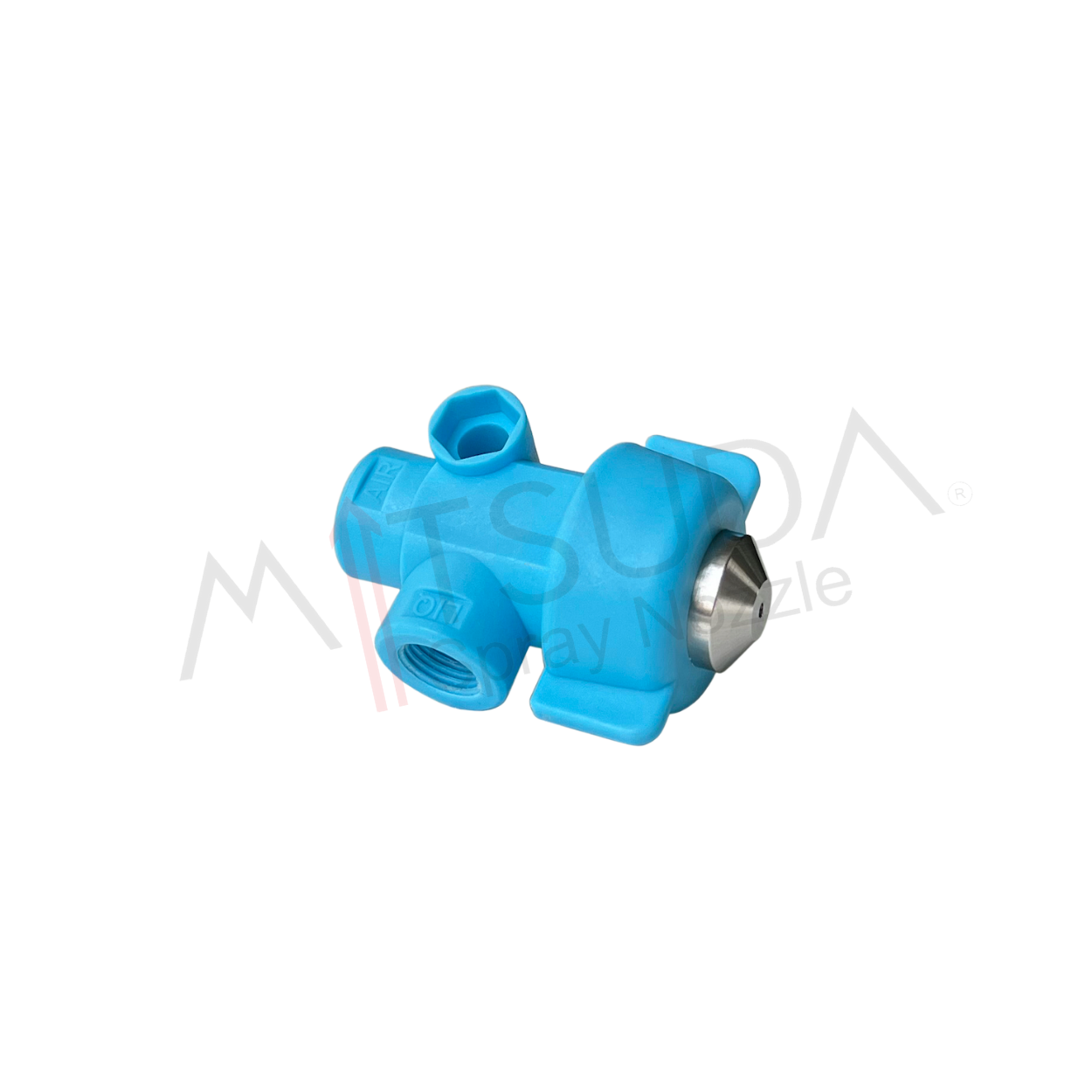

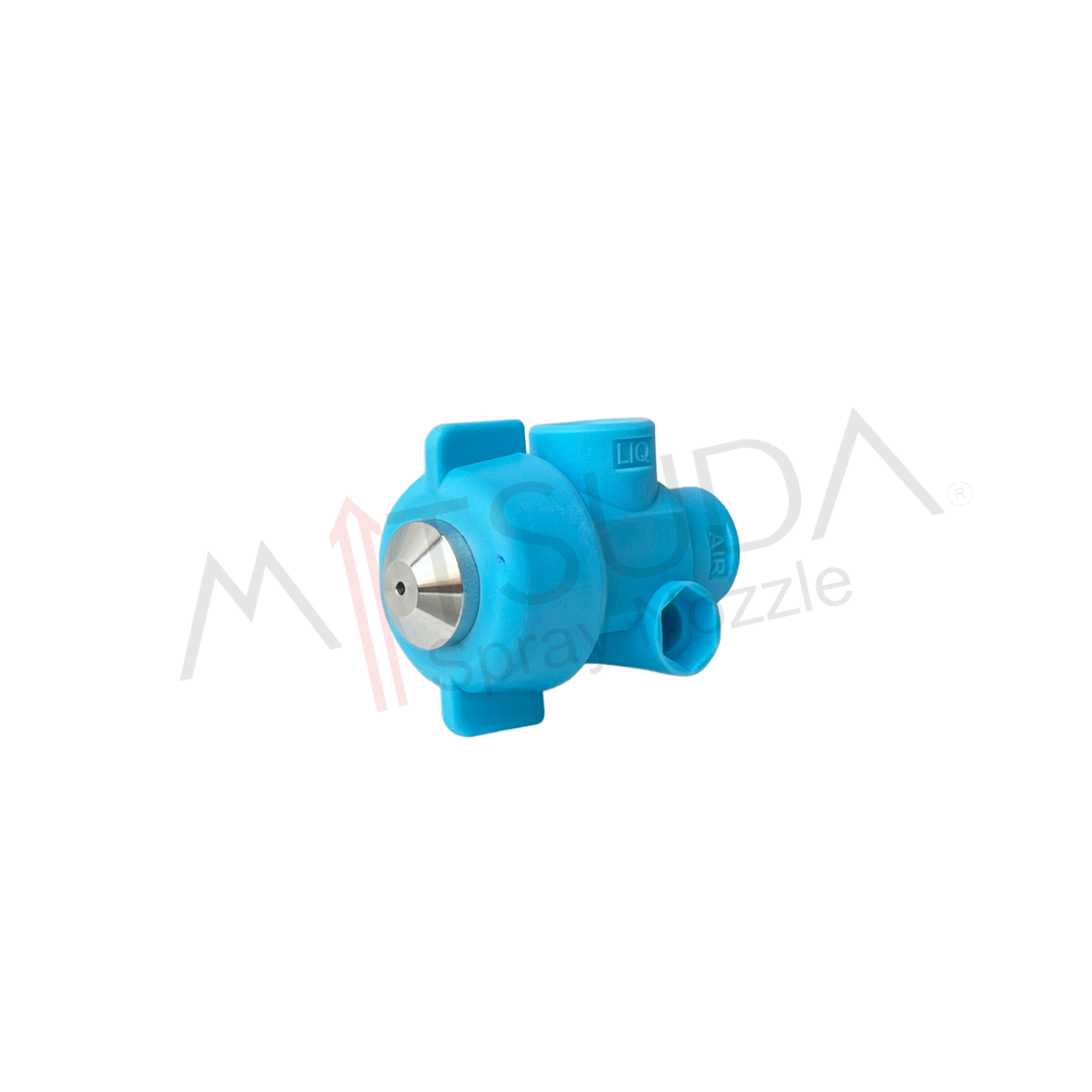

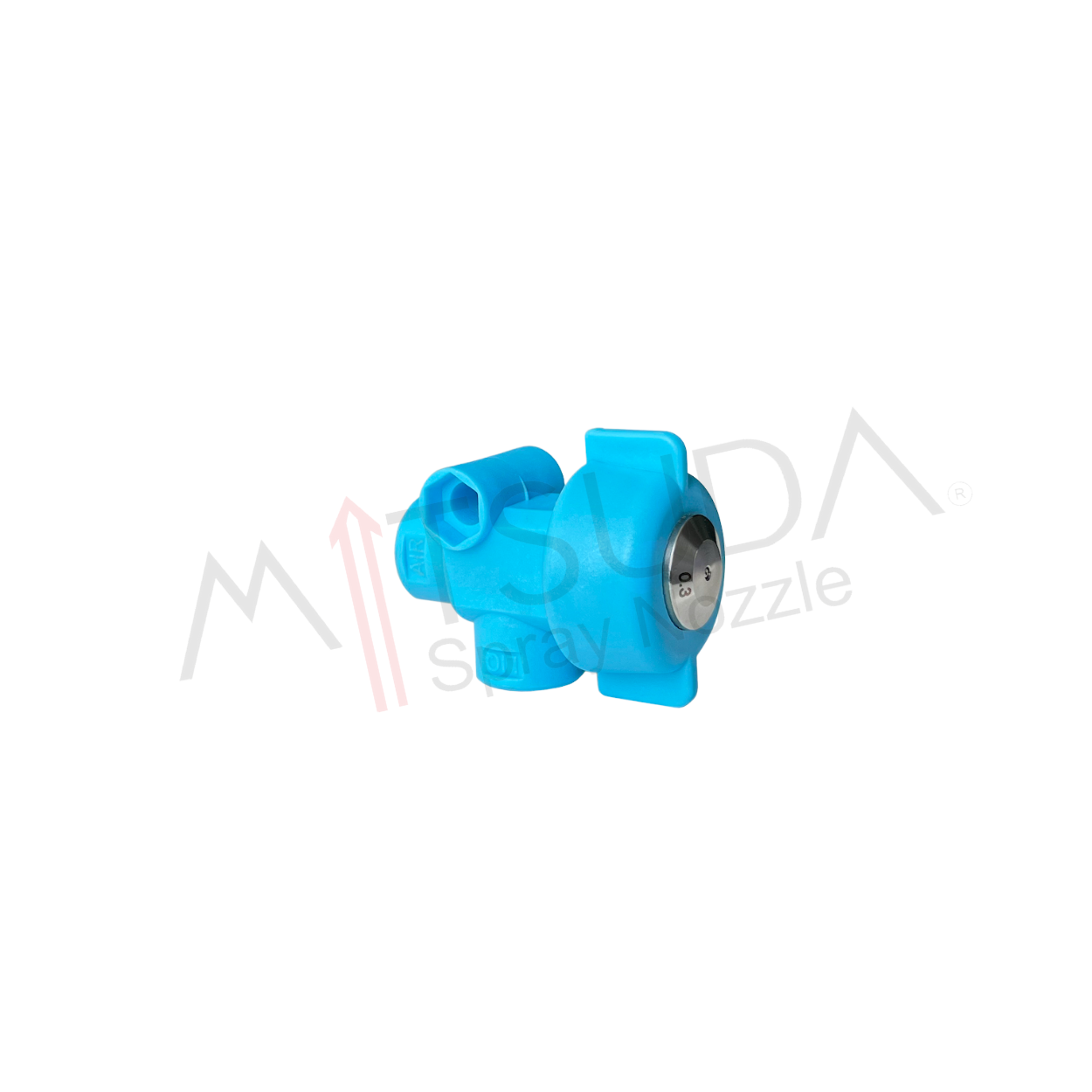

Mini Blue Spray Gun

1/8 Inch Mini Blue Spray Gun: Technical Specifications and Numerical Data

The 1/8 inch mini blue spray gun is a pneumatic fine mist atomizer designed for various industrial applications requiring high precision. These nozzles are particularly effective in achieving fine atomization of liquids, ensuring efficient distribution and creating the correct air/liquid mixture ratios.

Technical Specifications and Numerical Data:

1. Connection Features

Connection Size: 1/8 inch female (1/8" BSPT or NPT)
Connection Type: Female thread connection, quick connect, or threaded connections
Material: Stainless steel, aluminum, plastic (usually a combination of durable plastic and stainless steel)
2. Spray Type and Atomization

Atomization Type: Fine mist atomization
Spray Pattern: Round (circle pattern) or flat fan
Output Shape: Fine mist, atomized small droplets for homogeneous liquid distribution
Output Angle: 60° – 120° (varies depending on the nozzle type)
3. Air/Liquid Mixture

Mixture Type: Air and liquid mixture
Air Pressure: 2 bar – 6 bar (pneumatic air pressure)
Liquid Flow Rate: 0.1 L/min – 1 L/min (varies depending on the liquid flow rate, usually around 0.5 L/min)
Liquid Suction Capacity: 50 mL/min – 500 mL/min (usually varies depending on the liquid's density and viscosity)
4. Spray Performance

Droplet Size: Between 10 µm – 100 µm (provides very fine atomization)
Spray Uniformity: High level of homogeneous atomization, liquid particles are evenly distributed
Spray Distance: 100 mm – 200 mm (depending on the distance between the nozzle and the target)
5. Operating Temperature Range

Liquid Temperature Resistance: -10°C to 100°C (suitable for water-based liquids)
Air Temperature Resistance: -20°C to 80°C (special designs are available for high temperatures)
6. Operating Pressure

Liquid Pressure: 2 bar – 5 bar (varies depending on the liquid spraying capacity of the nozzles)
Air Pressure: 3 bar – 7 bar (recommended working pressure for the pneumatic system)
7. Application Areas

Liquid Suction Function: The nozzle can draw liquid from a reservoir and atomize it.
Usage Areas:*
Washing and Cleaning: Automotive, machinery, medical equipment cleaning
Painting and Coating: Fine painting, coating processes
Cooling and Lubrication: Lubrication and cooling for industrial machines
Fumigation and Spraying: Spraying pesticides and fertilizers in agriculture
8. Advantages

Fine Mist Atomization: Precise atomization ensures even distribution of liquid droplets.
High Efficiency: Effective air and liquid mixing, compatible with all types of liquids and gases.
Energy Efficiency: Provides efficient liquid atomization with low air consumption.
Compact Design: Small size and space-saving design, suitable for use in confined spaces.
9. Assembly and Maintenance

Easy Assembly: Practical assembly with quick connection type
Ease of Maintenance: Easy to clean, low maintenance requirements (usually simple washing with water is sufficient)
10. Material Selection and Durability

Nozzle Material: Stainless steel (for corrosive liquids), plastic (for light applications), aluminum (for medium-level applications)
Durability: High temperature and chemical resistance, especially suitable for industrial and heavy-duty use.
Conclusion

The 1/8 inch mini blue spray gun is used especially in industrial applications with precise atomization requirements. With pneumatic fine mist atomization, it ensures homogeneous distribution of liquids, and high efficiency is achieved at low pressure thanks to the effective atomization of the air/liquid mixture. These nozzles can be used in a range of applications such as cooling, washing, and painting. Advantages such as quick installation, low energy consumption, and high precision make these nozzles ideal for industrial uses.
