Liquid Air Mixing Mist Spray Nozzle

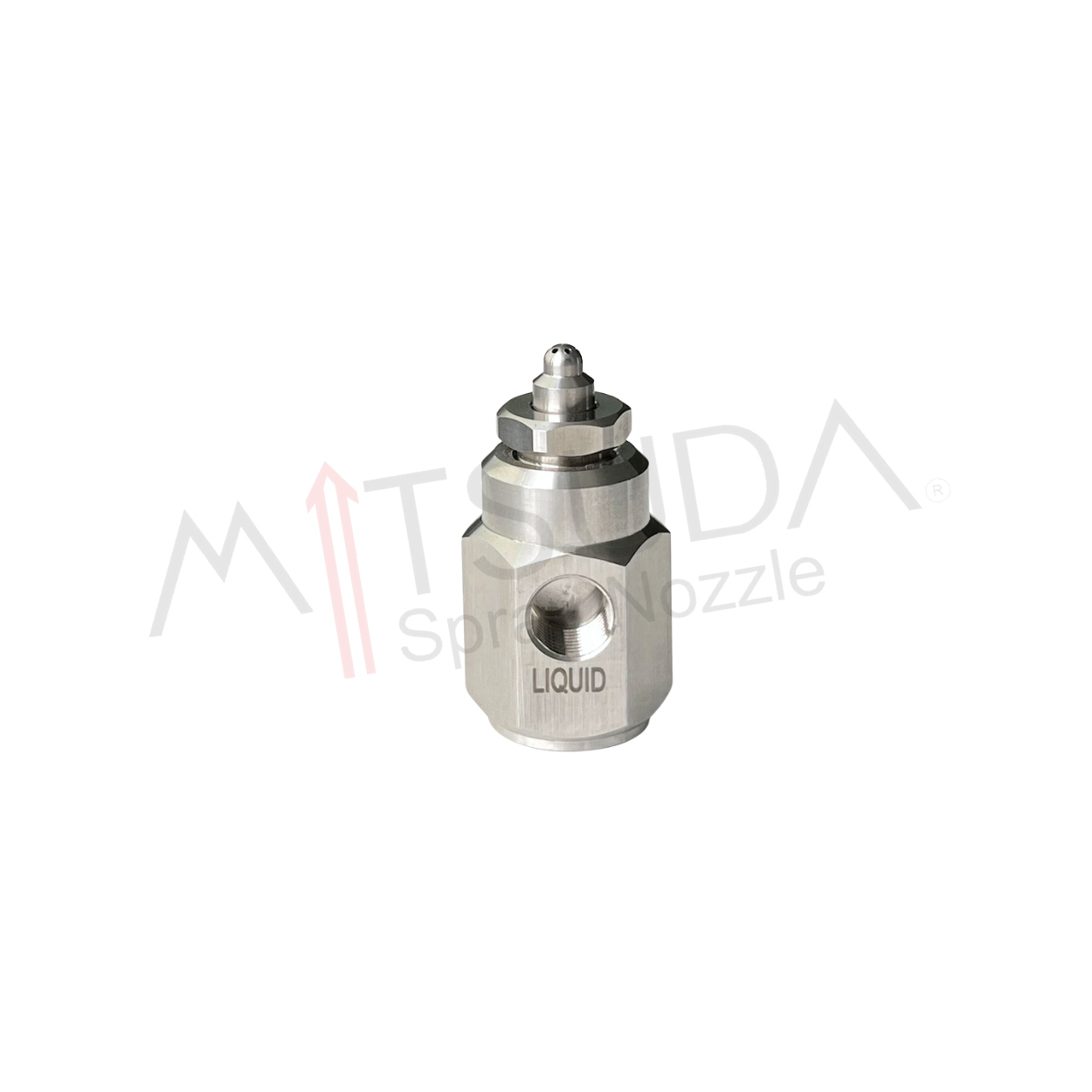

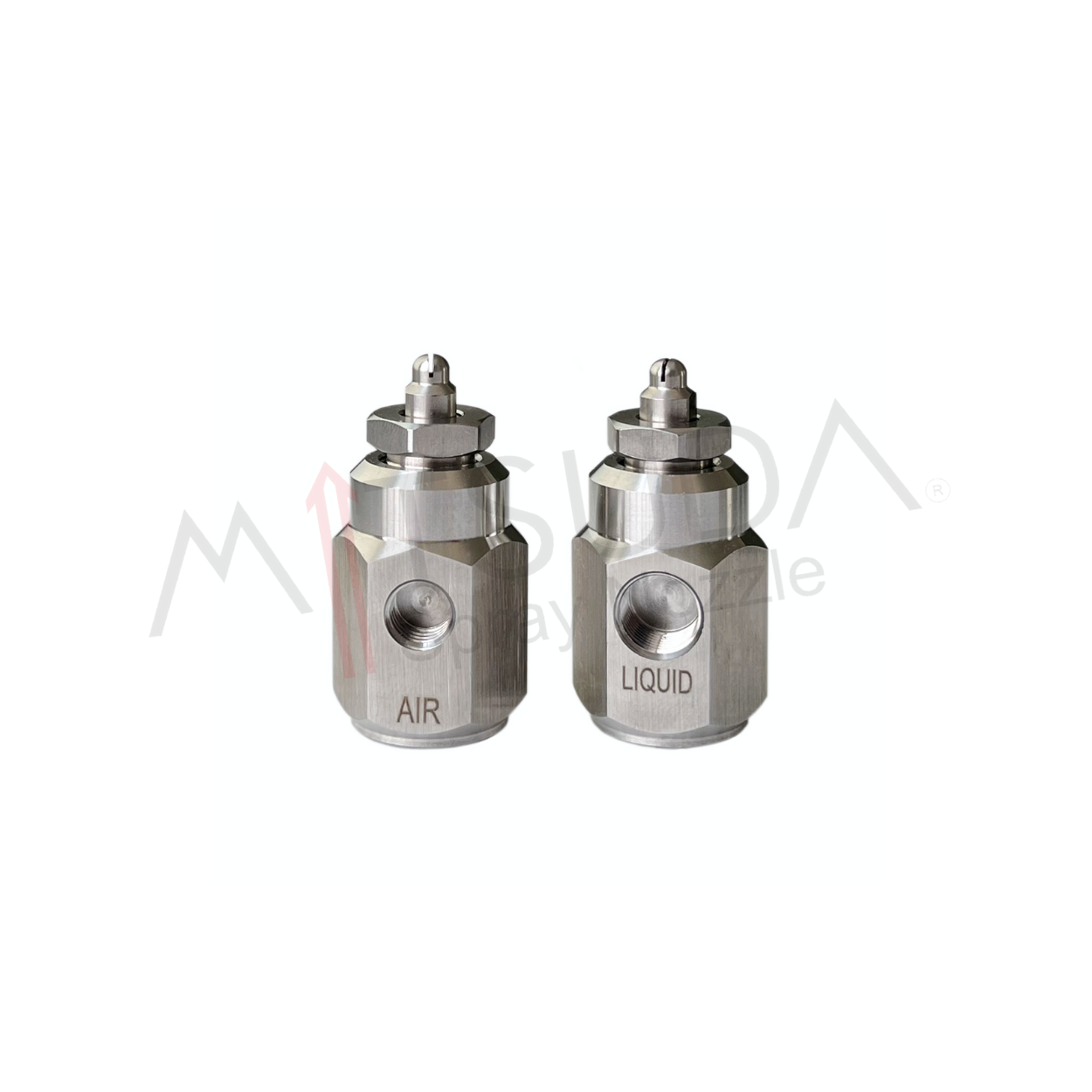

1/8 inch Air Atomizing Stainless Steel Liquid Air Mixing Mist Spray Nozzle
Features:

Connection Type: 1/8 inch female thread
Spray Type: Flat fan or round atomizer spray
Basic Type: Non-adjustable
Material: Stainless steel (typically SS304 or SS316)
Liquid Type: Water, solvents, chemical liquids, oils, and other similar liquids
Application Area: Industrial cooling, humidification, cleaning, spray drying, chemical spraying, paint spraying, heating-cooling systems
Pressure Range: 2 bar - 50 bar (operating pressure varies depending on the model's specifications and application)
Flow Rate Range: 0.2 L/min - 50 L/min (for water-based liquids, may vary depending on the liquid type)
Droplet Size: 10-150 microns (varies depending on the liquid and air mixture, and pressure)
Spray Pattern: Flat fan or round atomized
Spray Mouth Angle: 40° - 120° (this angle depends on the nozzle type and liquid/connection conditions)
Outlet Speed: 10 m/s - 30 m/s (varies depending on the pressure in the system)
Operating Temperature Range: -10°C to 180°C (may vary depending on the selected material and application conditions)

Technical Specifications and Numerical Information:

Usage Areas
Cooling and Humidification Systems:

Air atomized nozzles enable liquids to spread faster in industrial cooling systems. These nozzles are used in cooling towers, air humidification, and industrial cooling applications.
Chemical Spraying and Cleaning:

Stainless steel material is durable in chemical spraying processes. These nozzles are suitable for chemical cleaning, surface washing, and disinfection processes.
Paint Spraying and Coating:

The flat fan or round atomizer design covers large surface areas quickly and evenly in painting and coating processes.
Spray Drying:

These nozzles can be used for spraying and drying processes in the chemical and food processing sectors. They are also suitable for sensitive processes such as drug production.
Industrial Applications:

These nozzles provide liquid atomization used in industrial production lines, the automotive industry, and food production lines.
Advantages
High Durability:

The stainless steel structure is resistant to corrosive liquids and high-temperature conditions. Therefore, it provides long-lasting performance in aggressive environments and harsh conditions.
Efficient Liquid Atomization:

With air atomization, liquids are atomized into small and homogeneous droplets. This provides more efficient cooling, faster drying, and more homogeneous coating.
Easy Installation and Application:

Thanks to the 1/8 inch female thread connection, these nozzles can be easily installed and integrated into existing systems.
Non-adjustable Type:

Non-adjustable nozzles designed to meet fixed atomization requirements offer low maintenance requirements and ease of use.
Recommendations and Considerations
Pressure and Flow Rate Control: These nozzles perform best under high pressure. Properly adjusting the outlet pressure and flow rate will increase the effectiveness of atomization.
Droplet Size: Depending on your application needs, you can use higher pressure for finer droplets. Make the correct droplet size selection according to your needs.
Liquid Type and Application Area: The material selection and durability of the nozzles may vary depending on the liquid type. Stainless steel provides sufficient durability for most industrial liquids.
Conclusion
The 1/8 inch Air Atomizing Stainless Steel Liquid Air Mixing Mist Spray Nozzle provides highly efficient liquid atomization in various areas such as cooling, humidification, chemical spraying, painting, and industrial cleaning. The stainless steel structure offers durable and long-lasting performance. These nozzles are ideal for systems with particularly fixed atomization requirements.
