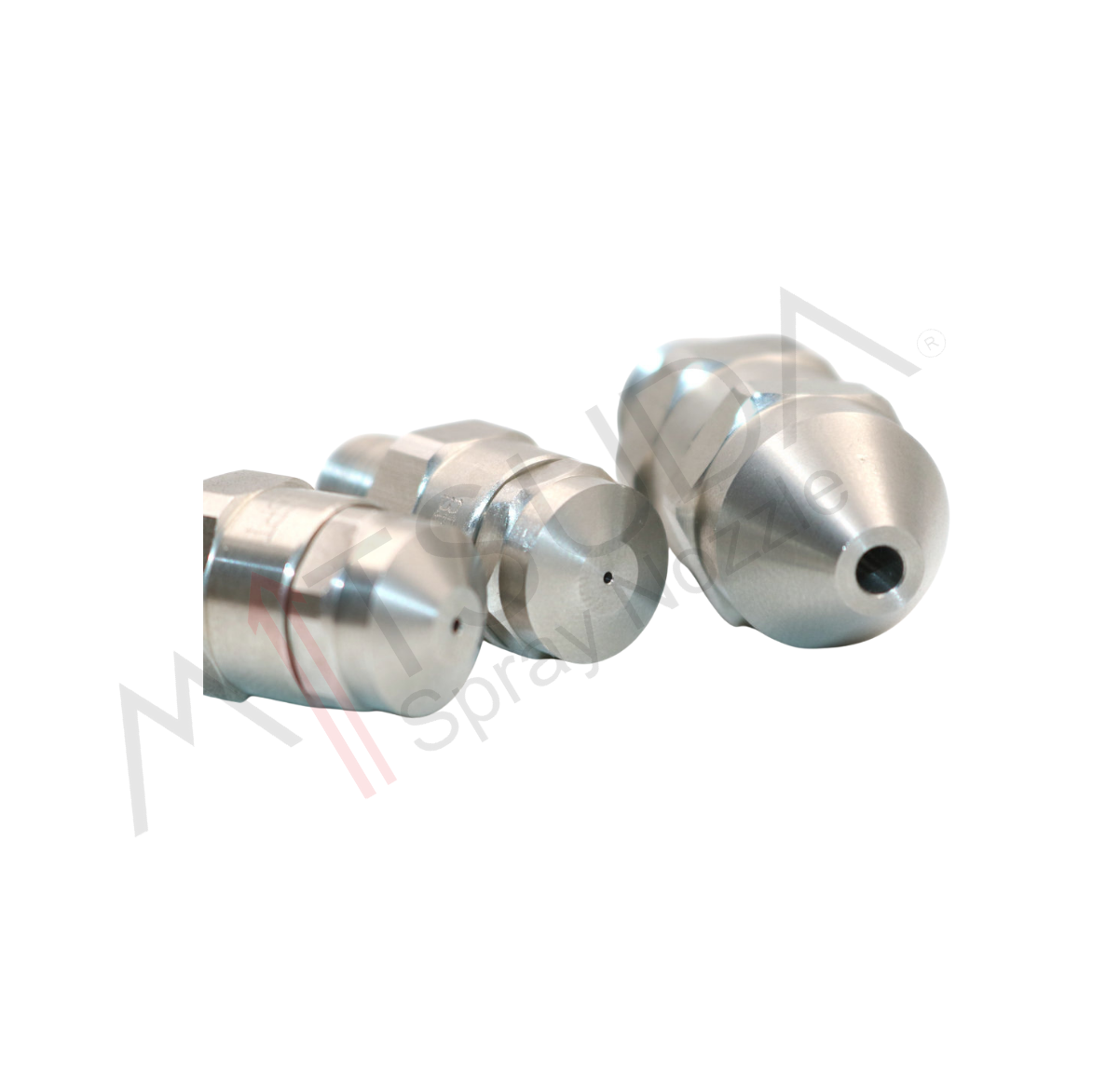

GG Type Full Cone Spray Nozzles: Features, Applications, and Advantages

Introduction

GG Type Full Cone Spray Nozzles are widely used in industrial and agricultural processes that require uniform liquid distribution across a circular impact area. Unlike hollow cone nozzles that spray only at the edges, full cone nozzles provide a solid, dense spray pattern that covers the entire target zone.

The GG type design is especially known for its internal vane structure, which enhances liquid swirling and ensures even droplet distribution. This makes it a preferred choice in cooling, cleaning, dust suppression, and chemical processing.

Key Features of GG Type Full Cone Nozzles

• Spray Pattern: Solid, circular coverage.

• Spray Angles: Available from 30° to 120°.

• Internal Vane Design: Creates a swirling effect for uniform spray.

• Material Options: Stainless steel, brass, polypropylene (PP), and ceramic.

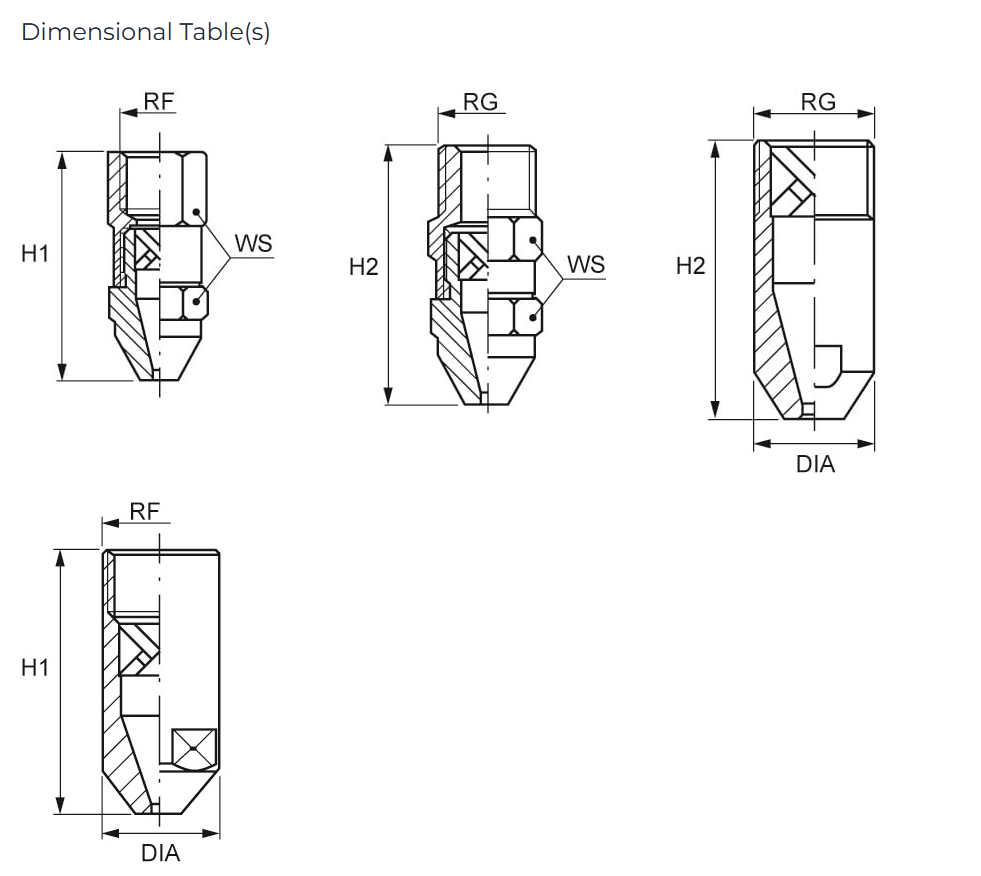

• Connection Sizes: Standard pipe threads such as 1/8", 1/4", 3/8", and 1/2".

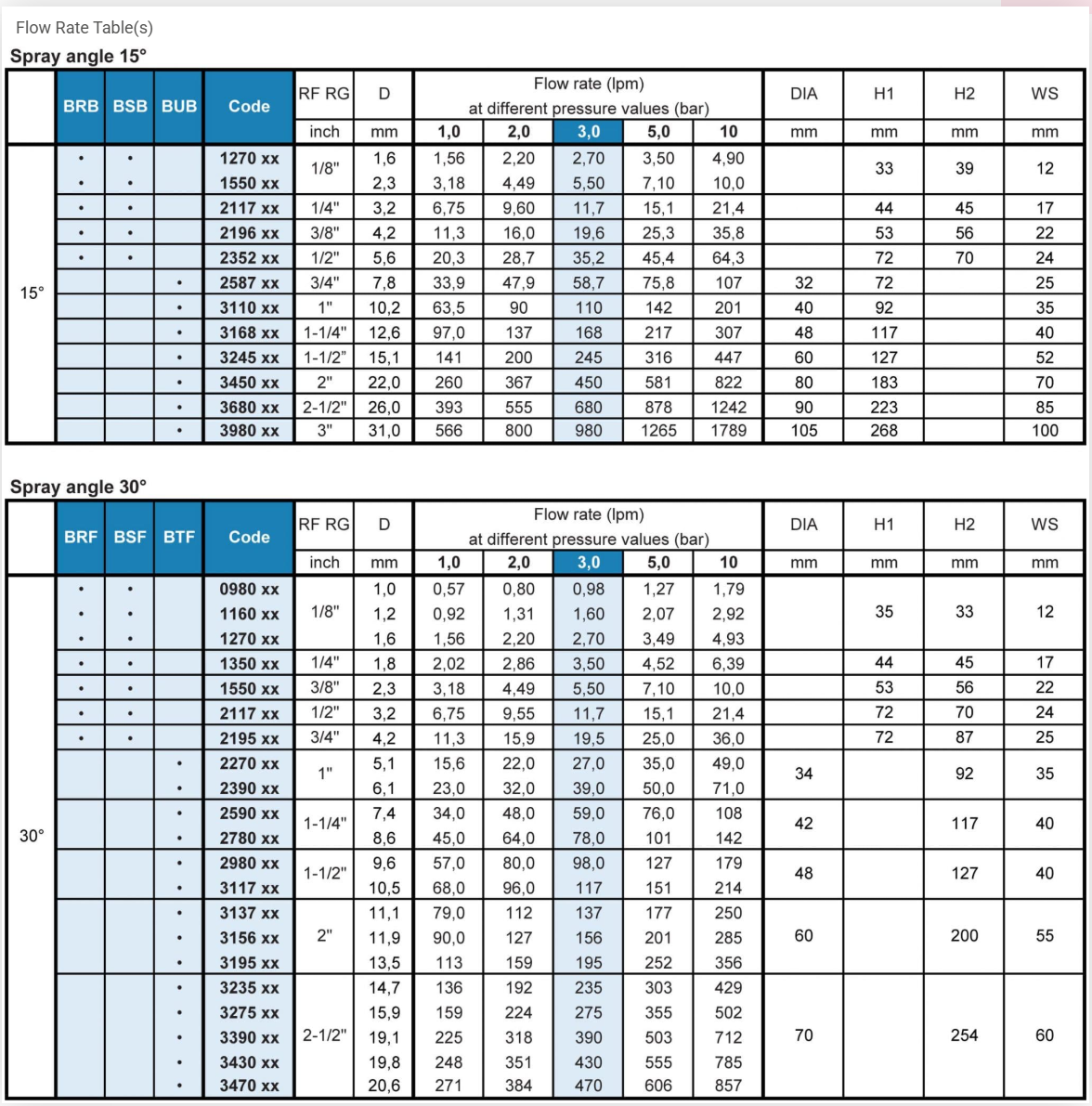

• Flow Rates: Wide range for low, medium, and high-capacity spraying.

Advantages

1. Uniform Coverage – Ensures complete liquid distribution across the spray area.

2. High Impact Force – Medium to large droplets provide strong cleaning and cooling.

3. Durability – Long service life with wear- and corrosion-resistant materials.

4. Versatility – Suitable for water, chemicals, lubricants, and coolants.

5. Efficiency – Reduces overspray and minimizes waste.

Industrial Applications

Cooling Systems

• Cooling of hot steel, glass, and plastics.

• Heat treatment in metalworking.

Industrial Cleaning

• Tank washing, conveyor belt cleaning, and machinery rinsing.

• Removing dust, oil, or residue from surfaces.

Dust Suppression & Environmental Control

• Reducing airborne dust in cement plants, mining, and power stations.

• Odor control in waste management facilities.

Chemical & Surface Treatment

• Applying coatings, lubricants, or chemicals evenly.

• Pre-treatment before painting and finishing.

Agriculture

• Fertilizer and pesticide spraying.

• Irrigation with uniform water coverage.

How GG Type Full Cone Nozzles Work

The internal vane of a GG nozzle forces the liquid into a swirling motion before it exits through the orifice. This creates uniform droplets distributed across a circular spray pattern, producing a dense, full cone spray that ensures consistent coverage.

Selecting the Right Nozzle

When choosing a GG Type Full Cone Nozzle, consider:

• Desired spray angle (narrow for higher impact, wide for coverage).

• Operating pressure of your system.

• Droplet size requirements (medium or coarse).

• Flow rate capacity needed for your process.

• Material compatibility with the liquid being sprayed.

Conclusion

GG Type Full Cone Spray Nozzles are a reliable and efficient solution for industries that require consistent spray coverage and strong performance. With their vane-based design, durable materials, and wide range of options, they are essential in cooling, cleaning, dust suppression, agriculture, and chemical processing.

By selecting the correct spray angle, flow rate, and material, businesses can achieve optimized spraying performance, reduce costs, and improve efficiency.
