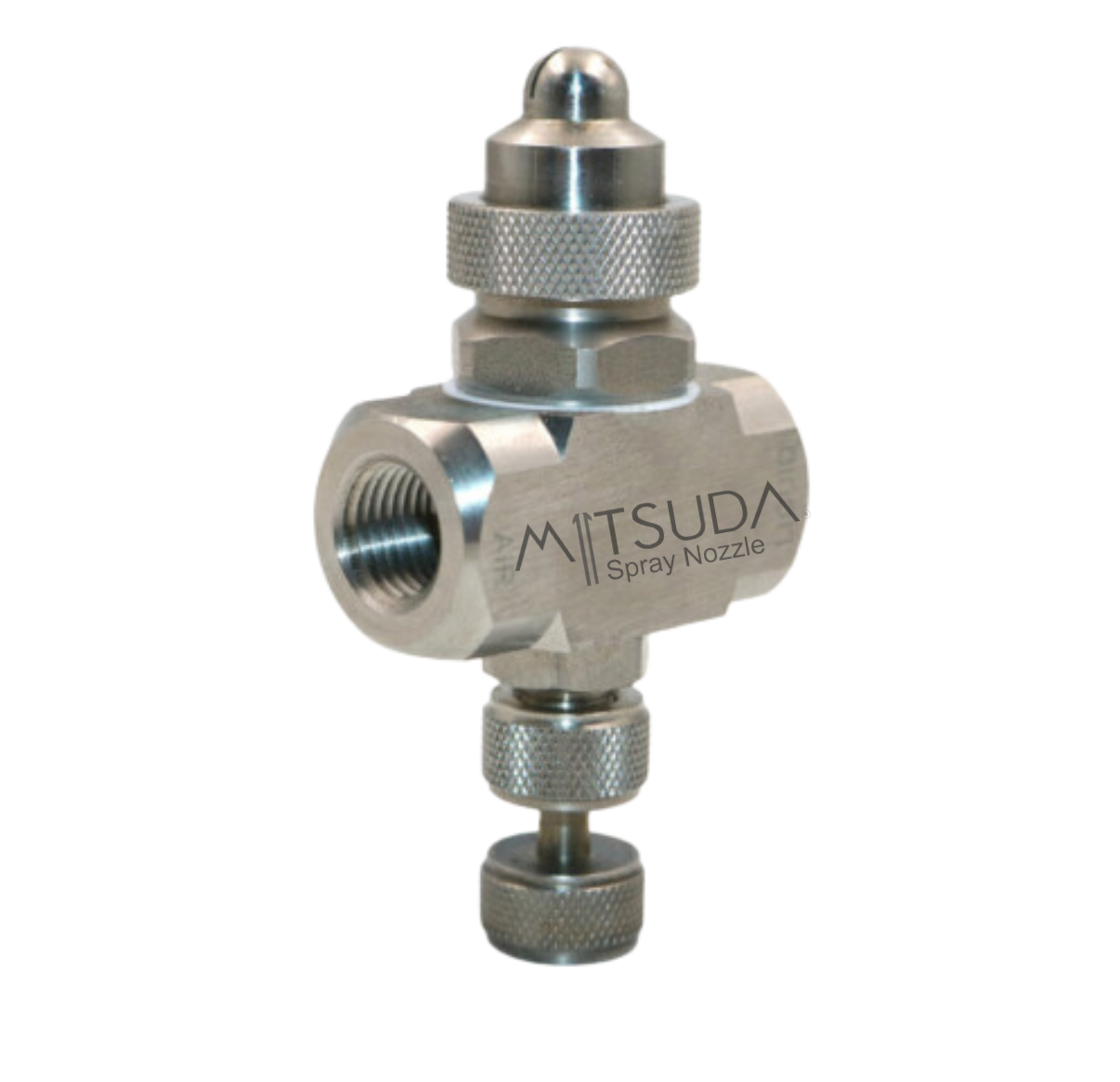

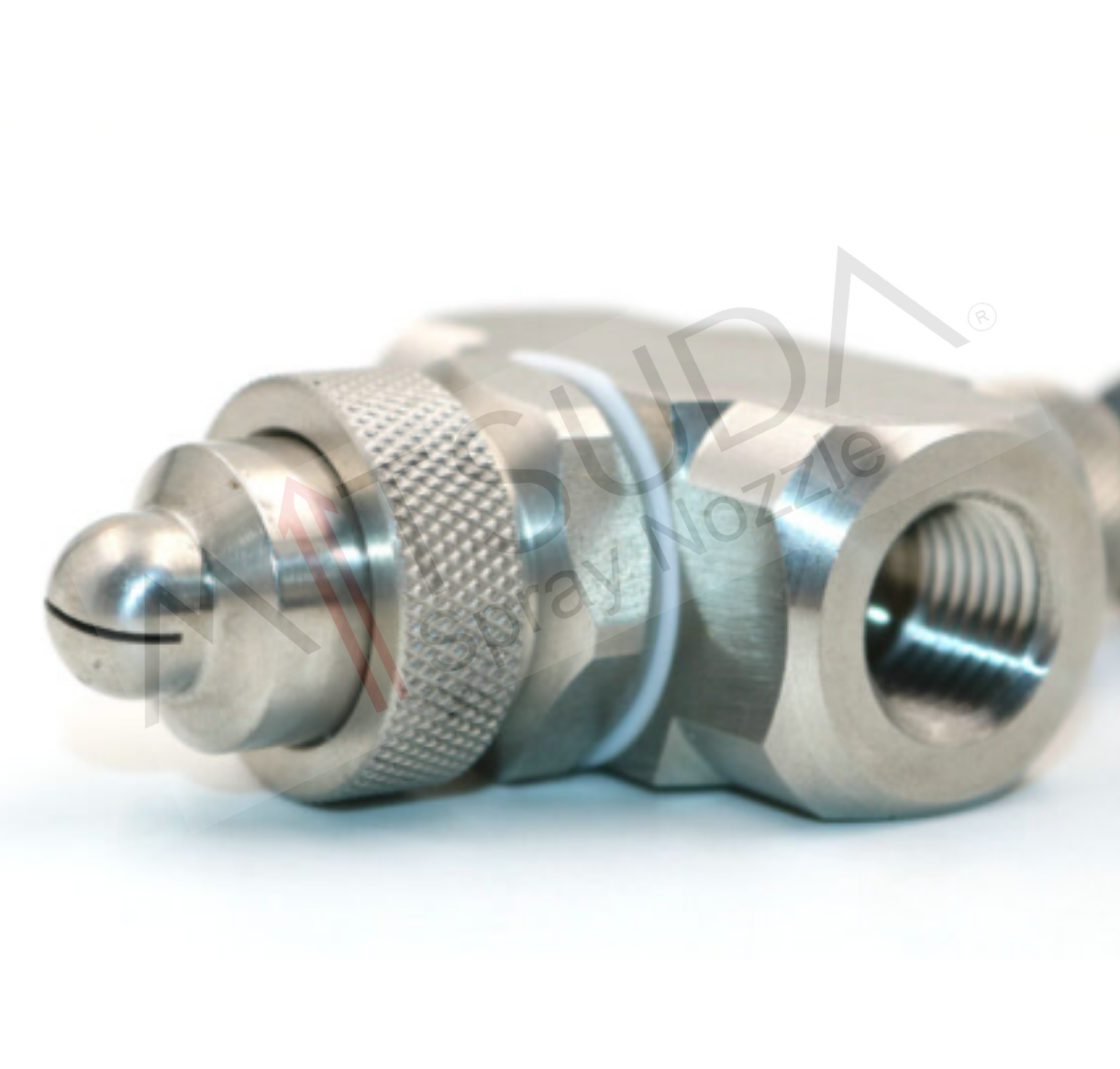

Fan spray atomizing nozzles are a type of spray nozzle that produces a flat, fan-shaped spray pattern. They are widely used in various industrial applications where even and controlled liquid distribution is crucial.
How they work:
Liquid Flow: Liquid is fed into the nozzle under pressure.
Internal Mixing: Within the nozzle, the liquid stream is mixed with air or another fluid (depending on the nozzle design). This mixing process can involve various mechanisms like impinging jets or swirling flow.
Atomization: The high-velocity fluid stream shears the liquid, breaking it down into a fine mist of droplets.
Spray Pattern Formation: The resulting spray forms a flat, fan-shaped pattern due to the nozzle's internal design.
Key Characteristics:
Flat Fan Spray Pattern: Produces a wide, even spray pattern, ideal for covering large areas.
Versatility: Suitable for a wide range of applications, including:
Painting and Coating: Applying even and consistent coatings.
Cooling: Cooling processes in manufacturing and industrial settings.
Humidification: Increasing humidity levels in various applications.
Cleaning: Washing and cleaning surfaces.
Agricultural Applications: Applying pesticides and fertilizers.
Controllable Spray Angle: The spray angle can often be adjusted to suit specific application requirements.
Fine Atomization: Can produce very fine droplets, depending on the nozzle design and operating conditions.
Types of Fan Spray Atomizing Nozzles:
Air-Assisted Nozzles: Utilize compressed air to atomize the liquid.
Two-Fluid Nozzles: Use a high-velocity stream of gas (often air) to shear the liquid stream.
Rotary Atomizers: Utilize a rotating disk or cup to shear the liquid.
Applications:
Paint Spraying: Applying paints, coatings, and adhesives.
Cooling: Cooling processes in metalworking, electronics, and other industries.
Humidification: Increasing humidity in industrial and agricultural settings.
Cleaning: Washing and cleaning surfaces in various industries.
Agricultural Applications: Applying pesticides, fertilizers, and other agricultural chemicals.
Advantages:
Even Coverage: Provides consistent and uniform coverage over a wide area.
High Efficiency: Can achieve high atomization efficiency with minimal air consumption.
Versatility: Suitable for a wide range of applications and fluids.
Considerations:
Clogging: Can be prone to clogging, especially with viscous liquids or those containing solids.
Maintenance: Regular cleaning and maintenance are essential for optimal performance.
Noise: Can generate significant noise levels, depending on the operating conditions.
