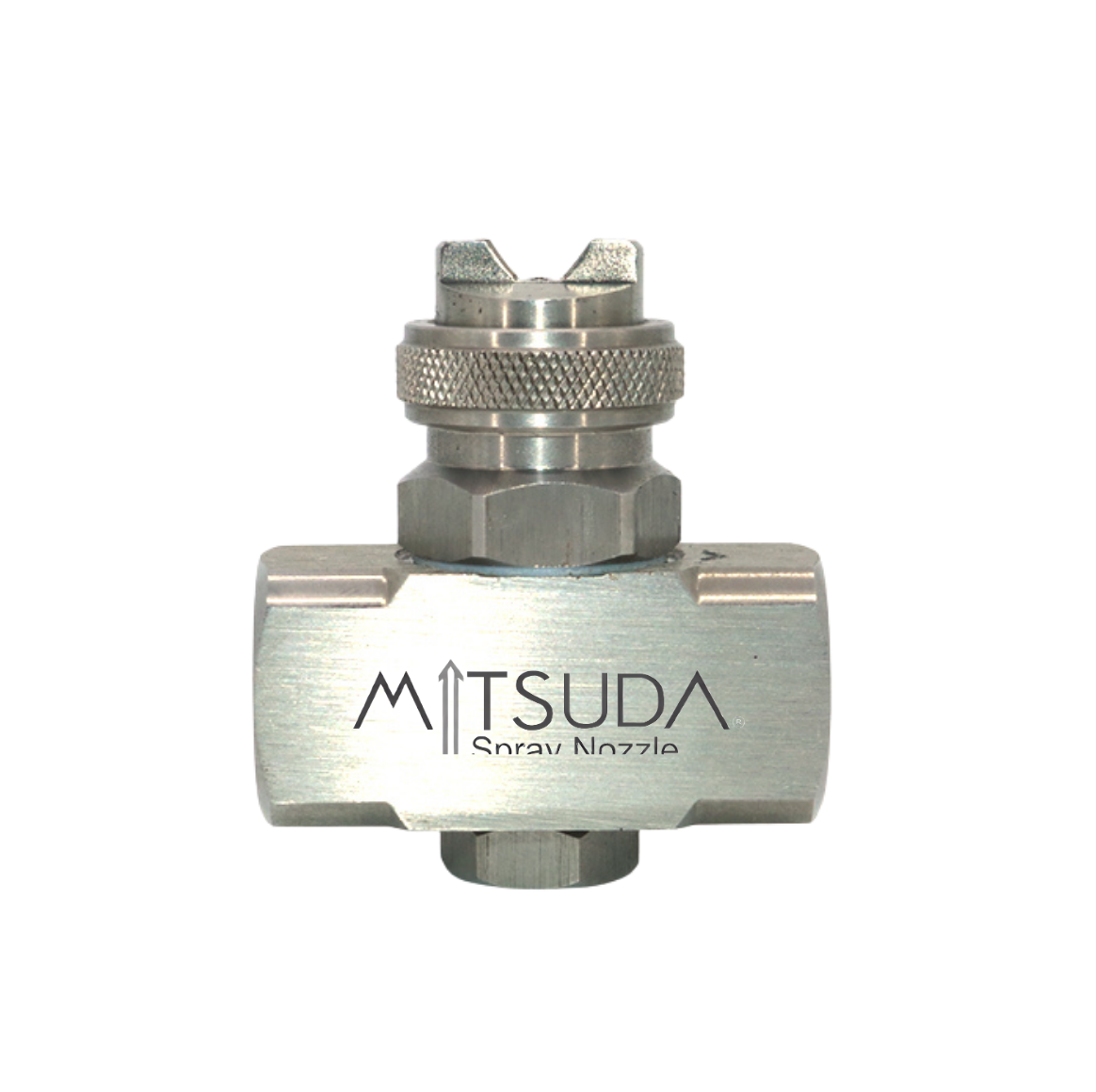

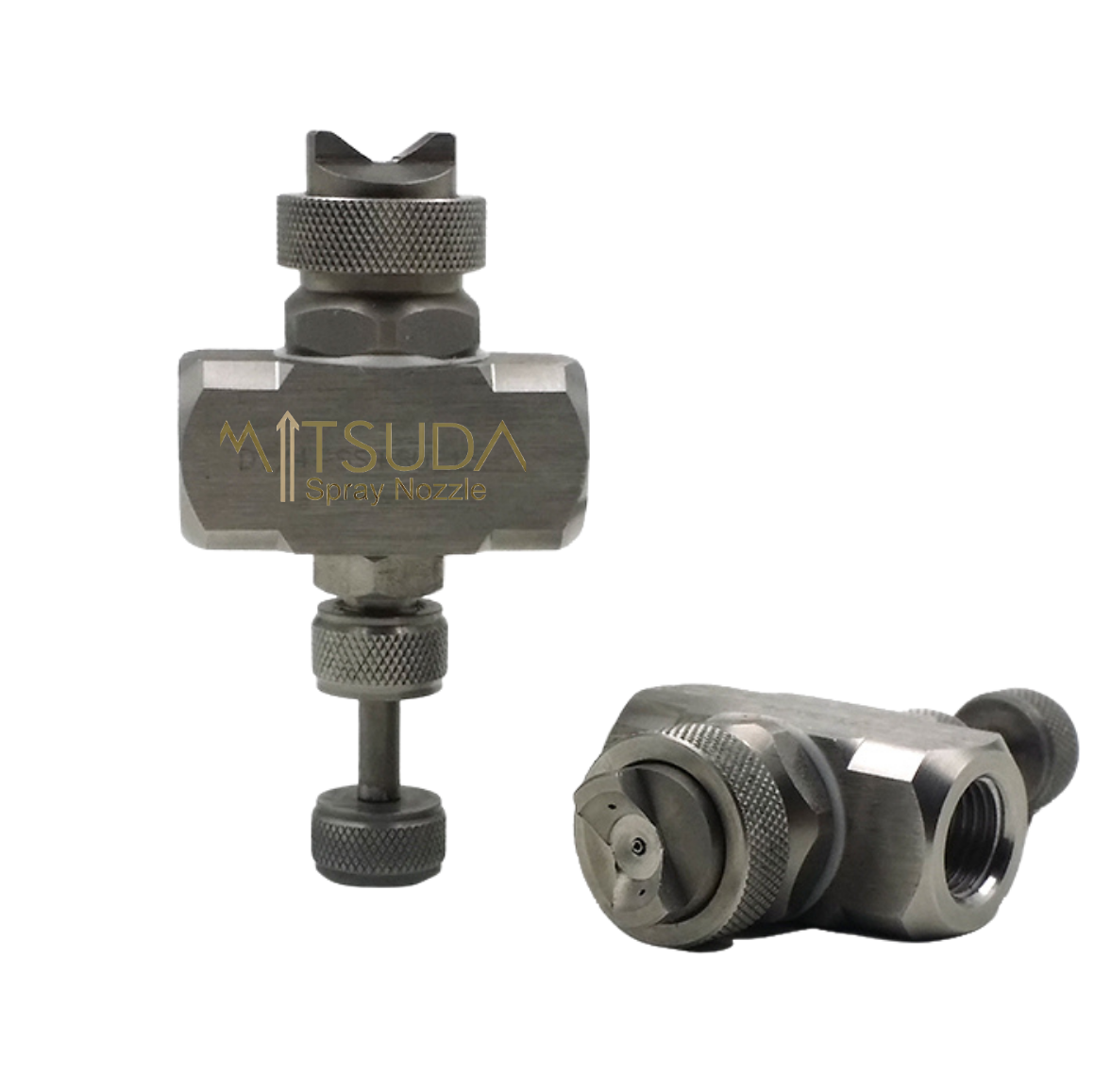

Internal Mix Fan Atomizing Nozzles
Internal mix fan atomizing nozzles are a type of spray nozzle that utilizes compressed air to atomize a liquid into a fine mist. Unlike external mix nozzles where air and liquid meet outside the nozzle, in internal mix nozzles, the air and liquid streams are mixed within the nozzle itself before exiting.
How they work:
Liquid and Air Supply: Both liquid and compressed air are supplied to the nozzle under pressure.
Internal Mixing: Within the nozzle body, the liquid and air streams are mixed together. This mixing process can involve various mechanisms, such as impinging jets or swirling flow.
Atomization: The high-velocity air stream shears the liquid, breaking it down into very fine droplets.
Spray Pattern: The resulting spray typically forms a flat fan pattern, covering a wide area.
Advantages of Internal Mix Fan Atomizing Nozzles:
Fine Atomization: Produces extremely fine droplets, often in the micrometer range.
Efficient Atomization: High atomization efficiency with minimal air consumption.
Precise Control: Allows for precise control over droplet size and spray pattern by adjusting air and liquid pressures.
Versatility: Suitable for a wide range of liquids and applications.
Reduced Overspray: Minimizes waste and improves material utilization.
Applications of Internal Mix Fan Atomizing Nozzles:
Paint Spraying: Applying even and consistent coatings in various industries.
Cooling: Cooling processes in manufacturing and industrial settings.
Humidification: Increasing humidity levels in various applications.
Chemical Processing: Spraying and mixing chemicals.
Agricultural Applications: Applying pesticides and fertilizers.
Key Considerations:
Clogging: Can be prone to clogging, especially with viscous liquids or those containing solids.
Maintenance: Regular cleaning and maintenance are crucial for optimal performance.
Noise: Can generate significant noise levels depending on the operating conditions.
Selection Criteria:
Application Requirements: Specific needs for droplet size, spray pattern, and flow rate.
Fluid Properties: Viscosity, surface tension, and other characteristics of the liquid.
Operating Pressure: Required air and liquid pressures for optimal performance.
Material Compatibility: Compatibility of the nozzle material with the fluid and the environment.
