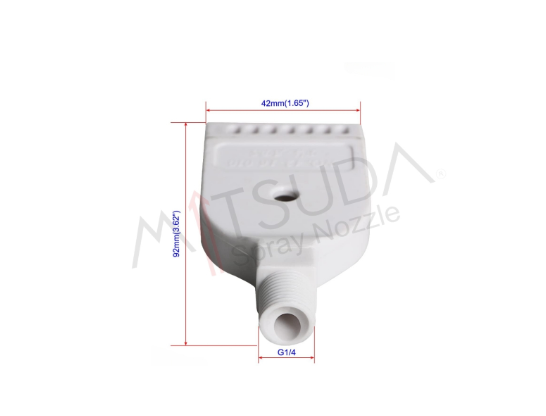

A 42mm dual-row air nozzle with a 1/4" connection is a specialized component commonly used in industrial applications to focus and direct airflow at a specific intensity and direction. As the name suggests, this nozzle has a diameter of 42mm and distributes airflow in two rows, providing a wider coverage area. The 1/4" connection point allows for easy integration into various pneumatic systems.
Nozzle Features and Function
Dual-Row Design: Distributes airflow over a wider area for more uniform coverage.
High Air Velocity: Accelerates airflow for efficient cooling, drying, or cleaning.
Durable Material: Typically constructed from durable materials like stainless steel, providing resistance to wear and corrosion.
Adjustable Angles: Available in various angles to adjust the direction of airflow.
Versatility: Suitable for a wide range of industrial applications, including cooling, drying, cleaning, and blowing.
Applications of the 42mm Dual-Row Air Nozzle 1/4"
Electronic Cooling: Prevents overheating of sensitive electronic components.
Paint Drying: Ensures rapid and even drying of surfaces after painting or coating.
Plastic Manufacturing: Cools molded parts and prevents warping.
Dust Removal: Removes dust from production lines to maintain a clean working environment.
Air Curtains: Creates air barriers at doorways to prevent the entry of insects, dust, and other contaminants.
Nozzle Selection and Considerations
Air Pressure: Choose a nozzle compatible with your system's air pressure.
Airflow Rate: Select the appropriate nozzle size based on the required airflow rate.
Material: Choose a material resistant to the chemicals and temperatures in your working environment.
Angle: Select an angle that directs the airflow as needed.
Connection Type: Ensure the connection type (e.g., 1/4" NPT, BSP) matches your system.
Conclusion
The 42mm dual-row air nozzle with a 1/4" connection is a valuable tool for controlling and directing airflow in industrial applications. When selected correctly, it can significantly improve efficiency and energy savings in various processes.
Note: This information provides a general overview. For specific applications, it is recommended to consult with an expert.
Additional Information:

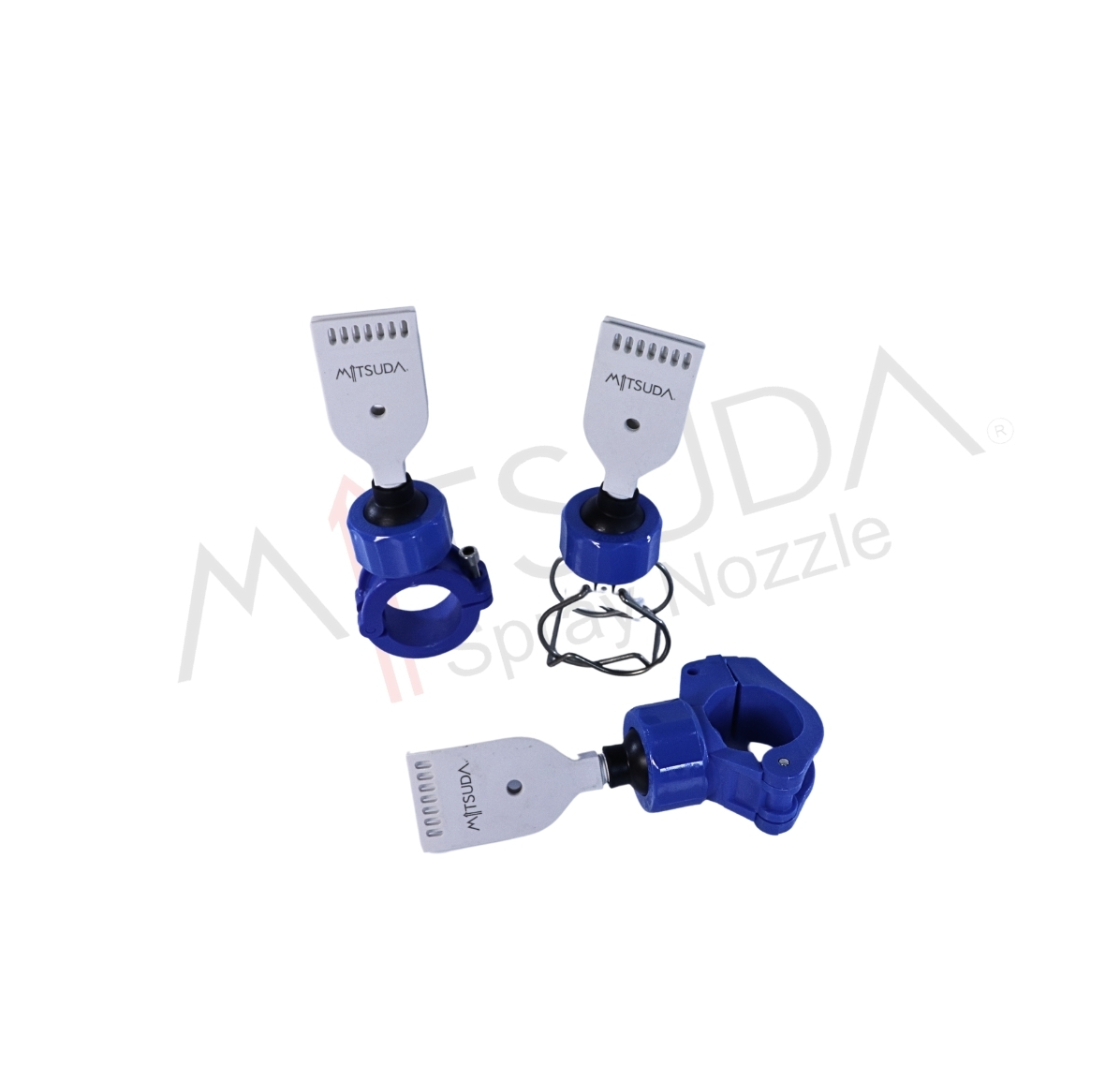

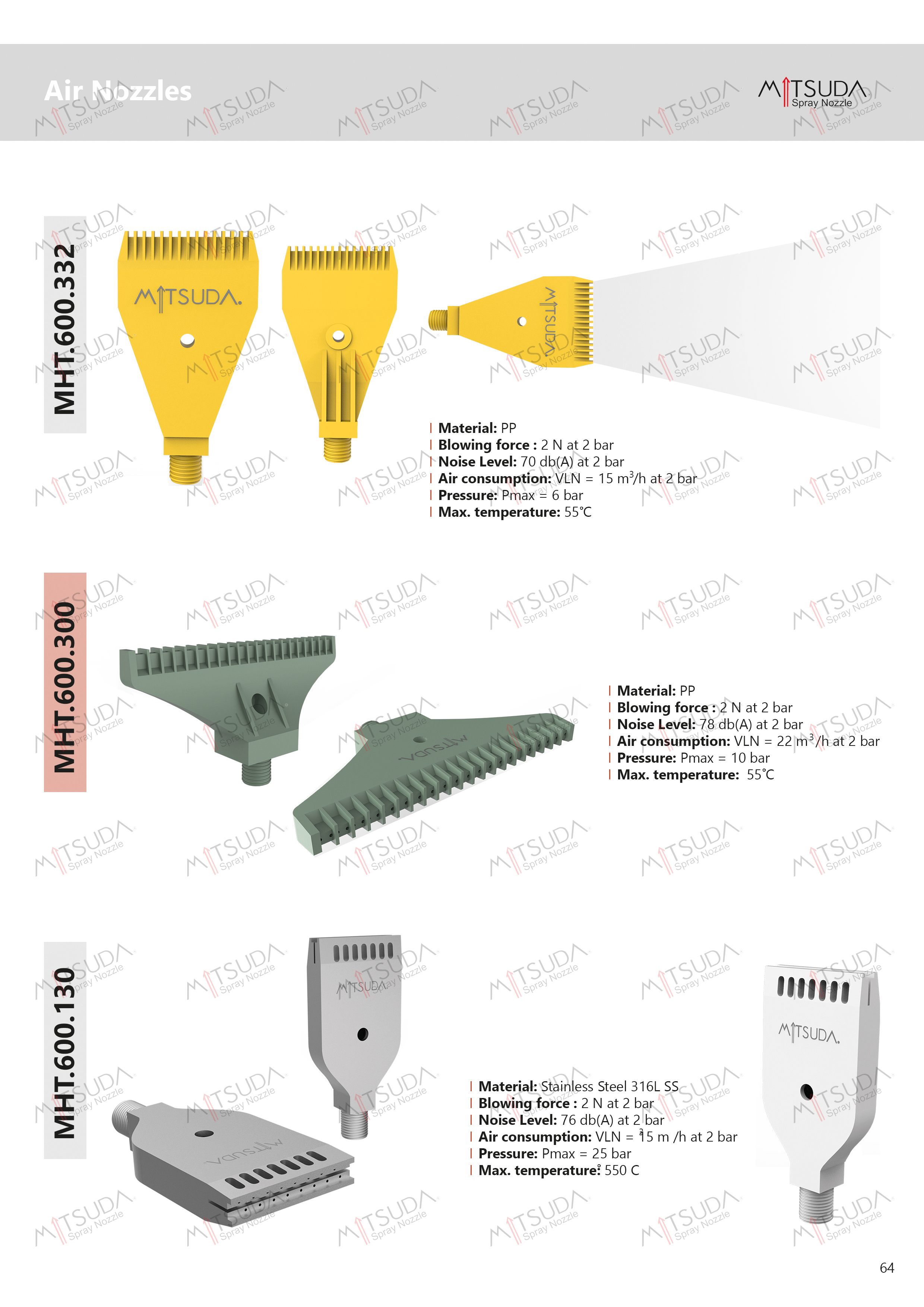

Images of various 42mm dual-row air nozzle models
Cross-sectional view of a 42mm dual-row air nozzle

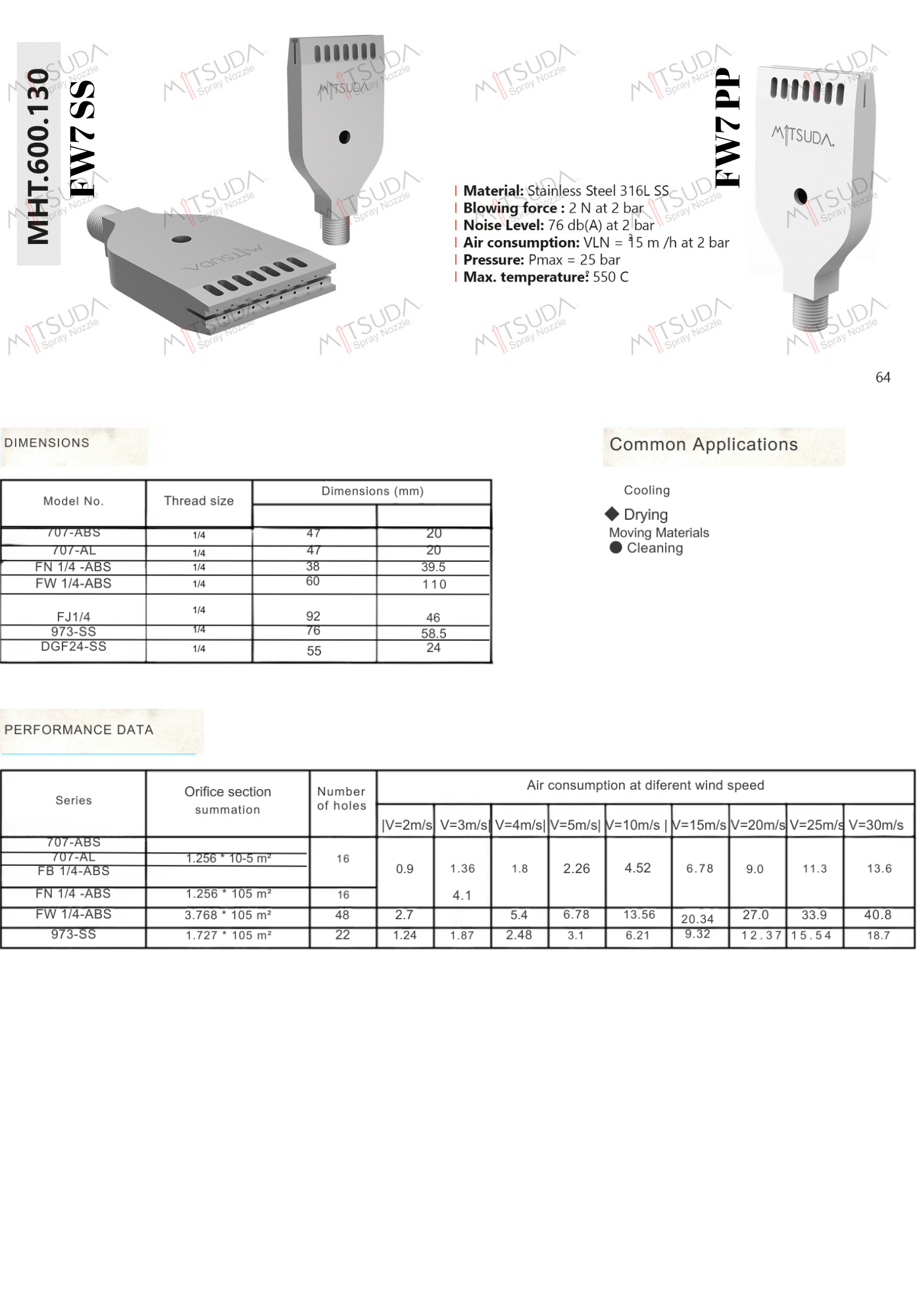

| Technical Document | Download |
