Bottle Cleaning Spray Nozzle

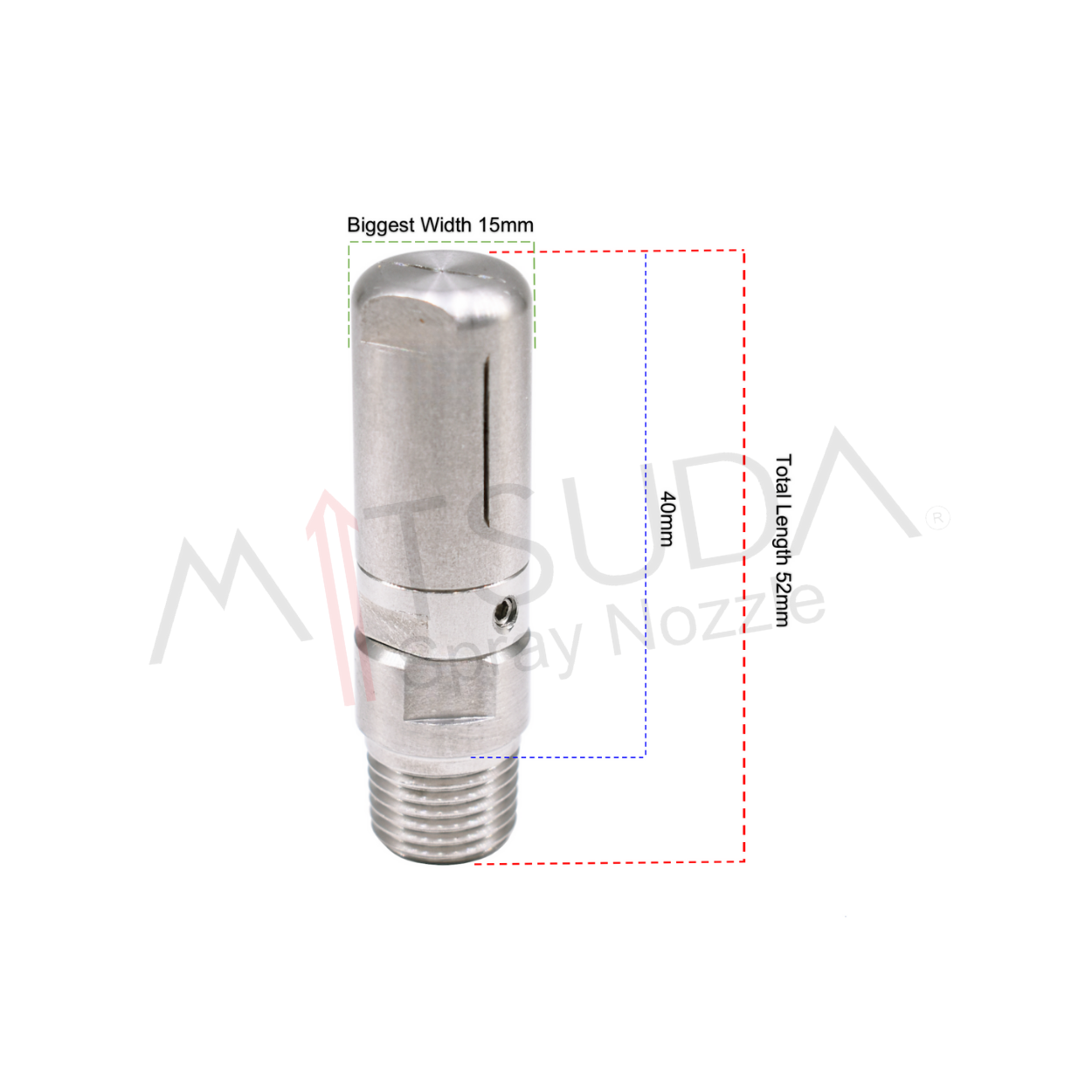

1/4 Wine Bottle Cleaning Spray - 15mm Width Stainless Steel 360 Degree Rotating Small Tank Washing Spray Jet Nozzle

Product Description:

The 1/4 wine bottle cleaning spray jet nozzle is a small tank washing nozzle made of stainless steel material that can rotate 360 degrees. This nozzle provides high efficiency in cleaning wine bottles and other beverage bottles. Thanks to its rotating structure, it provides an even and comprehensive cleaning of bottle surfaces, offering an efficient and space-saving cleaning solution. With a 15 mm width range, it ensures maximum cleaning in bottles of appropriate sizes.

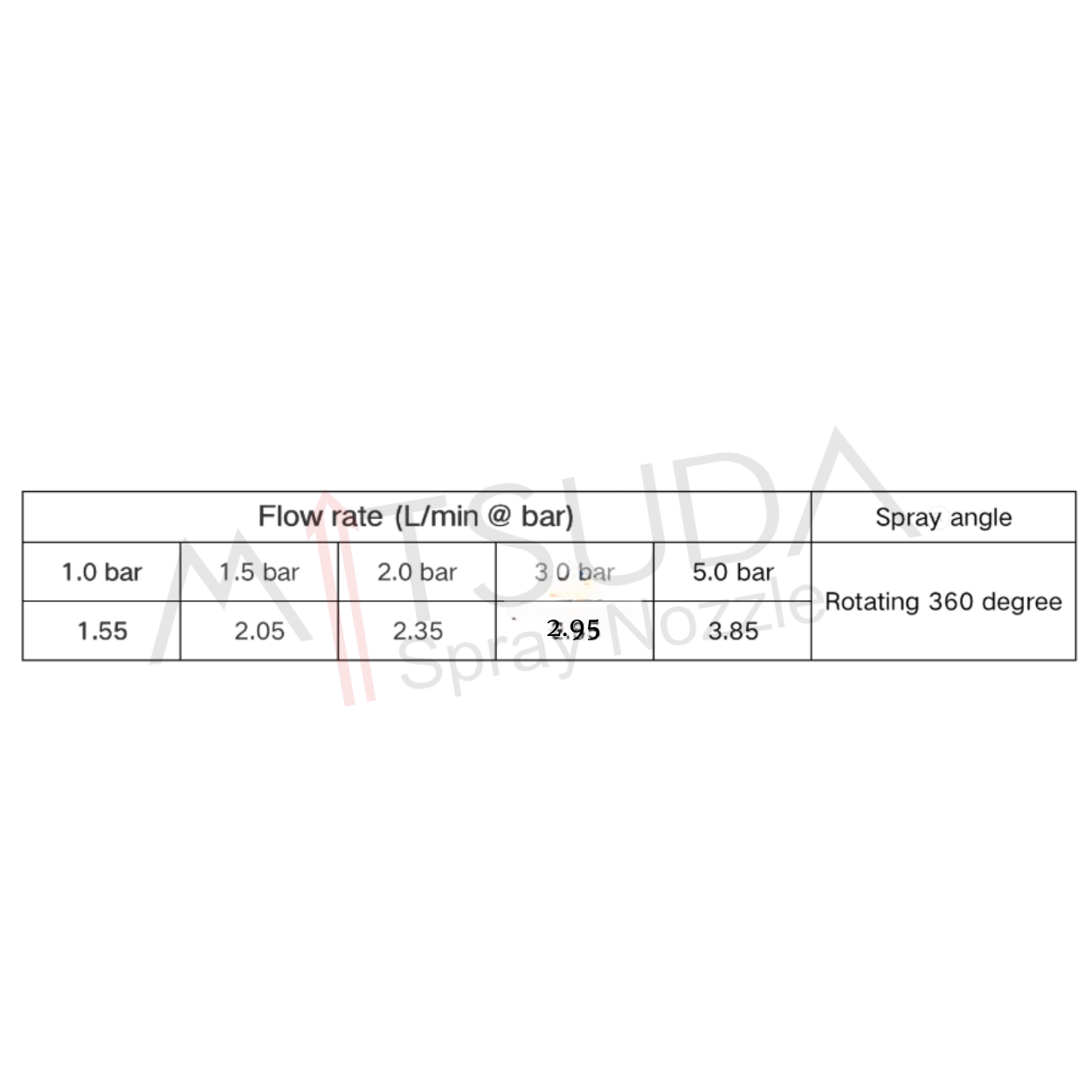

Technical Specifications and Numerical Data:

Usage Areas:

Wine Bottle Cleaning:

This nozzle is specially designed for wine bottles and other beverage bottles. The 360-degree rotating structure effectively cleans every area inside the bottle, providing a perfect cleaning without leaving any residue.
Food and Beverage Industry Cleaning:

It provides efficient cleaning in applications such as bottle cleaning, storage tanks, and coverage areas in production lines in the food and beverage sector.
Tank and Storage Cleaning:

Provides automatic cleaning for small tanks and storage areas, accelerates cleaning with efficient and effective liquid distribution.
Chemical Cleaning:

It can also be used in industrial systems where cleaning with chemical liquids or solvents is required.
Advantages:

360 Degree Rotating System:

Thanks to its full rotational movement feature, it provides equal and effective cleaning to every part of the bottle surface. Even narrow areas inside the bottle can be cleaned.
Highly Efficient Atomization:

Thanks to the flat fan and conical atomization, liquid is spread homogeneously on the inner surfaces of the bottle, providing higher efficiency with less liquid.
Stainless Steel Construction:

Stainless steel (SS304 or SS316) material provides high durability and resistance to corrosive liquids. It provides high performance even in long-term use.
Compact Design:

Its small and efficient structure allows it to be easily installed even in confined spaces, providing maximum cleaning with minimal space requirement.
Adjustable Flow Rate:

The adjustable flow rate feature provides perfect atomization according to different liquid types and offers liquid savings.
Recommendations and Considerations:

Pressure and Flow Rate Settings:

It is recommended to operate within the pressure range (2-6 bar). You can make the atomization finer by using high pressure, but the pressure limits to which the system is resistant should be considered.
Liquid Viscosity:

If you are using viscous liquids, it is necessary to adjust the flow rate and pressure settings accordingly. Higher flow rates may be more efficient for low viscosity liquids.
Droplet Size:

Depending on the liquid type, droplet sizes can be adjusted, which affects how the liquid will be atomized on the surface and the cleaning speed.
Cleaning Continuity:

These nozzles can be integrated into automatic cleaning systems and provide continuous cleaning in industrial cleaning lines.
Conclusion

The 1/4 Wine Bottle Cleaning Spray provides high efficiency in wine bottles, beverage industry and food processing applications with its stainless steel, 360-degree rotating and efficient atomization features. Its compact structure offers effective cleaning by taking up little space, and excellent cleaning results are achieved with low liquid consumption. Thanks to its adjustable flow rate and flat fan atomization, homogeneous cleaning can be provided on all kinds of surfaces.
