Nozzle
What is a Nozzle?
A nozzle is an industrial component used to direct and atomize liquids, gases, or vapors in a specific way. These devices play a critical role in ensuring that liquids are evenly distributed over a specific area in various applications and in increasing the efficiency of processes. Nozzles enable more efficient heat transfer, cooling, washing or spraying by allowing liquids to be broken down into small droplets.
Nozzles are used in many industries and are produced in different designs and specifications for all types of liquid flow. It is used in a very wide range of applications such as chemistry, food processing, automotive, agriculture, cooling systems.
Types of Nozzles
Nozzles can be of different types depending on their working principles and application areas. Some of the most common nozzle types are explained below:

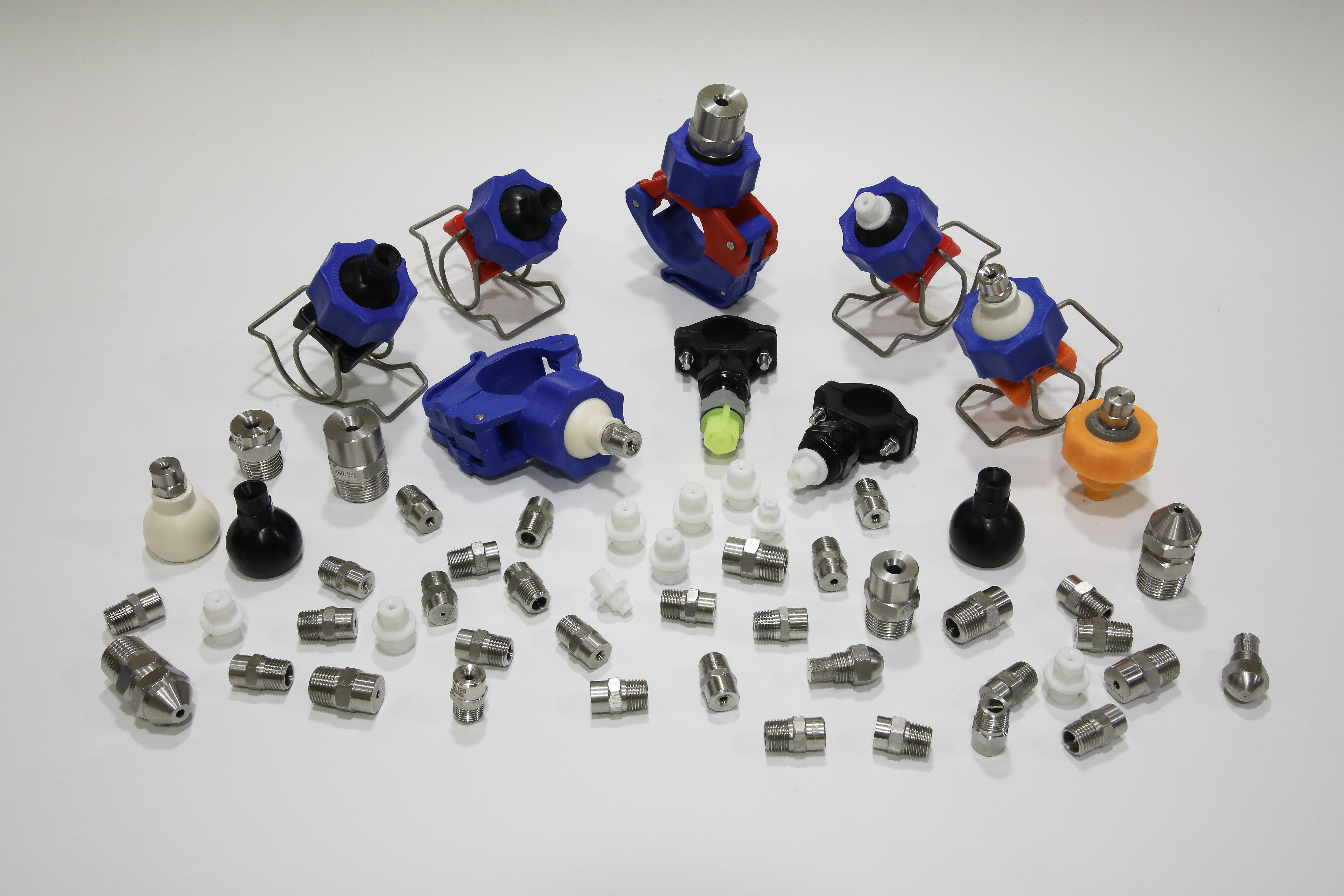

Full Cone Nozzle:
These types of nozzles spray the liquid in a wide cone shape. It is commonly used in cooling, cleaning, evaporation, and some industrial applications.
Spray Angle: It is usually between 60° – 120°.
Application: It is used in applications such as cooling, liquid distribution, water treatment.

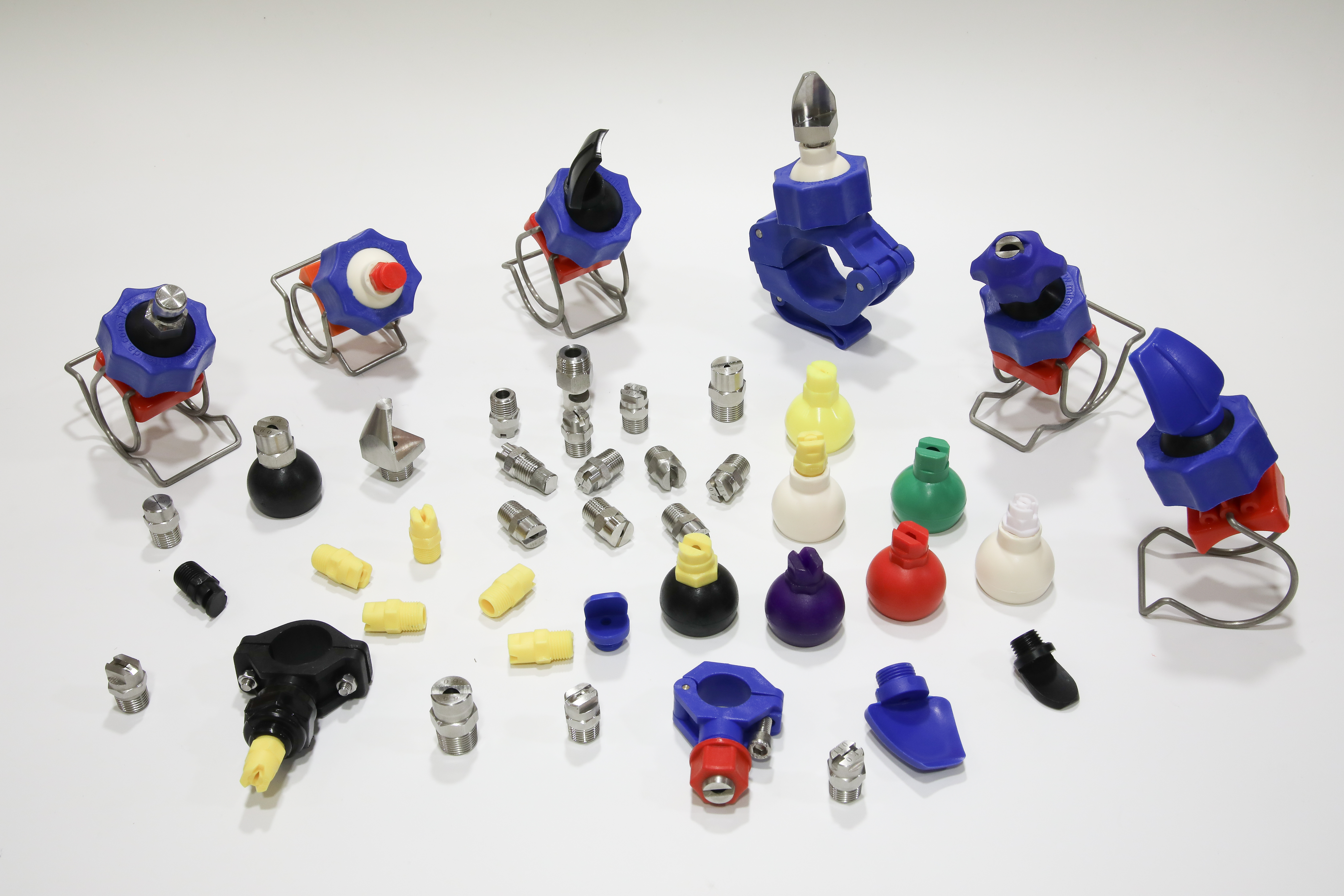

Flat Fan Nozzle:
Flat fan nozzles spray the liquid over a wide, flat area. These nozzles are widely used especially in irrigation and fertilization systems in agriculture.
Spray Angle: Varies between 30° – 110°.
Application: It is used in processes such as agriculture, cleaning, spray painting.
Hollow Cone Nozzle:
Hollow cone nozzles atomize the liquid in a circular way but leave a gap in the center. These nozzles usually allow the water to be distributed more homogeneously.
Spray Angle: Can be between 40° – 90°.
Application: It is used in processes such as irrigation in agriculture, industrial cleaning and cooling.
Air Atomizing Nozzle:
These nozzles atomize the liquid into fine droplets by mixing it with air. It provides highly efficient atomization and is usually used in cooling, drying and painting applications.
Spraying: Very fine droplets are obtained.
Application: It is used in sensitive applications such as paint spraying, cleaning, drying.
Single Fluid Nozzle:
Single fluid nozzles atomize only one liquid. Flow rate, pressure and droplet size vary depending on the liquid type.
Application: Water spraying, cleaning, liquid distribution.
Basic Functions and Features of Nozzle
Atomization: The nozzle atomizes liquids or gases by breaking them down into small droplets. This atomization allows liquids to evaporate faster or spread more evenly on target surfaces.
Flow Rate and Pressure: Nozzles require a certain pressure and flow rate to ensure the correct flow of liquid or gas. These parameters directly affect the effectiveness and performance of the nozzle.
Droplet Size: Different nozzle types produce different droplet sizes. For example, an air atomizing nozzle produces very fine droplets, while a full cone nozzle can produce larger droplets. The droplet size is optimized according to the requirements of the application.
Spray Angle: Nozzles spray the liquid at different angles. For example, a flat fan nozzle spreads the liquid over a wide, flat area, while a full cone nozzle is effective in wider areas by distributing the liquid in a wider cone shape.
Material Selection: Nozzles can be produced from different materials depending on the type of liquid or gas used. Materials such as stainless steel, aluminum, plastic (PVC, PP) are used for nozzles that are corrosion resistant, resistant to temperature changes and chemical effects.
Usage Areas and Applications of Nozzle
Agriculture and Irrigation:
Spray nozzles used in agriculture are quite common in processes such as irrigation, fertilization, pesticide spraying. Nozzles are used for proper distribution of water and efficient irrigation in agriculture.
Industrial Cleaning:
In industrial facilities, factories, machines and production lines are frequently cleaned. Nozzles are used in equipment cleaning and circulation processes with high-pressure water.
Cooling Systems:
In metal processing, automotive and power plants, cooling nozzles are used to prevent systems from overheating. These nozzles ensure that water is distributed effectively in wider areas.
Painting and Coating:
Air atomizing nozzles are used to obtain a thin and homogeneous coating in painting and coating processes.
Food Industry:
In the food industry, nozzles are used for washing fruits and vegetables, proper distribution of liquids and disinfection. At the same time, homogeneous distribution of liquids is ensured, increasing food quality.
Nozzle Selection and Application Tips
Application Needs: Which type of nozzle to choose depends on the intended use. Full cone nozzles can be preferred for large areas, flat fan nozzles for smooth and controlled liquid flow.
Pressure and Flow Control: It is important to make the correct flow rate and pressure adjustments for the nozzle to operate efficiently. Otherwise, there may be low efficiency and poor atomization.
Droplet Size: For the liquid atomization to be correct, the droplet size must be suitable for the application. For example, small droplets provide high evaporation and large droplets carry more liquid.
Conclusion
Nozzles play a vital role in many industrial and commercial applications by ensuring that liquids or gases are properly atomized. Used in a wide range of applications from agriculture to industry, nozzles can increase efficiency and quality with the right design and feature selection. Choosing the right nozzle type for all kinds of industrial needs improves performance and reduces costs.
